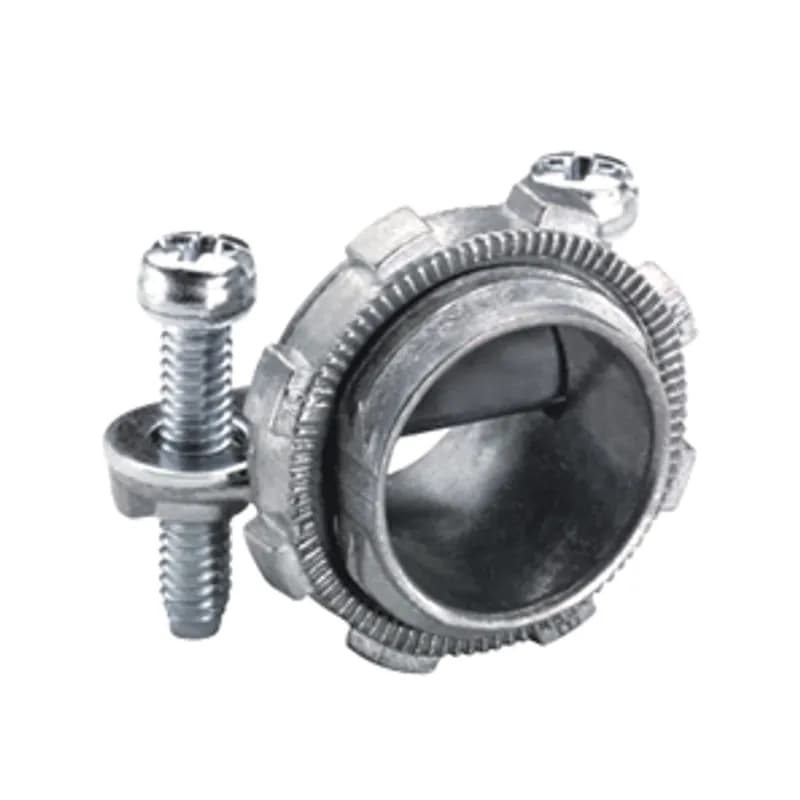

NSi Industries 650-DC2 - Connector, Strap, Two Screw, Zinc Die Cast, Oval Cable, Size K.O. 1/2 Inch
NSI Industries

650-DC2

UPC: 781747156501

Documents & Media
Specification SheetVideo ClipWarranty

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Overview

The NSi Industries 650-DC2 is a zinc die-cast connector designed for secure oval cable connections, featuring a two-screw design for a tight and durable hold. Engineered with a size knockout of 1/2 inch, it accommodates a wide range of oval cable applications across industrial, electrical, and mechanical installations. The zinc die-cast construction provides excellent corrosion resistance, ensuring long-lasting performance even in demanding environments. Its precise engineering allows for easy installation and a secure fit, minimizing the risk of cable disconnection during operation. The 650-DC2 is ideal for manufacturing, construction, and maintenance applications where reliability is critical. This connector is manufactured by NSi Industries in the US, with the SKU 650-DC2 and UNSPSC code 39121419. The two-screw design enhances stability by distributing clamping force evenly, while the oval cable compatibility ensures compatibility with standard cable shapes. The 1/2-inch size knockout allows for precise cable entry, reducing the need for additional adapters or modifications.
  • Durable zinc die-cast construction for corrosion resistance
  • Two-screw design ensures a secure and reliable cable connection
  • 1/2 inch size suitable for various oval cable applications
  • Designed for industrial, electrical, and mechanical installations
  • Manufactured by NSi Industries in the USA

Specifications

Angle
180 Deg
Application
For connecting nonmetallic cable to box or enclosure. It can be used for one or two cables.
Connector Type
Two Screw, Strap Type
Finish
Ball burnish
Material
Zinc Die Cast
Size
3/8 IN
Special Features
Furnished with 2-way Phillips/Slotted Head Screw
Standard
UL, CSA
Trade Size
3/8 IN
Type
Connector
Package Weight (Imperial)
0.048 L
Package Weight (Metric)
0.022 kg

Similar Products

650-HD2

Standard: UL

Trade Size: 0.375 in

Material Quality: Zinc Die Cast

651-DC2

Standard: UL

Connector Type: Single Screw, Strap Type

653-DC2

Conductor Range: 8/2 - 6/4

Number Of Conductors: 1 Cable

Size: 1/2 IN

655-DC2

Conductor Range: 6/3 - 4/3

Number Of Conductors: 1 Cable

Size: 3/4 IN

657-DC2

Conductor Range: 4/3 - 1/3

Number Of Conductors: 1 Cable

Size: 1 IN

650-12C5

Application: Cable Installation

Type: Patch Panel

Number Of Ports: 12

You May Also Be Interested In

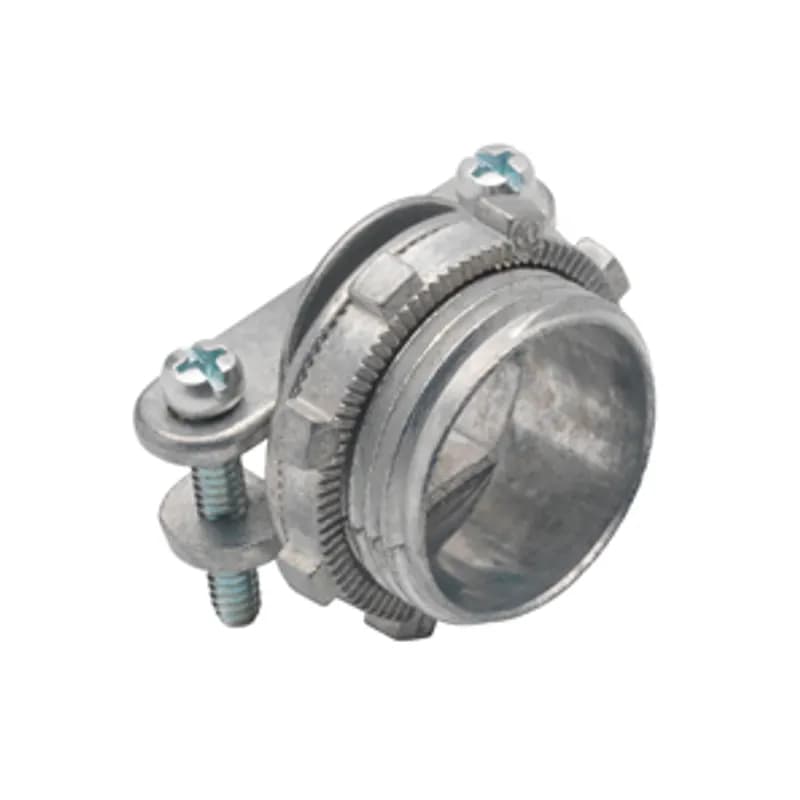

Connector, Strap, Two Screw, Zinc Die Cast, Oval Cable, Size K.O. 3/4 Inch

670-DC2

Connector, Strap, Two Screw, Zinc Die Cast, Oval Cable, Size K.O. 1 Inch

672-DC2

Connector, Strap, Two Screw, Zinc Die Cast, Oval Cable, Size K.O. 1 1/2 Inch

675-DC2

Connector, Strap, Two Screw, Zinc Die Cast, Oval Cable, Size K.O. 1 1/4 Inch

674-DC2

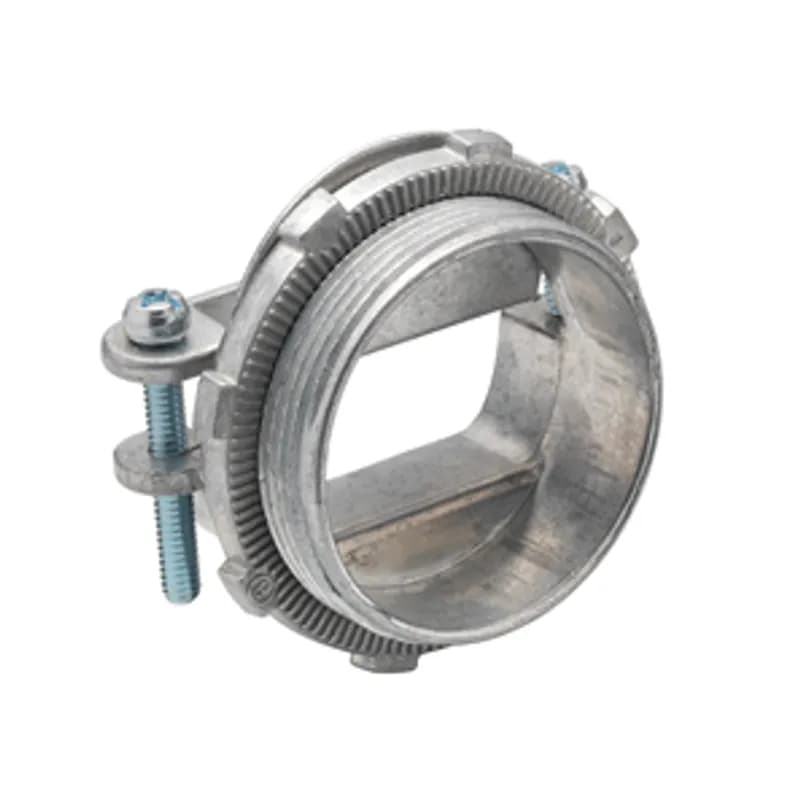

Connector, Strap, Two Screw, Zinc Die Cast, Oval Cable, Size K.O. 2 Inch

676-DC2

Frequently Asked Questions

What are the dimensions of the 650-DC2?

The dimensions are: A: 1-5/16 in, B: 3/8 in, C: 3/8 in, D: 13/16 in, E: .625 in, F: 15/16 in.

What is the application of the 650-DC2?

The 650-DC2 is used for connecting nonmetallic cable to a box or enclosure and can accommodate one or two cables.

What is the trade size of the 650-DC2?

The trade size of the 650-DC2 is 1/2 inch.

What material is the 650-DC2 made from?

The 650-DC2 is made from zinc die cast material.

What certifications does the 650-DC2 have?

The 650-DC2 is certified under CSA, UL, and meets NEMA standards.
