NSi Industries 565-DC2 - Connector, Strap, Two Screw, Zinc Die Cast, Size K.O. 1/2 Inch
NSI Industries

565-DC2

UPC: 781747155658

Documents & Media
Specification SheetVideo ClipWarranty

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Overview

The NSi Industries 565-DC2 is a zinc die-cast strap connector designed for secure, vibration-resistant connections in industrial electrical systems. This two-screw design ensures stable mounting and reliable strain relief for cables and conduits with a 1/2-inch knockout size. The zinc die-cast construction provides superior corrosion resistance and mechanical strength, making it ideal for harsh environments including manufacturing plants, commercial buildings, and utility installations. Engineered for compatibility with standard 1/2-inch conduit knockouts, the 565-DC2 connector is commonly used in electrical panel installations, junction boxes, and equipment enclosures. Its robust design prevents loosening under vibration, reducing maintenance needs and improving system reliability. The connector's zinc die-cast material meets industry standards for durability in both indoor and outdoor applications, ensuring long service life with minimal degradation. Unlike generic connectors, this NSi Industries product features a precision-machined strap design that distributes clamping force evenly across the cable or conduit. The two-screw configuration allows for easy adjustment during installation while maintaining consistent pressure. With a UNSPSC code of 39121419 and US manufacture, this connector meets professional electrical installation requirements.
  • Zinc die-cast construction for corrosion resistance and durability
  • Two-screw strap design for secure cable/conduit mounting
  • Compatible with 1/2-inch knockout size applications
  • Vibration-resistant connection reduces maintenance needs
  • US-manufactured to professional electrical standards

Specifications

Angle
180 Deg
Application
Recommended cable types for connecting 14/2 (.38" 0 min) to 10/3 (.53" 0 min) armored or metal clad cable to box or enclosure. MC/MCI-A/HCFMCI-A
Conductor Range
14/2 (.38" 0 min) to 10/3 (.53" 0 max)
Connection Type
Two Screw Strap
Connector Type
Two-Screw, Strap Type
Finish
Ball burnish
Material
Zinc Die Cast
Number Of Conductors
1 Cable
Size
1/2 Inch
Size
1/2 IN
Special Features
CSA listed for use with 14/2 to 10/3 ACG90
Standard
UL
Trade Size
1/2 in
Type
Connector
Package Weight (Imperial)
0.057 L
Package Weight (Metric)
0.026 kg

Similar Products

560-DC2

Conductor Range: 14/2 to 10/3 (.44" - .61"0)

Size: 3/8 IN

Special Features: With Tri-Drive Screw

561-DC2

Application: For use with AC/MC/HCF: 10/4 (.61" 0 min) to 8/3 (.87" 0 max)

Conductor Range: 10/4 (.61" 0min) to 8/3 (.87" 0 max)

Size: 3/4 IN

563-DC2

Conductor Range: 14/2 to 12/2

Size: 1/4 IN

Special Features: HCF

566-DC2

Conductor Range: 12/2 (.44" 0 min) to 10/3 (.53" 0 max)

Trade Size: 1/2

Trade Size: 1/2

560-DCI2

Conductor Range: 12/2 to 10/4

Size: 3/8 IN

Standard: UL, CSA

561-DCI2

Conductor Range: 10/4 to 8/3

Size: 3/4 IN

Standard: UL, CSA

You May Also Be Interested In

Connector, Strap, Two Screw, Zinc Die Cast, Size K.O. 3/4 Inch.

682-DC2

Connector, Strap, Two Screw, Zinc Die Cast, Size K.O. 1 Inch

683-DC2

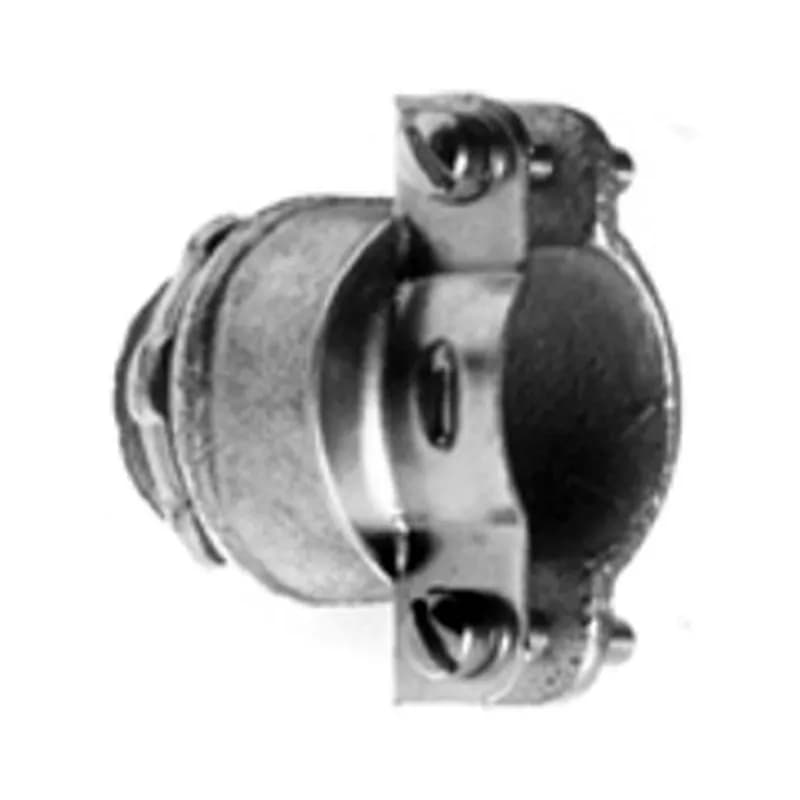

Connector, Strap, Two Screw, Zinc Die Cast, Size K.O. 1/2 Inch, AC Only

653-DC2

Connector, Strap, Two Screw, Zinc Die Cast, Size K.O. 1-1/2 Inch

685-DC2

Connector, Strap, Two Screw, Zinc Die Cast, Size K.O. 1-1/4 Inch

684-DC2

Frequently Asked Questions

What are the dimensions of the connector?

The connector dimensions are A: 1-5/16, B: 7/16, C: 3/8, D: 15/16, E: .370 inches.

What types of cables can be connected?

The connector is recommended for 14/2 to 10/3 armored or metal clad cables.

What is the material of the connector?

The connector is made of zinc die cast.

What certifications does the connector have?

The connector meets UL Standard UL-514B and Federal Specification A-A-50552.
