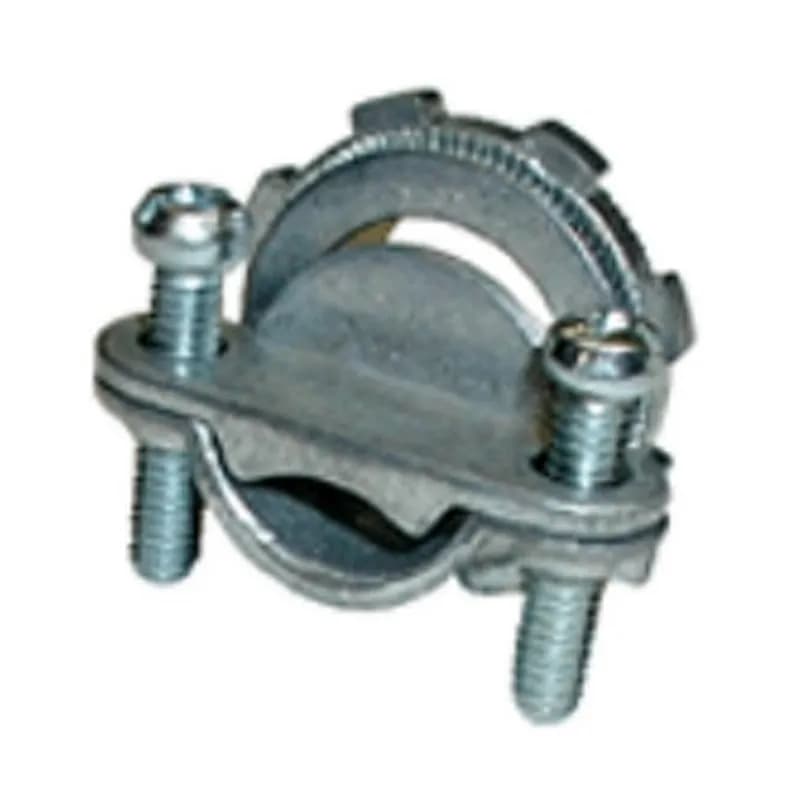

NSI Industries 653-DC2 Connector, Strap, Two Screw, Zinc Die Cast, Size K.O. 1/2 Inch, AC Only
UPC: 781747156532
Documents & Media
Contact for Pricing
Minimum Qty: 25
Multiplier: 25
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Zinc Die Cast construction for durability and corrosion resistance.
- Two-screw strap design for secure armored cable connections.
- Compatible with 1/2" KO openings in electrical boxes and enclosures.
- Suitable for AC-only applications with armored cable sizes 8/2 to 6/4 AWG.
- Ball-burnished, mirror-smooth finish for easy installation.
Specifications
Angle | 180 Deg |
Application | Recommended cable types used to connect armored cable to 1/2" K.O. in box or enclosure. 8/2 - 6/4 1/2" Flex AC .675"-.90" 0 |
Conductor Range | 8/2 - 6/4 |
Connection Type | Two-Screw Strap |
Connector Type | Two-Screw, Strap Type |
Finish | Ball burnish |
Frequency | AC only |
Material | Zinc Die Cast |
Number Of Conductors | 1 Cable |
Series | 653 |
Size | 1/2 IN |
Special Features | HCF |
Standard | UL |
Trade Size | 1/2 in |
Type | Connector |
Package Weight (Imperial) | 0.119 L |
Package Weight (Metric) | 0.054 kg |

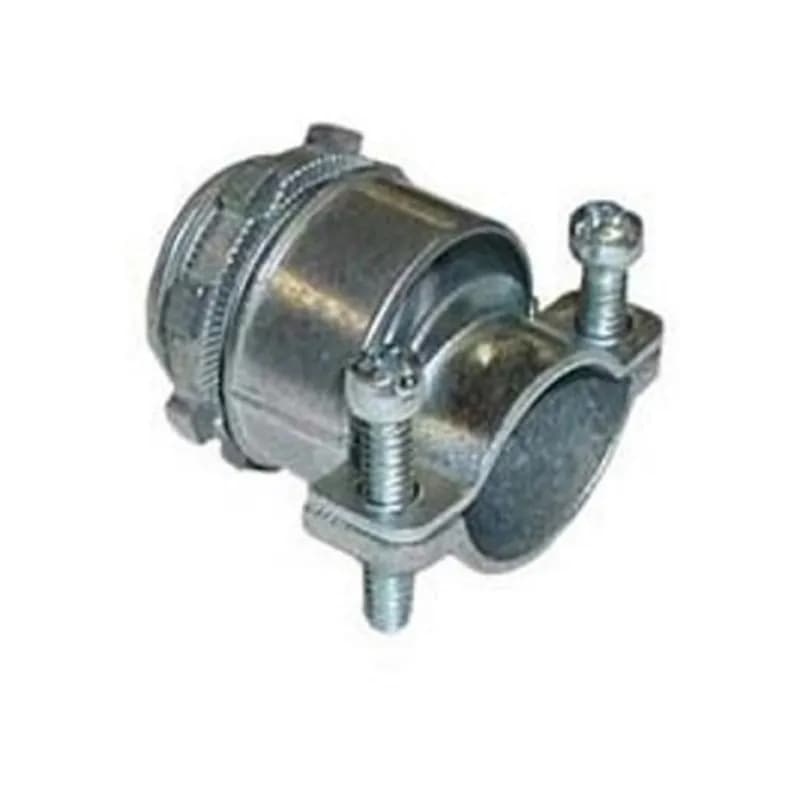

XC240-5
Connector, Screw-In, Size 3/8 Inch, Length 1.31 Inch, Width 0.92 Inch, Die Cast Zinc, Bag of 5
Frequently Asked Questions
What is the trade size of the 653-DC2 connector?
The trade size of the 653-DC2 connector is 1/2 inch.
Where is the 653-DC2 connector manufactured?
The 653-DC2 connector is manufactured in the USA.
What materials are used in the 653-DC2 connector?
The 653-DC2 connector is made from zinc die cast material with a ball burnished, mirror smooth finish.
What are the dimensions of the 653-DC2 connector?
The dimensions are: A: 1-3/8, B: 7/16, C: 1-3/4, D: 1-1/4, E: .610, F: 1-1/8 inches.
What is the catalog ID for the 653-DC2 connector?
The catalog ID for the 653-DC2 connector is 653-DC2.
What is the recommended cable type for this connector?
The connector is recommended for use with armored cable types 8/2 - 6/4 and 1/2" Flex AC with diameters of .675" to .90".
What is the UPC number for this product?
The UPC number for the 653-DC2 connector is 781747156532.
How many units are in a standard package?
A standard package contains 100 units of the 653-DC2 connector.
