Contact for Pricing
Minimum Qty: 50
Multiplier: 50
*Contact for lower quantities*

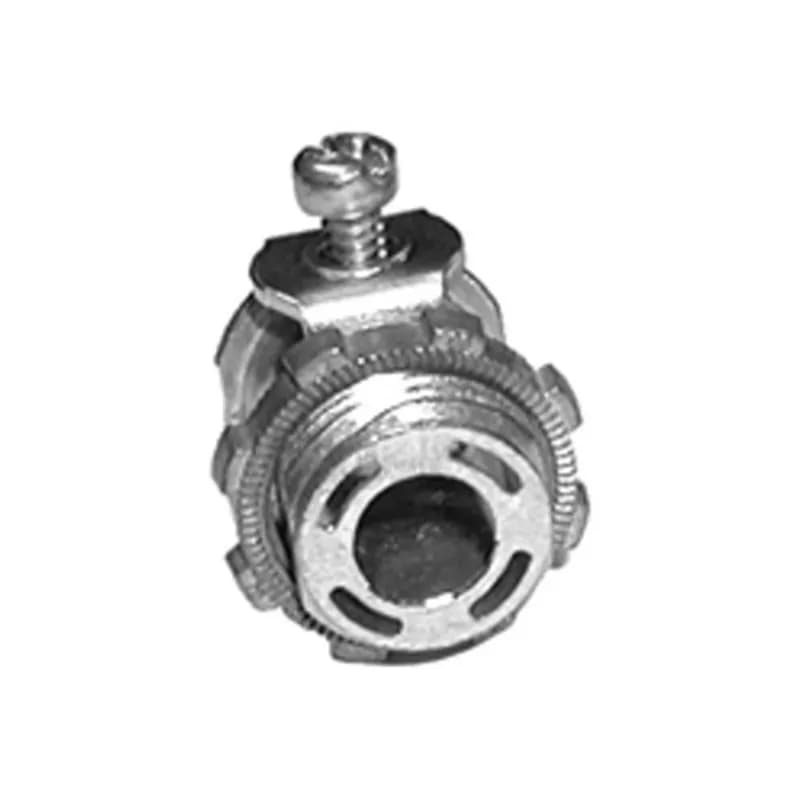

Overview
- Zinc die-cast construction for corrosion and mechanical stress resistance
- Single-screw design for simplified installation and secure cable retention
- Trade Size 3/8 inch compatible with AC, MC, and MCIA cables
- Fits 1/2-inch knockout (K.O.) entry in electrical enclosures
- Reduces wire pulling effort and protects conductors during termination
Specifications
Angle | 180 Deg |
Application | Recommended cable types to connect corrugated or interlocked MC or AC cable to box or enclosure. 14/4(.44" 0 min) to 10/4 (.61" 0 max) MCI-A. 12/2 to 10/4 AC/MC/MCIA/HCF/HCFMCI-A 3/8" FMC. 14/2 - 10/3 NM Cable |
Conductor Range | 14/2 to 10/3 (.44" - .61"0) |
Connector Type | Single Screw, Strap Type |
Finish | Ball burnish |
Material | Zinc Die Cast |
Number Of Conductors | 1 Cable |
Size | 3/8 IN |
Special Features | With Tri-Drive Screw |
Standard | UL, CSA |
Trade Size | 3/8 IN |
Type | Connector |
Package Weight (Imperial) | 0.071 L |
Package Weight (Metric) | 0.032 kg |
Similar Products
560-DCI2
Conductor Range: 12/2 to 10/4
Temperature Rating: 105?°C
Connector Type: Single Screw Strap-Type, Insulated
561-DC2
Application: For use with AC/MC/HCF: 10/4 (.61" 0 min) to 8/3 (.87" 0 max)
Conductor Range: 10/4 (.61" 0min) to 8/3 (.87" 0 max)
Size: 3/4 IN
565-DC2
Conductor Range: 14/2 (.38" 0 min) to 10/3 (.53" 0 max)
Size: 1/2 IN
Special Features: CSA listed for use with 14/2 to 10/3 ACG90
Frequently Asked Questions
What types of cables can be connected?
The connector is recommended for 14/4 to 10/4 MCI-A, 12/2 to 10/4 AC/MC/MCIA/HCF/HCFMCI-A, and 14/2 to 10/3 NM cables.
What is the trade size of the connector?
The trade size of the connector is 3/8 inch FMC.
Is the product certified?
Yes, it has certifications including CSA, UL, and complies with NEMA standards.
What material is the connector made of?
The connector is made of zinc die cast with a ball burnished, mirror smooth finish.
