Contact for Pricing
Minimum Qty: 50
Multiplier: 50
*Contact for lower quantities*
Overview

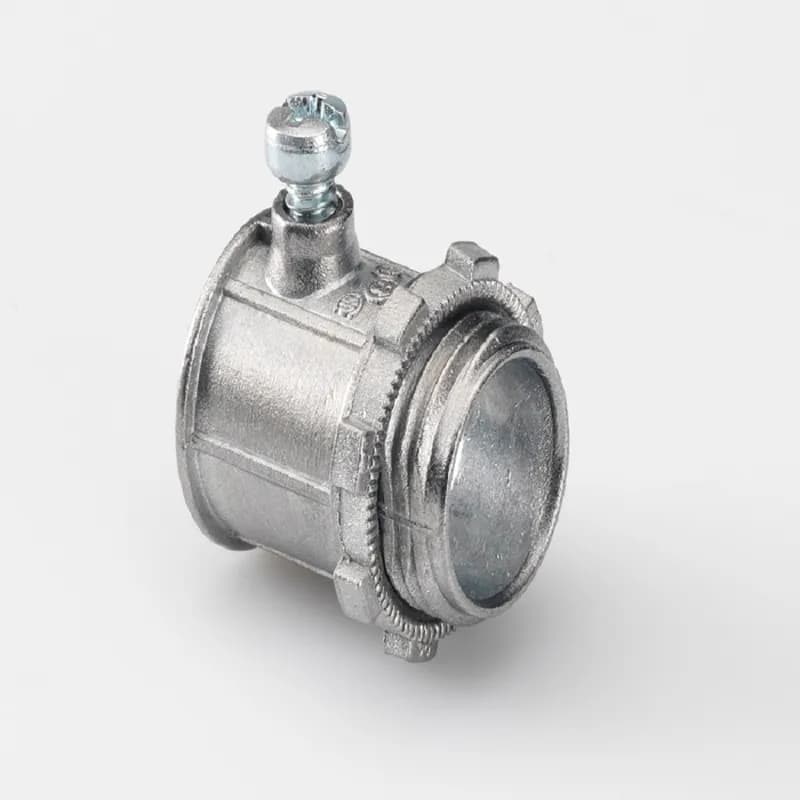

- 1/2 Inch Size for versatile conduit compatibility
- Zinc Die Cast construction for durability and corrosion resistance
- 105°C Insulated Throat for enhanced electrical safety
- Set Screw type for secure connection
- Designed for industrial electrical applications
Specifications
Application | Used to secure EMT to box or enclosure. Insulated Throat 105degreeC |
Connector Type | Set Screw |
Finish | Ball burnish |
Insulation | Insulated Throat |
Material | Zinc Die Cast |
Material Quality | Zinc Die Cast |
Size | 1/2 Inch |
Size | 1/2 IN |
Special Features | Furnished with Tri-Drive Slotted/Phillips/Robertson Screw |
Standard | UL, CSA |
Temperature Rating, Maximum | 221.00000 F |
Temperature Rating, Maximum | 105 °C |
Temperature Rating, Maximum | 221 F |
Temperature Rating, Maximum | 105 C |
Temperature Rating, Minimum | 221.00000 F |
Temperature Rating, Minimum | 221 F |
Temperature Rating, Minimum | 105 C |
Trade Size | 1/2 in. |
Type | Connector |
Package Weight (Imperial) | 0.062 L |
Package Weight (Metric) | 0.028 kg |
Similar Products
230-DC2
Application: Used to secure EMT to box or enclosure.
Special Features: Furnished with Tri-Drive slot/Phillips/Robertson head screws
Insulation: False
Frequently Asked Questions
What is the catalog ID for the connector?
The catalog ID for the connector is 230-DCI2.
What are the certifications for the 230-DCI2?
The connector is certified under CSA, UL, and meets NEMA standards.
What is the trade size of the connector?
The trade size of the connector is 1/2 inch.
What is the maximum operating temperature?
The maximum operating temperature is 105°C.
What is the maximum operating temperature?
The maximum operating temperature is 105°C.
What is the trade size of the connector?
The trade size of the connector is 1/2 inch.
What are the certifications for the 230-DCI2?
The connector is certified under CSA, UL, and meets NEMA standards.
What is the catalog ID for the connector?
The catalog ID for the connector is 230-DCI2.
What material is the 230-DCI2 connector made of?
The 230-DCI2 connector is made of zinc die cast.
Where is the 230-DCI2 connector manufactured?
The connector is manufactured in the USA.
