Contact for Pricing
Overview

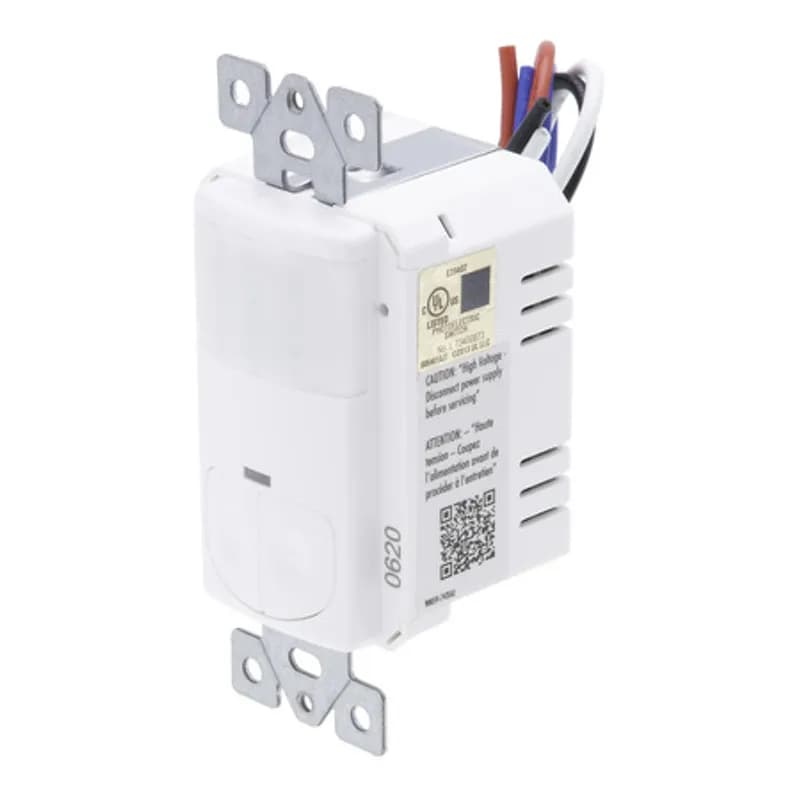

- Dual-relay PIR wall switch occupancy sensor with 1200 sq. ft. coverage
- Operates on 120-277 VAC and requires a neutral wire connection
- Software-settable dual relay configurations with Bathroom Mode and Two-Step Light Level
- Four selectable modes: Auto On/Off, Manual On, Walk Through, and Test
- Supports 800W tungsten, 1000W LED/ballast (120V), 1/4 HP motors (120V) with inrush current limiting and zero-cross switching
- Optional daylight photosensor (5-200fc) for energy savings
- Tamper-resistant design with inrush current limiting
- Coverage: 1200 sq. ft., 180° field of view
Specifications
Application | Office Areas-Meeting Rooms-Equipment Room-Storage Spaces-New Construction-Retrofit |
Body | NSI |
Color | White |
Connection Type | Neutral required |
Connection Type | Screw Terminal |
Current Rating | 1000W-1800W |
Enclosure | Thermoplastic |
Environmental Conditions | 32 F to 131 F |
Frequency | 60 Hz |
Material | Poly |
Mounting | Wall mount |
Mounting Type | Single-gang wall switch |
Mounting Type | Wall Mount |
Operating Temperature, Maximum | 131 F |
Operating Temperature, Maximum | 55.0000 °C |
Operating Temperature, Minimum | 32 F |
Poles | 2P |
Poles | 2 Relay |
Poles | 2 |
Sensor | PIR Sensor |
Series | WOS |
Size | Single-Gang |
Size | Single-gang decorator plate |
Special Features | Four Selectable Settings (Automatic On/Off-Manual On-Energy Saving Walk Through-Test |
Standard | cULus |
Supply Voltage | 120/230/277 |
Type | PIR Wall Switch Two Relay |
Voltage Rating | 120-277V |
Voltage Rating | 120-277 VAC |
Voltage Rating | 120-277V AC |
Package Dimensions (L x W x H) | 1.795 IN x 1.73 IN x 2.69 IN |
Package Dimensions (L x W x H) | 4.5593 cm x 4.3942 cm x 6.8326 cm |
Package Weight (Imperial) | 0.408 L |
Package Weight (Metric) | 0.185 kg |
Frequently Asked Questions
What voltage range does the WOS-MN2R support?
The WOS-MN2R operates on 120-277V AC, 50/60Hz.
Does the WOS-MN2R require a neutral wire?
Yes, the WOS-MN2R requires a neutral wire for operation.
What is the maximum load capacity for lighting?
The WOS-MN2R supports 800W tungsten, 1000W LED/ballast at 120V, 1500W at 230V, and 1800W at 277V.
What motor loads are compatible with the WOS-MN2R?
The WOS-MN2R supports 1/4 HP motors at 120V.
What are the selectable time delay settings?
The WOS-MN2R offers six time delay settings: 5, 10, 15, 20, 25, and 30 minutes.
Can the WOS-MN2R be customized for different applications?
Yes, the WOS-MN2R features software-set customizable functions, including Bathroom Mode, Two Step Light Level, and Public Areas settings.
What is the coverage area of the PIR sensor?
The PIR sensor has a preset coverage area of 1200 sq. ft.
Is the WOS-MN2R tamper-resistant?
Yes, the WOS-MN2R includes a tamper-resistant design with a captive button and rugged lens.
What are the operating temperature limits?
The WOS-MN2R operates from 32°F to 131°F (0°C to 55°C).
What certifications does the WOS-MN2R have?
The WOS-MN2R is cULus certified.
