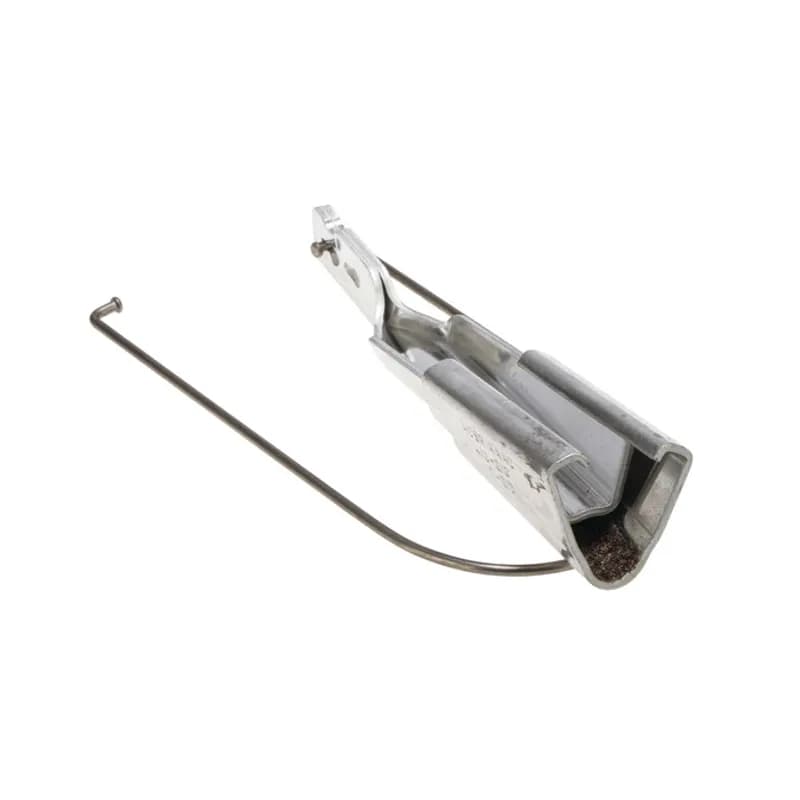

NSI Industries W40-1FC - Aluminum Service Flex Wedge Clamp for 4/0 - 2/0 ACSR - 1 Count Aluminum Service Wedge Clamps are used for dead-ending self supporting drop wire. Saves conductor- drop wire may be cut to exact length. Can be attached to bare neutral in any point in the span. Adjustment in drop wire sag are easily made. Grips ACSR, AAAC or aluminum conductor. Temperature rating 90 degrees C. Rated for 600V (2000V max. per UL486B). UL486A/B Listed Wire Connector.
NSI Industries

W40-1FC

UPC: 662381082923

Contact for Pricing

Overview

The NSI Industries W40-1FC is a robust Aluminum Service Flex Wedge Clamp designed for the dead-ending of self-supporting drop wire. This clamp offers significant advantages in conductor management, allowing the drop wire to be cut to the exact required length, thereby saving material and reducing waste. Its flexible bail design, indicated by the 'FC' suffix, enhances installation flexibility. The W40-1FC can be securely attached to a bare neutral conductor at any point along the span, providing versatile mounting options. Adjustments to drop wire sag are easily made, ensuring optimal tension and performance. This wedge clamp is engineered to provide a reliable grip on ACSR, AAAC, and standard aluminum conductors, accommodating wire ranges from 4/0 to 2/0 ACSR. It operates effectively within a temperature rating of 90°C and is rated for 600V, with a maximum rating of 2000V per UL486B. As a UL486A/B Listed wire connector, the W40-1FC meets stringent safety and performance standards for electrical connections. Its aluminum construction ensures corrosion resistance and long-term durability in service. SKU: W40-1FC. Manufacturer: NSI Industries.
  • Designed for dead-ending self-supporting drop wire
  • Saves conductor by allowing exact length cutting
  • Flexible bail for enhanced installation versatility
  • Attaches to bare neutral at any point in the span
  • Grips ACSR, AAAC, and aluminum conductors

Specifications

Application
Dead Ending Self Supporting Drop Wire
Cable Size
4/0-2/0(ACSR) - 4/0 STR-2 SOL(Aluminum)
Color
Aluminum
Finish
Aluminum
Material
Aluminum
Size
L= 17.50 - Diameter Flex IN
Special Features
Saves Conductor - Drop Wire May Be Cut To Exact Length
Type
Wedge Clamps
Warranty
1 Year
Package Dimensions (L x W x H)
13 IN x 1.25 IN x 1.25 IN
Package Dimensions (L x W x H)
33.02 cm x 3.175 cm x 3.175 cm
Package Weight (Imperial)
0.300 L
Package Weight (Metric)
0.136 kg

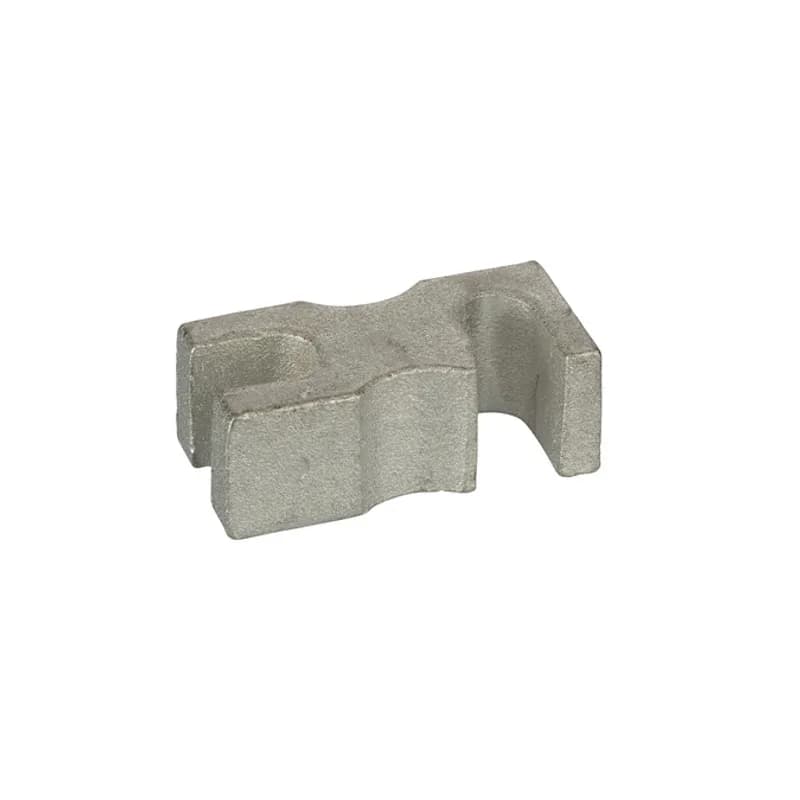

500 - 1000MCM Dual Rated Stacking Adapters for Aluminum and Copper Compression Terminals DualRated Stacking Adapteris a type of copper compression connector that is produced from tin-plated pure aluminium for good conductivity and corrosion resistance. The adapter allows for thestacking of standard two-hole compression lugs.
