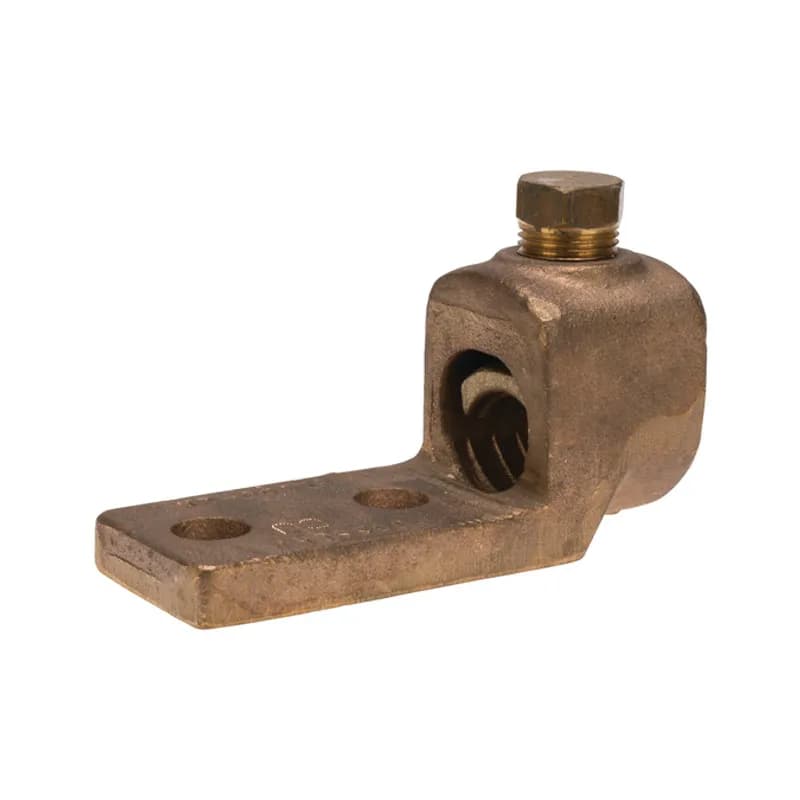

NSI Industries TL1000-L2 - Cast Bronze Terminal Lug 1000 - 750 MCM Copper Terminal Lugs are made of high copper alloy. They are used for joining a wide range of cables or terminal blocks.
NSI Industries

TL1000-L2

UPC: 662381005830

Documents & Media
Technical Bulletin

Contact for Pricing

Overview

The NSI Industries TL1000-L2 is a high-conductivity cast bronze terminal lug designed for robust electrical connections. Engineered from a premium copper alloy, this lug ensures exceptional conductivity and durability for demanding applications. It is specifically designed to accommodate a wide wire range, accommodating copper conductors from 1000 MCM down to 750 MCM. This range-taking capability simplifies inventory and installation, making it a versatile choice for various electrical projects. Constructed from high-strength cast bronze, the TL1000-L2 offers superior mechanical strength and resistance to corrosion, ensuring long-term reliability in challenging environments. The lug is UL Listed under E155274 and UL486A for wire connectors, meeting stringent industry safety and performance standards. It is rated for a maximum voltage of 600V and a temperature rating of 90°C, making it suitable for a broad spectrum of power distribution and termination applications. The design facilitates easy inspection of the termination to confirm complete cable insertion, a critical feature for ensuring safe and effective connections. This terminal lug is a re-usable component, offering cost-effectiveness and flexibility during installation or maintenance. It is intended for use exclusively with copper wire. The TL1000-L2 is a key component in mechanical connector systems, providing a secure and reliable interface between cables and terminal blocks or other electrical apparatus. Its robust construction and adherence to UL standards make it an ideal choice for industrial, commercial, and utility power systems where dependable termination is paramount. NSI Industries, a trusted name in electrical components, provides this lug with the assurance of quality and performance.
  • Constructed from high conductivity copper alloy for superior performance.
  • Accommodates a wide wire range from 1000 MCM to 750 MCM.
  • UL Listed (E155274, UL486A) for reliable and safe electrical connections.
  • Rated for 600V maximum voltage and 90°C temperature.
  • Re-usable design for flexibility and cost-effectiveness.

Specifications

Warranty
1 Year
Package Dimensions (L x W x H)
4.875 IN x 1.875 IN x 2.887 IN
Package Dimensions (L x W x H)
12.3825 cm x 4.7625 cm x 7.333 cm
Package Weight (Imperial)
6.600 L
Package Weight (Metric)
2.994 kg
