Authorized NSI Industries Distributor
NSI Industries SRPE-3750 - .375 Black Poly Spiral Wrap
NSI Industries

SRPE-3750

UPC: 662381096111

Contact for Pricing

Overview

NSI Industries SRPE-3750 is a .375-inch black polyethylene spiral wrap for cable harness protection. This reusable wrap simplifies cable routing by twisting onto bundles, allowing flexible lead-outs at any point. Made from UV-resistant polyethylene, it resists solvents and abrasion for outdoor and indoor use. Supplied on a 100-foot reel for easy handling. Compatible with bundle diameters from 0.295 to 2.36 inches. Part of NSI Industries' SRPE Series wire management solutions.
  • 0.375-inch black polyethylene spiral wrap for cable harness protection
  • UV-resistant material resists solvents and abrasion
  • Reusable wrap allows flexible lead-outs at any point
  • Compatible with bundle diameters from 0.295 to 2.36 inches
  • Supplied on a 100-foot reel for easy handling

Specifications

Application
Wire Retainer
Color
Black
Length
100 ft
Material
UV Polyethylene
Material
Poly
Material
Polyethylene
Maximum Bundle Diameter
2.36 IN
Minimum Bundle Diameter
0.295 IN
Outside Diameter
0.393 IN
Pitch
0.438 IN
Series
SRPE
Size
0.375 Inch
Size
0.375
Special Features
.393 OD-.295 ID - .295-2.36 Bundle Range IN
Type
Spiral Wrap
Wall Thickness
0.052 IN
Warranty
1 Year
Package Dimensions (L x W x H)
100 FT x 0.393 IN x 0.393 IN
Package Dimensions (L x W x H)
30.48 m x 9.9822 mm x 9.9822 mm
Package Weight (Imperial)
1.824 L
Package Weight (Metric)
0.827 kg

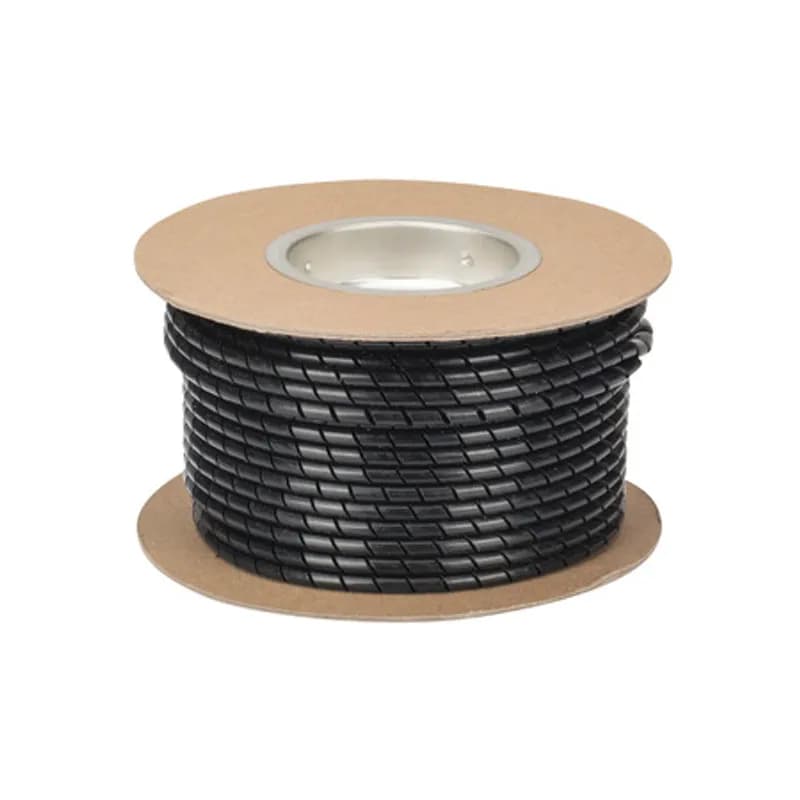

.250 Uv Poly Spiral Wrap
