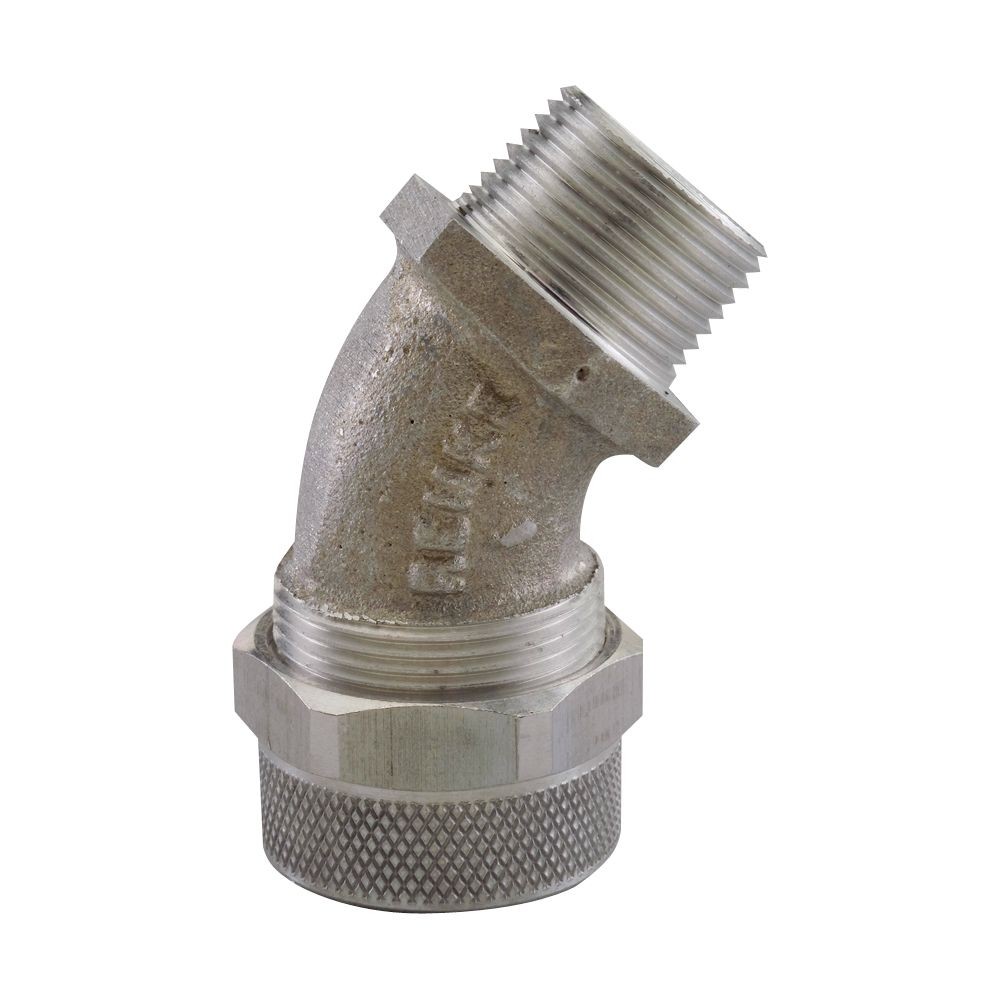

NSI Industries RSR-45315 - Cord Grip, alum, 45 deg, 1"NPT, cable range .812 - .938
NSI Industries

RSR-45315

UPC: 785411143156


Documents & Media
Technical Drawing

Contact for Pricing

Overview

The NSI Industries RSR-45315 is a 45-degree aluminum cord grip designed for secure cable entry and strain relief in industrial applications. Featuring a 1-inch NPT threaded connection, this cord grip ensures a robust and reliable seal when connecting cables to enclosures, junction boxes, or equipment. Its aluminum construction provides excellent durability and resistance to environmental factors common in industrial settings. The RSR-45315 is engineered to accommodate a cable diameter range of 0.812 to 0.938 inches, offering a precise fit for a variety of standard industrial cables. This specific design angle simplifies cable routing in confined spaces or where a 45-degree entry is required for optimal layout and accessibility. The NSI Industries RSR-45315 is a practical component for maintaining electrical integrity and preventing cable damage due to tension or movement. Its straightforward design and material composition make it suitable for a range of electrical installations requiring dependable cord management. The SKU RSR-45315 signifies a specific model within NSI Industries' comprehensive line of electrical connection and protection products, built to meet the functional needs of electrical contractors and maintenance professionals.
  • 45-degree angled design for optimized cable routing
  • Durable aluminum construction for industrial environments
  • 1-inch NPT threaded connection for secure mounting
  • Accommodates cable diameters from 0.812 to 0.938 inches
  • Provides reliable strain relief and cable protection

Specifications

Environmental Conditions
Flammability: UL 94V-2
Material Quality
Aluminum
Operating Temperature, Maximum
250 F
Operating Temperature, Maximum
121.1111 °C
Operating Temperature, Minimum
-40 F
Operating Temperature, Minimum
-40 °C
Temperature Rating
-40 to 121 Deg C C
Package Dimensions (L x W x H)
3.103 IN x 1.554 IN x 3.103 IN
Package Dimensions (L x W x H)
7.8816 cm x 3.9472 cm x 7.8816 cm
Package Weight (Imperial)
0.058 L
Package Weight (Metric)
0.026 kg
