Contact for Pricing
Minimum Qty: 100
Multiplier: 100
*Contact for lower quantities*
Overview

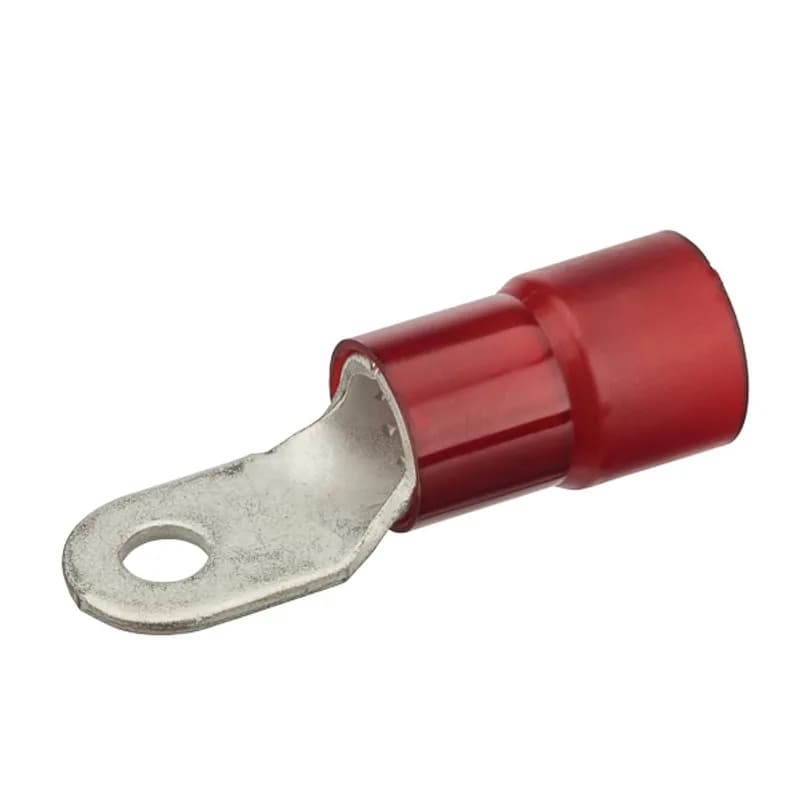

- Nylon insulated ring terminal for 22-18 AWG wire
- Features a 5/16" stud size for secure mounting
- Rated for 600V and a maximum temperature of 105°C
- Includes metal insulation grip sleeve for strain relief
- Packaged 100 per unit for convenience
Specifications
Application | Wire Termination |
Color | Red |
Connection Type | Ring Terminal |
Environmental Conditions | 105 C |
Material | Nylon |
Material | Nylon Insulation |
Number Of Terminals | 1 |
Size | 5/16" Stud |
Special Features | Nylon Insulated Ring Terminal 22-18 AWG - 100 Pack |
Standard | cULus |
Terminal Size | 5/16 IN |
Type | Nylon Insulated Ring Terminal |
Voltage Rating | 600 V |
Wire Size | 22-18 AWG |
Package Dimensions (L x W x H) | 1.094 IN x 0.456 IN x 0.036 IN |
Package Dimensions (L x W x H) | 2.7788 cm x 11.5824 mm x 0.9144 mm |
Package Weight (Imperial) | 0.256 L |
Package Weight (Metric) | 0.116 kg |
Similar Products

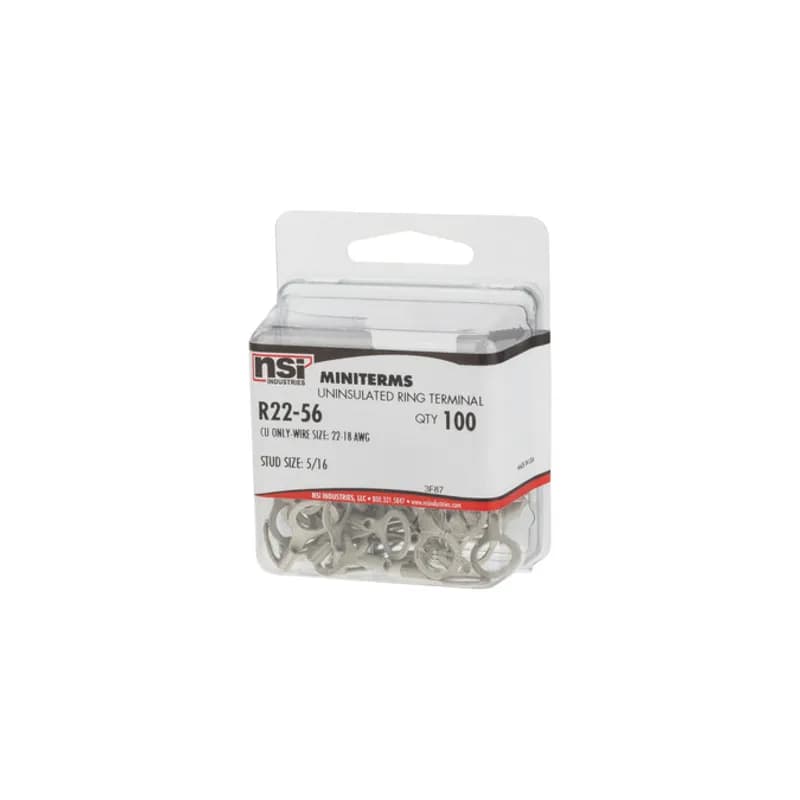

R22-56
Color: Silver
Special Features: Non-Insulated Ring Terminal 22-18 AWG - 100 Pack
Type: Non-Insulated Ring Terminal
R22-56V
Environmental Conditions: 75 C
Material: Vinyl Insulation
Special Features: Vinyl Insulated Ring Terminal 22-18 AWG - 100 Pack
R22-14N-BULK
Environmental Conditions: 105° C
Terminal Size: 1/4 IN
Special Features: Nylon Insulated Ring Terminal 22-18 AWG - 1,000 Pack
