Contact for Pricing
Overview

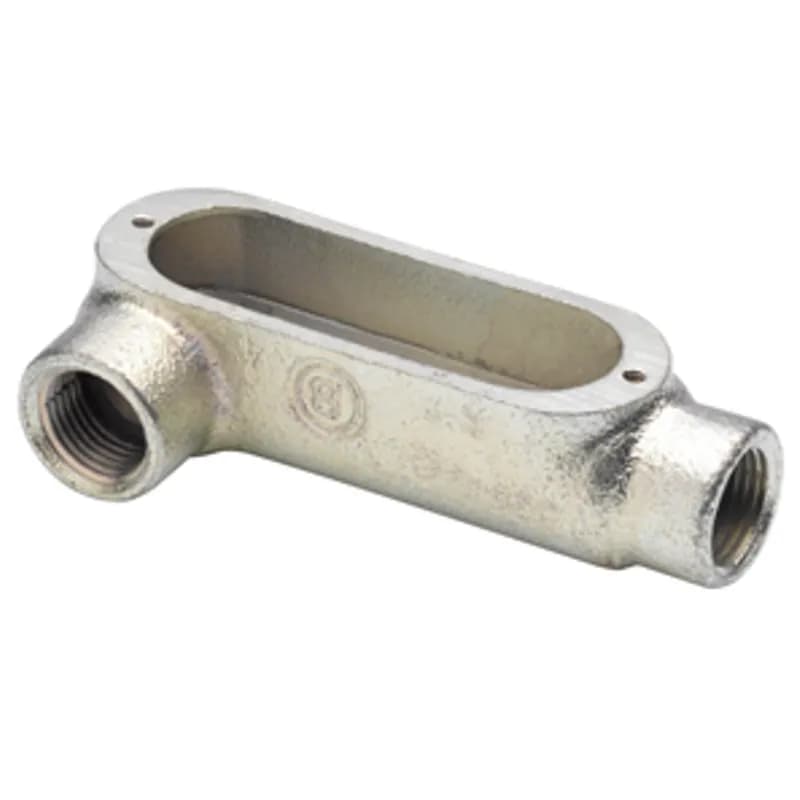

- 3-1/2-inch hub size for Rigid and IMC conduit systems
- Malleable iron construction for superior strength and corrosion resistance
- 250 cubic inch volume capacity for ample wire space
- Dimensions: 16.88" (A) x 5.94" (B) x 8.13" (C)
- Compatible with NSi Industries' Ocal-Blue® double-coat conduit systems
- Designed for harsh industrial environments with long-term reliability
Specifications
Application | Threaded bodies for rigid conduit or IMC allows access for inspection, pulling and maintenance. |
Conduit Body Form/Series | Form 35/Series 5 |
Conduit Body Type | LR |
Finish | Zinc Electroplated |
Hub Size | 3.5 |
Material | Malleable Iron |
Material Quality | Malleable Iron |
Size | 3-1/2 Inch |
Standard | UL |
Trade Size | 3-1/2 in |
Type | Type LR |
Package Dimensions (L x W x H) | 17.875 IN x 9.625 IN x 6 IN |
Package Dimensions (L x W x H) | 45.4025 cm x 24.4475 cm x 15.24 cm |
Package Weight (Imperial) | 21.740 L |
Package Weight (Metric) | 9.861 kg |
Similar Products
Frequently Asked Questions
What are the dimensions of the LR-69?
The dimensions are 5.50 inches (A), 5.38 inches (B), 7.06 inches (C), and 16.75 inches (D).
What is the application of the LR-69?
The LR-69 is used for threaded bodies for rigid conduit or IMC, allowing access for inspection, pulling, and maintenance.
What material is the LR-69 made from?
The LR-69 is made from malleable iron.
What is the trade size of the LR-69?
The trade size of the LR-69 is 3-1/2 inches.
What certifications does the LR-69 have?
The LR-69 is certified under UL-514A and complies with NEMA Standard FB-1.
What is the finish of the LR-69?
The LR-69 has a zinc electro-plated finish.
What is the standard package quantity for the LR-69?
The standard package quantity for the LR-69 is 1.
