Overview
- Constructed from high conductivity copper tubing for superior electrical performance.
- Tin-plated for corrosion resistance and low contact resistance.
- Features a peep (sight inspection) hole for visual confirmation of cable insertion.
- Rated for 6 AWG wire with a 1/4" bolt size.
- UL486A Listed wire connector, rated for 600V and 35KV maximum when properly installed.
Specifications
Application | Terminate, Splice, Tap Power Connectors |
Cable Size | # 6 AWG (STR) |
Color | Blue |
Environmental Conditions | 90 C |
Finish | Tin Plated |
Material | Copper |
Mounting | 1/4 Mounting Hole IN |
Number Of Holes | 1 |
Size | L=1.77 - W=.420 - OD=.300 - ID=.200 IN |
Special Features | # 6 AWG (STR) - 1/4 Mounting Hole |
Standard | UL486A/B, UL467 (8 AWG -3/0 AWG) |
Stud Size | 1/4 IN |
Type | Long Barrel - One Hole With Peep Hole |
Voltage Rating | 600 V |
Warranty | 1 Year |
Package Dimensions (L x W x H) | 1.772 IN x 0.421 IN x 0.295 IN |
Package Dimensions (L x W x H) | 4.5009 cm x 10.6934 mm x 7.493 mm |
Package Weight (Imperial) | 2.200 L |
Package Weight (Metric) | 0.998 kg |
L6NP
2 Hole Long Barrel Peep Hole Copper Compression Lug 6 AWG - 3/8" Bolt - 1 3/4" mOUNTING sPACING Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C.
CTH-114

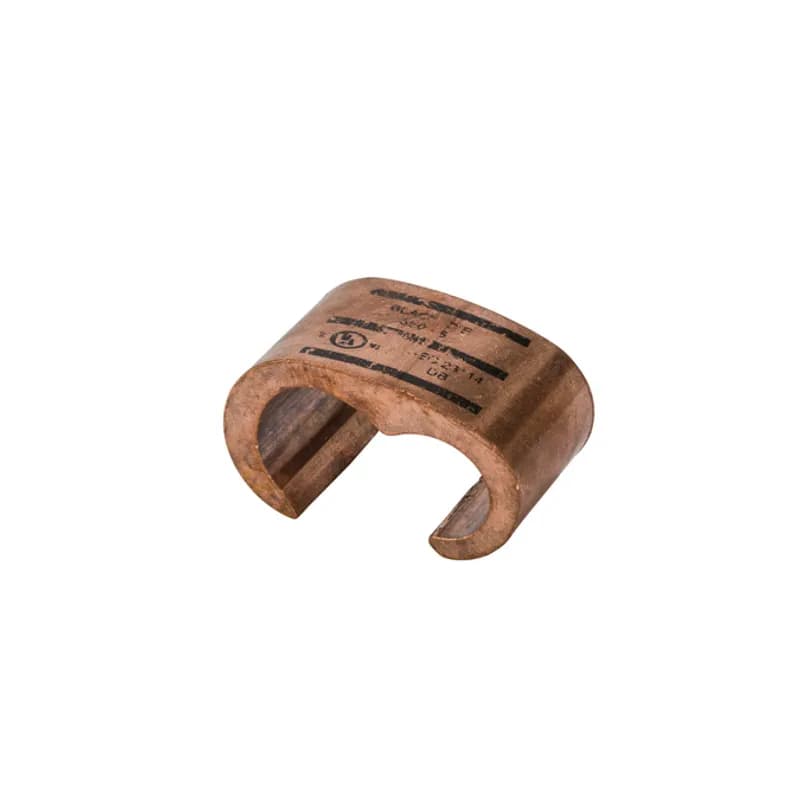

Heavy Duty Copper C Tap Grounding Connector for 350 MCM to 4/0 AWG APPLICATIONS: Copper "C" Taps ensure positive, all-around compression with low-resistance and high pull-out values. Made of high conductivity copper, they satisfy the requirements of NEC250-81 and 250-91 for connecting to the grounding electrode system. Rated 600 Volts.
CTH-115

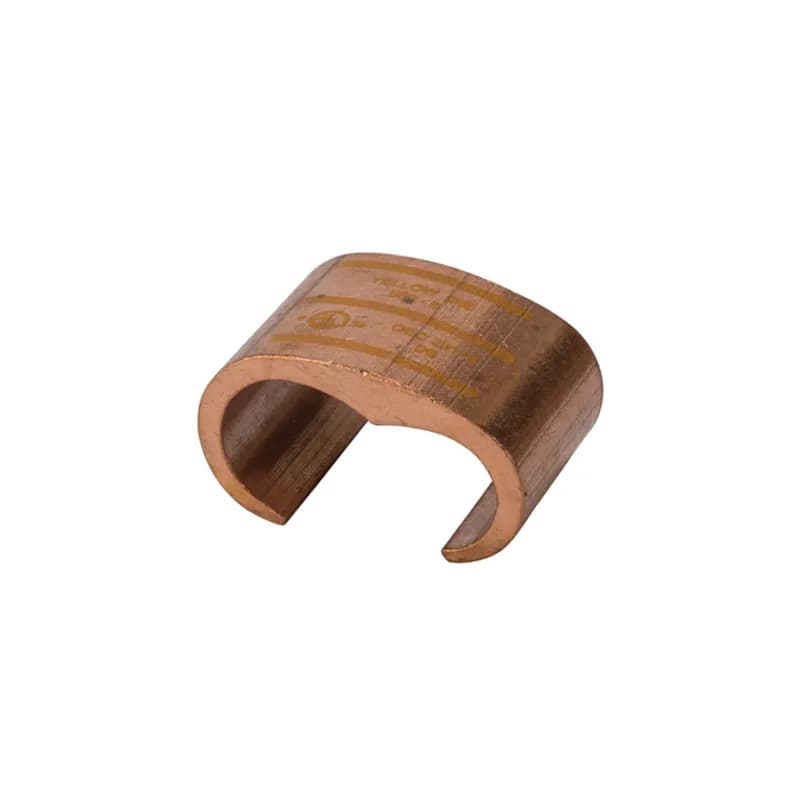

Heavy Duty Copper C Tap Grounding Connector for 500 to 250 MCM APPLICATIONS: Copper "C" Taps ensure positive, all-around compression with low-resistance and high pull-out values. Made of high conductivity copper, they satisfy the requirements of NEC250-81 and 250-91 for connecting to the grounding electrode system. Rated 600 Volts.
AL6-14
1 HoleStandard BarrelAluminum Compression Lug6 AWG - 1/4 Bolt Standard BarrelAluminum Compression Lugs is a type ofaluminum compression connector that is produced from high conductivityaluminum tubing.Center stop assures proper cable installation.They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
C-400
Long Barrel TinnedCopperSplice400 MCM Long Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
SC-6
StandardBarrel TinnedCopperSplice 6 AWG Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
C-6
Long Barrel TinnedCopperSplice6 AWG Long Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
GL400N

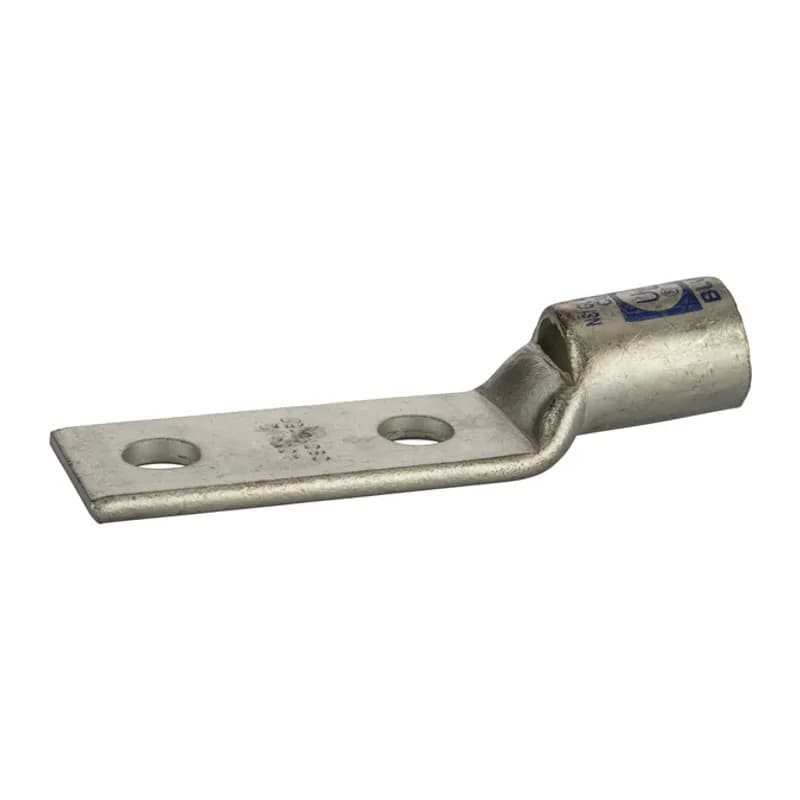

2 Hole Short Barrel Copper Compression Lug w/ Peep Hole 400 MCM - 1/2" Bolt Short Barrel Copper Compression Lugs with Peep Hole is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
SC-400

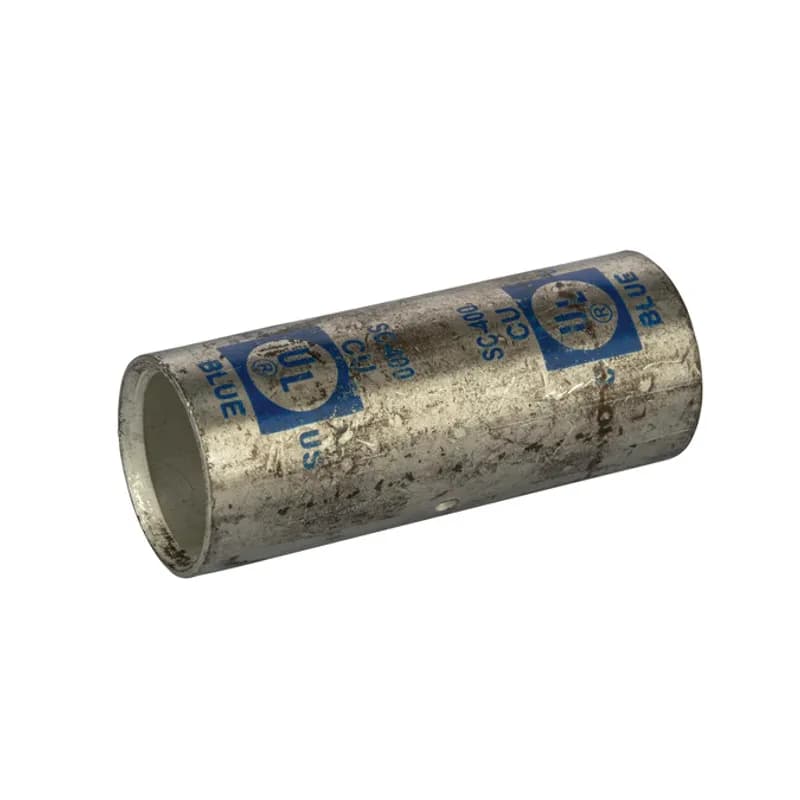

StandardBarrel TinnedCopperSplice400MCM Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
GL40048

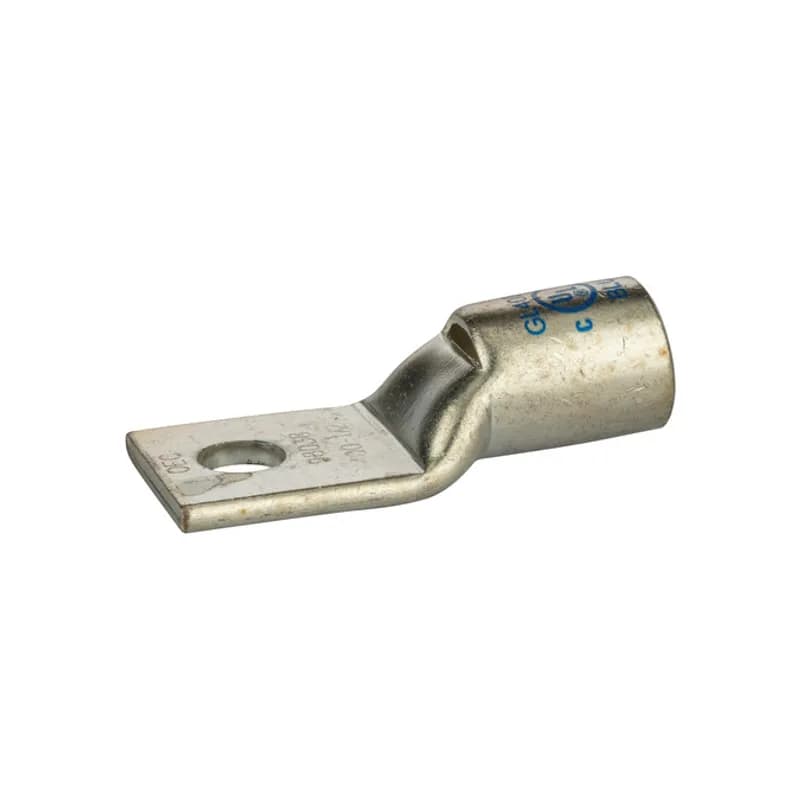

1 HoleShort Barrel Copper Compression Lug w/ PeepHole400MCM-1/2" Bolt Short Barrel Copper Compression Lugs with PeepHoleis a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
L40048
1 Hole Long Barrel Copper Compression Lug 400 MCM - 1/2" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. They are tin-plated to provide corrosion low contact resistance. Marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed and to cable manufacturer instructions. Temperature rating 90 degrees C. .How to Install NSI Copper Compression Connectors
Install and crimp NSI copper compression lugs or splices on compatible copper conductors. Select the correct connector size, prepare the conductor properly, and crimp with the approved tool and die set for a secure connection.
Tools needed:
Wire brush, Approved crimp tool or die set, NSI M-250 crimp tool (for 250 MCM Class B & C copper cable), NSI M-500 crimp tool (for 500 MCM Class B & C copper cable), NSI N12ID dieless crimp tool, NSI N1240 crimp tool
Supplies needed:
Correctly sized NSI copper compression lug or splice connector, Compatible concentric, compressed, or compact copper conductor
- Select the correct connector
Choose a lug or splice connector that matches the cable size and conductor type. Verify that the connector series and barrel size are appropriate for the installation before starting.
- Prepare the conductor
Carefully strip the insulation from the conductor without nicking the strands. Strip only enough length so the conductor can be fully inserted into the connector barrel and completely fill it.
- Clean the stripped conductor
Wire brush the stripped portion of the conductor to remove oxide films. Ensure the conductor is clean before insertion, because contamination can reduce connection quality.
- Insert the conductor fully
Insert the stripped conductor completely into the connector barrel. Confirm that the conductor is fully seated and that no bare strands are left exposed outside the barrel.
- Crimp the connector
Use an approved NSI compression tool and the correct die set for the connector series and wire size. Follow the barrel markings for suggested crimp locations, and make the required number of crimps; long-barrel lugs and splices require twice as many crimps as indicated. Use the NSI M-250 for 250 MCM Class B & C copper cable or the NSI M-500 for 500 MCM Class B & C copper cable when applicable.
- Verify the finished connection
Inspect the crimped connector to confirm it is secure and properly formed. Make sure the conductor remains fully seated and that the crimp locations match the manufacturer’s markings. Follow all electrical safety practices and de-energize circuits before installation.
