NSI Industries L40048 - 1 Hole Long Barrel Copper Compression Lug 400 MCM - 1/2" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. They are tin-plated to provide corrosion low contact resistance. Marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed and to cable manufacturer instructions. Temperature rating 90 degrees C. .
NSI Industries

L40048

UPC: 662381034168

Documents & Media
Technical BulletinInstallation Instructions

Contact for Pricing

Minimum Qty: 6

Multiplier: 6

*Contact for lower quantities*

Overview

The NSI Industries L40048 is a high-conductivity copper compression lug designed for robust electrical terminations. Manufactured from premium copper tubing, this long barrel lug ensures excellent conductivity and low contact resistance, further enhanced by a protective tin plating that resists corrosion. Each lug is clearly marked with its die index and color-coded for simplified identification and installation, minimizing errors and saving valuable time in the field. This lug is UL486A Listed as a wire connector and is rated for 600V, with a temperature rating of 90°C. Crucially, the L40048 is listed for 35KV maximum applications when installed according to cable manufacturer instructions, making it suitable for high-voltage systems. Its 1/2" bolt size is compatible with a wide range of electrical hardware. The long barrel design provides superior wire insulation support and a more reliable connection, especially important in demanding industrial environments. This lug is specifically designed for Class B or C building wire CU cable only. For applications exceeding 2000V, consult the cable manufacturer's voltage stress relief instructions. The NSI L40048 is an essential component for secure and durable electrical connections in power distribution, industrial machinery, and other critical infrastructure projects. SKU: L40048.
  • Constructed from high-conductivity copper tubing for superior electrical performance.
  • Tin-plated finish provides corrosion resistance and low contact resistance.
  • Marked with die index and color-coded for easy identification and installation.
  • Listed for 35KV maximum when properly installed, suitable for high-voltage applications.
  • Rated for 600V and a 90°C temperature rating, ensuring reliable operation.

Specifications

Application
Terminate, Splice, Tap Power Connectors
Cable Size
400 MCM (STR)
Color
Blue
Environmental Conditions
90 C
Finish
Tin Plated
Material
Copper
Mounting
1/2 Mounting Hole
Number Of Holes
1
Size
L=3.85 - W=1.38 - OD=.949 - ID=.764
Special Features
400 MCM (STR) - 1/2 Mounting Hole
Standard
UL486A/B
Stud Size
1/2 IN
Type
Long Barrel - One Hole
Voltage Rating
600 V
Warranty
1 Year
Package Dimensions (L x W x H)
3.858 IN x 1.386 IN x 0.949 IN
Package Dimensions (L x W x H)
9.7993 cm x 3.5204 cm x 24.1046 mm
Package Weight (Imperial)
1.980 L
Package Weight (Metric)
0.898 kg
2 Hole Short Barrel Copper Compression Lug w/ Peep Hole 400 MCM - 1/2" Bolt Short Barrel Copper Compression Lugs with Peep Hole is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

GL400N

2 Hole Short Barrel Copper Compression Lug w/ Peep Hole 400 MCM - 1/2" Bolt Short Barrel Copper Compression Lugs with Peep Hole is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
1 HoleShort Barrel Copper Compression Lug w/ PeepHole400MCM-1/2" Bolt Short Barrel Copper Compression Lugs with PeepHoleis a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

GL40048

1 HoleShort Barrel Copper Compression Lug w/ PeepHole400MCM-1/2" Bolt Short Barrel Copper Compression Lugs with PeepHoleis a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

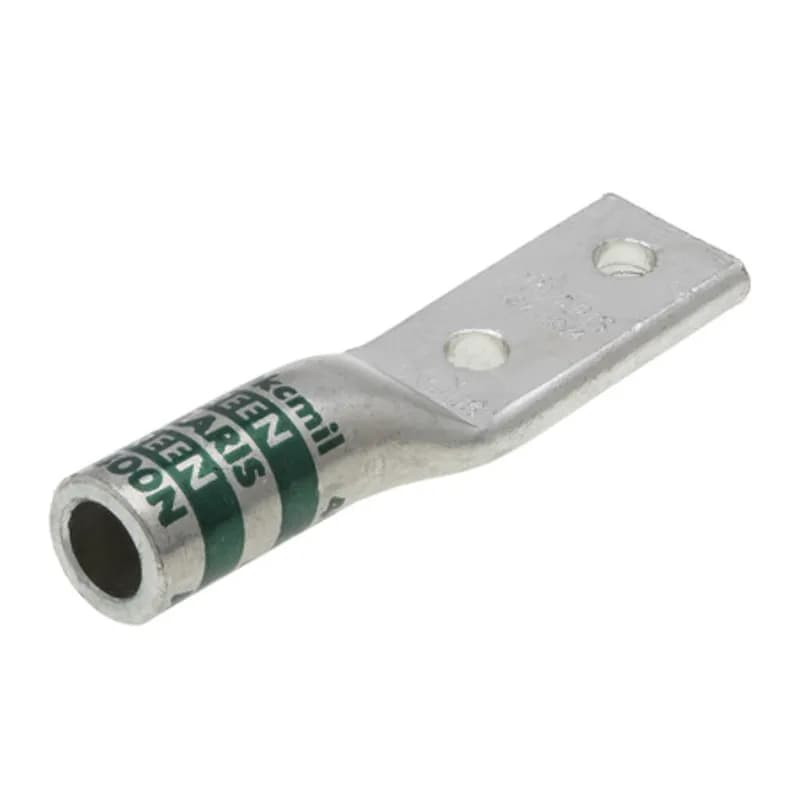

2HoleStandard BarrelAluminum Compression Lug 400 MCM -1/2 Bolt Standard BarrelAluminum Compression Lugs is a type ofaluminum compression connector that is produced from high conductivityaluminum tubing.Center stop assures proper cable installation.They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

AL400N

2HoleStandard BarrelAluminum Compression Lug 400 MCM -1/2 Bolt Standard BarrelAluminum Compression Lugs is a type ofaluminum compression connector that is produced from high conductivityaluminum tubing.Center stop assures proper cable installation.They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
1 HoleStandard BarrelAluminum Compression Lug400MCM -1/2 Bolt Standard BarrelAluminum Compression Lugs is a type ofaluminum compression connector that is produced from high conductivityaluminum tubing.Center stop assures proper cable installation.They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

AL400-48

1 HoleStandard BarrelAluminum Compression Lug400MCM -1/2 Bolt Standard BarrelAluminum Compression Lugs is a type ofaluminum compression connector that is produced from high conductivityaluminum tubing.Center stop assures proper cable installation.They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
Long Barrel TinnedCopperSplice400 MCM Long Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

C-400

Long Barrel TinnedCopperSplice400 MCM Long Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
StandardBarrel TinnedCopperSplice 6 AWG Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

SC-6

StandardBarrel TinnedCopperSplice 6 AWG Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
Long Barrel TinnedCopperSplice6 AWG Long Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

C-6

Long Barrel TinnedCopperSplice6 AWG Long Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
StandardBarrel TinnedCopperSplice400MCM Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

SC-400

StandardBarrel TinnedCopperSplice400MCM Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
2 Hole Long Barrel Peep Hole Copper Compression Lug 6 AWG - 3/8" Bolt - 1 3/4" mOUNTING sPACING Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C.

L6NP

2 Hole Long Barrel Peep Hole Copper Compression Lug 6 AWG - 3/8" Bolt - 1 3/4" mOUNTING sPACING Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C.
1 Hole Long Barrel Copper Compression Lug with Peep Hole 6 AWG - 1/4" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. They are tin-plated to provide corrosion low contact resistance. Marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed and to cable manufacturer instructions. Temperature rating 90 degrees C. .

L614P

1 Hole Long Barrel Copper Compression Lug with Peep Hole 6 AWG - 1/4" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. They are tin-plated to provide corrosion low contact resistance. Marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed and to cable manufacturer instructions. Temperature rating 90 degrees C. .
CU CMP Lug Long 4 AWG 1/4 Bolt-Peep

L350NP

CU CMP Lug Long 4 AWG 1/4 Bolt-Peep
StandardBarrel TinnedCopperSplice3 AWG Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

SC-3

StandardBarrel TinnedCopperSplice3 AWG Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

How to Install Copper Compression Connectors

This guide provides step-by-step instructions for installing copper compression connectors, ensuring a secure and reliable electrical connection.

Estimated time: 30m

Tools needed:

Wire strippers, Crimping tool, Multimeter

Supplies needed:

Copper compression connectors, Wire brush, Insulation tape

  1. Strip the wire

    Carefully strip the insulation from the conductor without nicking the strands, ensuring the stripped length allows the conductor to fill the barrel of the connector.

  2. Clean the conductor

    Use a wire brush to clean the stripped portion of the conductor, removing any oxide films to ensure a good electrical connection.

  3. Insert the conductor

    Insert the cleaned conductor completely into the barrel of the connector, ensuring it is fully seated.

  4. Crimp the connector

    Using the appropriate crimping tool, crimp the connector securely onto the conductor, following the manufacturer's suggested crimp locations.

  5. Verify the connection

    Use a multimeter to check the continuity of the connection, ensuring it is secure and functioning properly.
