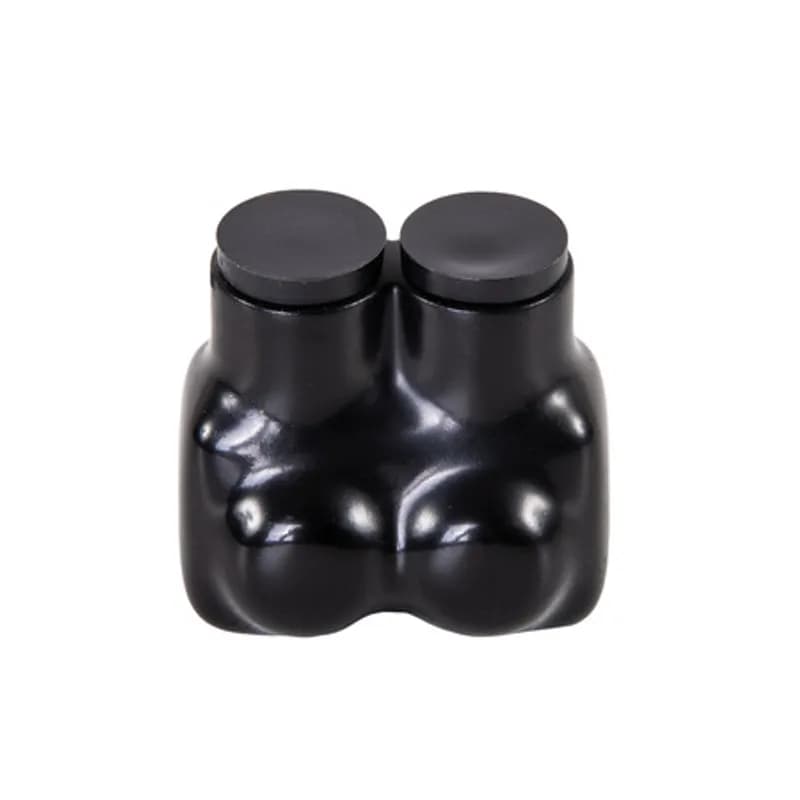

NSI Industries IT-4B - The Polaris IT-4B Multi-Tap Single-Side Entry Connector features 2 ports sized for 4 AWG to 14 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Dual rated for use with copper or aluminum cables. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

NSI Industries IT-4B The Polaris IT-4B Multi-Tap Single-Side Entry Connector features 2 ports sized for 4 AWG…

UPC: 662381953018

Documents & Media
BrochureTechnical Bulletin

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The NSI Industries Polaris IT-4B Multi-Tap Single-Side Entry Connector is a pre-insulated, 2-port splicing solution engineered for secure, high-quality connections between 4 AWG and 14 AWG conductors. Designed for installation in cable trays, panel boards, ducts, raceways, or troughs, this connector eliminates the need for tape, coverings, or additional supplies during assembly. The aluminum alloy body is wrapped in high-dielectric strength plastisol insulation, providing resistance to abrasion, chemicals, and UV rays while maintaining a comfortable ergonomic grip. Each port is pre-loaded with an oxide inhibitor to prevent corrosion and ensure low contact resistance, and removable access plugs cover unused ports to prevent debris ingress. The IT-4B is dual-rated for copper and aluminum cables, with maximum ampacity ratings of 95A for copper and 75A for aluminum at 90°C operating temperature. Rated for 600V and suitable for Class B and C conductors, this connector is cold-temperature rated to -45°C (-49°F) and meets UL 486A-486B standards for dry locations. Installation requires only a hex key and torque wrench, with torque specifications provided in the manufacturer's documentation. The single-side entry design simplifies conductor insertion and secures connections with covered pressure screws, making it ideal for parallel configurations and UL-listed applications. Part of NSI Industries' Vision Tap series, the IT-4B combines durability, versatility, and ease of use for electrical splicing in industrial, commercial, and utility environments.
  • Single-Side Wire Entry: Form secure connections between 2 conductors quickly using the single-sided entry ports sized for wires between 4 and 14 AWG
  • Ergonomic Design: Rounded corners and a smooth exterior finish over the plastisol insulation make Polaris connectors comfortable to grip
  • Removable Plugs: Each port and adjustable set screw is covered by a secure plug to prevent debris, moisture or contaminants from entering the insulated connector
  • Pre-filled Oxide Inhibitor: Both single-side entry ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
  • Professional Performance: The durable layer of insulation on each Polaris connector is UV, abrasion and chemical-resistant for reliable performance
  • Rated 600V, -45°C to 90°C operating temperature
  • No tape or additional supplies required for installation
  • Ergonomic design with high-dielectric strength insulation
  • Suitable for cable trays, panel boards, ducts, raceways, or troughs

Specifications

Aluminum Conductor Max AMP
75 Amp
Aluminum Conductor Note
Dual Rated for use with copper and or aluminum cables. Not for use with fine-stranded, flexible cables
Application
Wire Termination
Color
Black
Connection Type
Screw Terminal
Copper Conductor Max
95 Amp
Current Rating
95 A (Copper), 75 A (Aluminum)
Environmental Conditions
90 C
Finish
Plastisol Insulated
Material
Aluminum
Material
Aluminum Alloy, Plastisol
Mounting Type
Single-Side Entry
Number Of Conductors
2
Number Of Poles
1
Poles
2
Series
Polaris
Size
L=1.120 - W=1.180 - H=1.380 IN
Size
4 AWG - 14 AWG
Special Features
(2) 4-14 AWG - Dual Rated - Bagged Item
Standard
UL 486A/B
Temperature Rating
90 C
Type
Multi Cable
Voltage Rating
600 V
Warranty
1 Year
Wire Size
4-14 AWG
Wire Type
Class B & C
Wire/Cable Class
Class B, Class C
Package Dimensions (L x W x H)
1.12 IN x 1.18 IN x 1.38 IN
Package Dimensions (L x W x H)
2.8448 cm x 2.9972 cm x 3.5052 cm
Package Weight (Imperial)
0.062 L
Package Weight (Metric)
0.028 kg
