NSI Industries
ISE68
UPC: 662381028075
Contact for Pricing
Overview
- Pre-insulated service entrance compression sleeve for fast, easy installation with standard tools.
- Designed for combinations of aluminum-aluminum and aluminum-copper conductors.
- Meets or exceeds ANSI C119.4 requirements.
- Rated for 600 Volts maximum.
- Accommodates 3-4 AWG Stranded (Orange) and 4 AWG Solid (Orange) conductors.
Specifications
Application | Terminate, Splice, Tap Power Connectors |
Color | Orange (Main) - Orange (Tap) |
Environmental Conditions | 90 C |
Insulation | Insulated |
Material | Aluminum |
Number Of Wires | 2 |
Size | L=2 3/4 |
Size | 3-4 Str - 4 Sol |
Special Features | Main-4(ACSR) 3-4(STR) 2(SOL) Orange - Tap - 4(ACSR) 3-4(STR) 2(SOL) Orange |
Type | Servie Entrance Sleeves |
Voltage Rating | 600 V |
Warranty | 1 Year |
Wire Size | Main 4 ACSR 3-4 STR 2 SOL - Tap 4 ACSR 3-4 STR 2 SOL |
Package Dimensions (L x W x H) | 2.78 IN x 0.64 IN x 0.64 IN |
Package Dimensions (L x W x H) | 7.0612 cm x 16.256 mm x 16.256 mm |
Package Weight (Imperial) | 3.500 L |
Package Weight (Metric) | 1.588 kg |
GL30NB
2Hole Short Barrel Copper Compression Lug for Flexible Copper Cable3/0AWG - 1/2" Bolt Compression lugs for flexible copper cables are connects that have a gentle, continuous flared end to ensure ease of cable insertion of flexible and extra flexible cables such as locomotive, welding, mining cable and more. The flared end also reduces pressure on the cable strands after installation and protects them from chafing and breakage as a result of cable movement. Tin-plated for corrosion resistance. Rated 600 volts for copper cables only. Single mounting hole.
C-3/0
Long Barrel TinnedCopperSplice 3/0 AWG Long Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
L30N-38P
2 Hole Long Barrel Copper Compression Lug with Peep Hole 3/0 AWG - 3/8" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C.
L3038

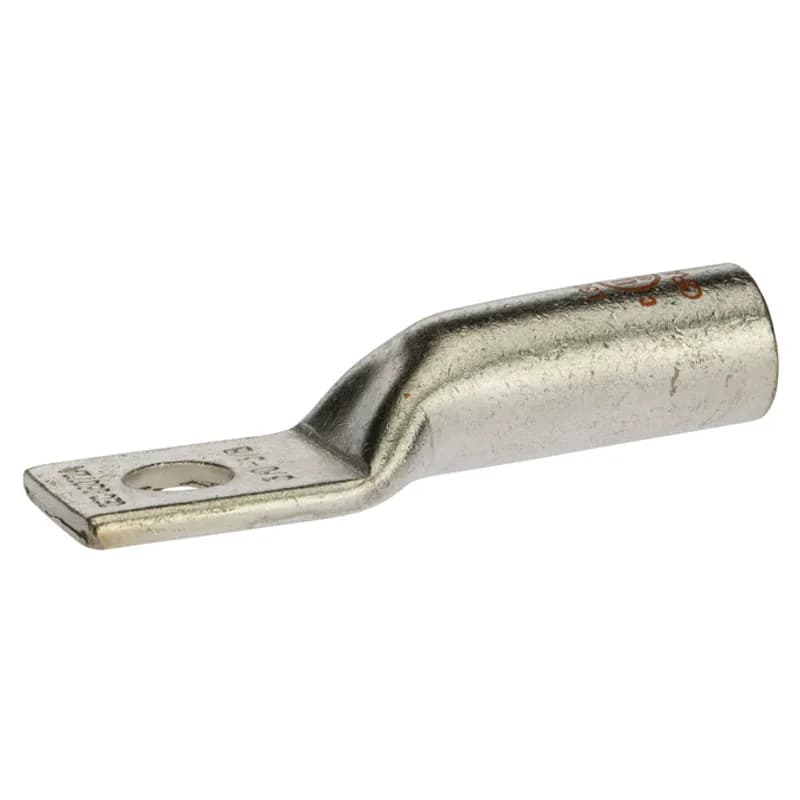

1 Hole Long Barrel Copper Compression Lug 3&frasl-0 AWG - 3/8" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. They are tin-plated to provide corrosion low contact resistance. Marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed and to cable manufacturer instructions. Temperature rating 90 degrees C. .
SC-3/0
StandardBarrel TinnedCopperSplice3/0 AWG Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.L3014P
1 Hole Long Barrel Copper Compression Lug with Peep Hole 3/0 AWG - 1/4" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. They are tin-plated to provide corrosion low contact resistance. Marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed and to cable manufacturer instructions. Temperature rating 90 degrees C. .
L3038B

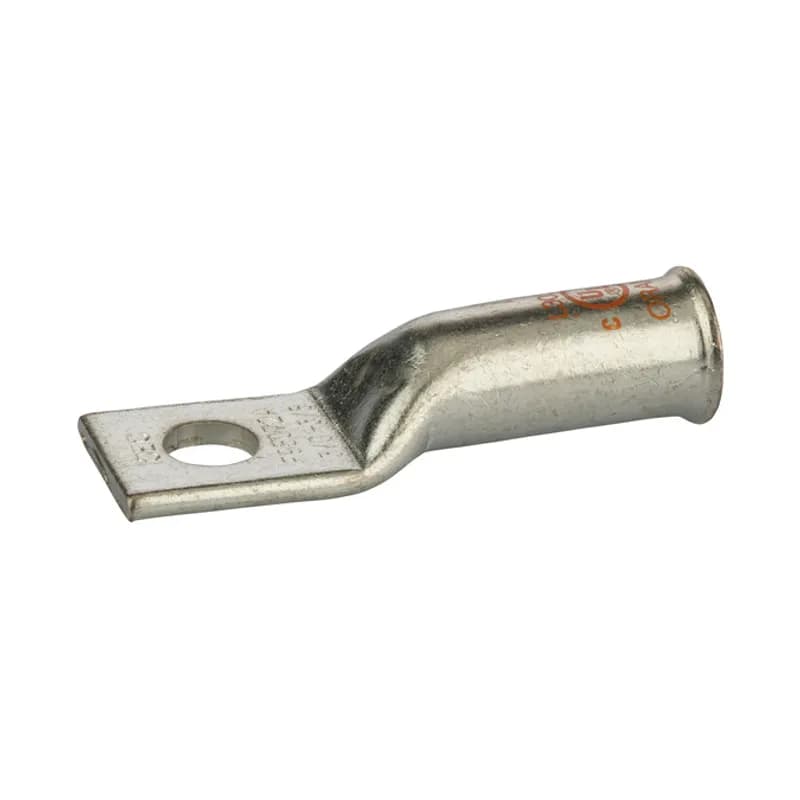

1 Hole Long Barrel Copper Compression Lug for Flexible Copper Cable 3/0 AWG - 3/8" Bolt Compression lugs for flexible copper cables are connects that have a gentle, continuous flared end to ensure ease of cable insertion of flexible and extra flexible cables such as locomotive, welding, mining cable and more. The flared end also reduces pressure on the cable strands after installation and protects them from chafing and breakage as a result of cable movement. Tin-plated for corrosion resistance. Rated 600 volts for copper cables only. Single mounting hole.
