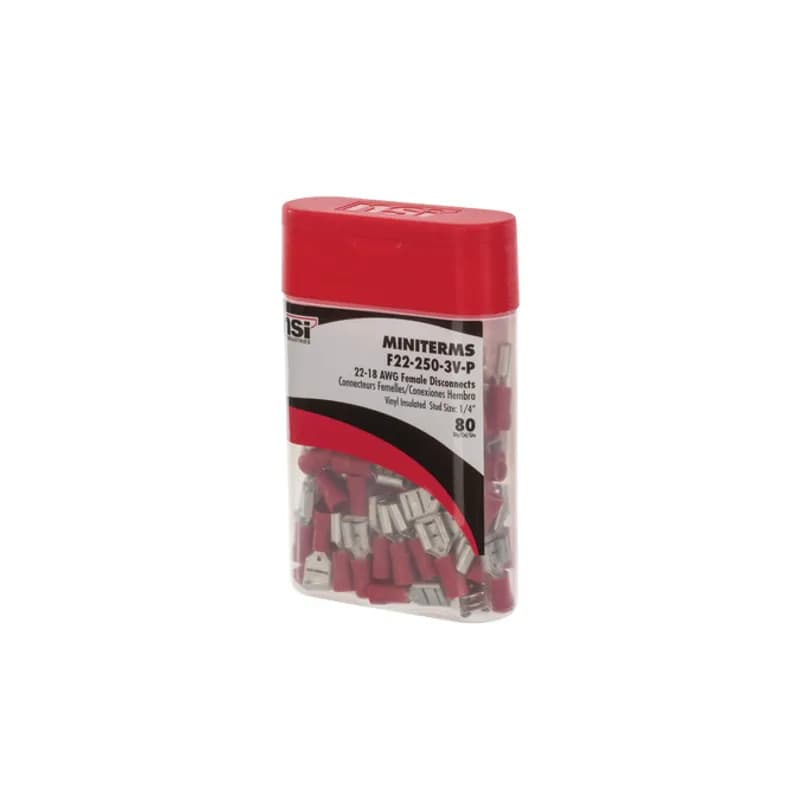

NSI Industries F22-250-3V-P - 22-18 AWG Vinyl Insulated Female Disconnect with 0.250 Stud - 80 Count Vinyl Insulated Female Disconnects are entirely covered in an insulating vinyl. Electro tin plated, vinyl (PVC). 300V, 75 degrees C. FEATURES: STYLE: Female Disconnect MATERIAL: Vinyl QUANTITY: 80 Count WIRE SIZE: 22-18 STUD SIZE: 0.250
NSI Industries

F22-250-3V-P

UPC: 662381200884

Contact for Pricing

Minimum Qty: 80

Multiplier: 80

*Contact for lower quantities*

Overview

The NSI Industries F22-250-3V-P is a vinyl-insulated female disconnect designed for 22-18 AWG wire sizes. This component features a 0.250 stud size, ensuring secure and reliable connections in electrical applications. Each disconnect is entirely covered in insulating vinyl (PVC) for enhanced safety and protection. The electro tin plating on the conductor material provides corrosion resistance and optimal conductivity. Rated for 300V and a maximum operating temperature of 75 degrees C, this disconnect is suitable for a range of industrial and commercial wiring tasks. The package contains 80 individual female disconnects, offering a cost-effective solution for projects requiring multiple connections. Its construction prioritizes electrical insulation and mechanical integrity, making it a dependable choice for wire termination. The F22-250-3V-P is a practical component for building control panels, machinery wiring, and other electrical assemblies where secure and insulated connections are paramount. Ensure proper crimping for optimal performance and longevity of the connection.
  • 22-18 AWG wire size compatibility
  • 0.250 inch stud size for secure connection
  • Fully vinyl (PVC) insulated for electrical safety
  • Electro tin plated for corrosion resistance
  • Rated for 300V and 75°C operation

Specifications

Application
Wire Termination
Color
Red
Environmental Conditions
75 C
Material
Vinyl Insulation
Material
Vinyl
Number Of Terminals
1
Size
22-18 AWG
Special Features
Vinyl Insulated Female Disconnect 22-18 AWG - 80 Pcs Pro Pack
Standard
cULus
Terminal Size
.250 x .032 IN
Type
Vinyl Insulated Female Disconnect
Voltage Rating
300V
Voltage Rating
300 V
Warranty
1 Year
Wire Size
22-18 AWG
Package Dimensions (L x W x H)
0.826 IN x 0.259 IN x 0.036 IN
Package Dimensions (L x W x H)
20.9804 mm x 6.5786 mm x 0.9144 mm
Package Weight (Imperial)
0.260 L
Package Weight (Metric)
0.118 kg
22-18 AWG Vinyl Insulated Female Disc .250X.032 Tab - 100 Per Pack

F22-250-3V

22-18 AWG Vinyl Insulated Female Disc .250X.032 Tab - 100 Per Pack

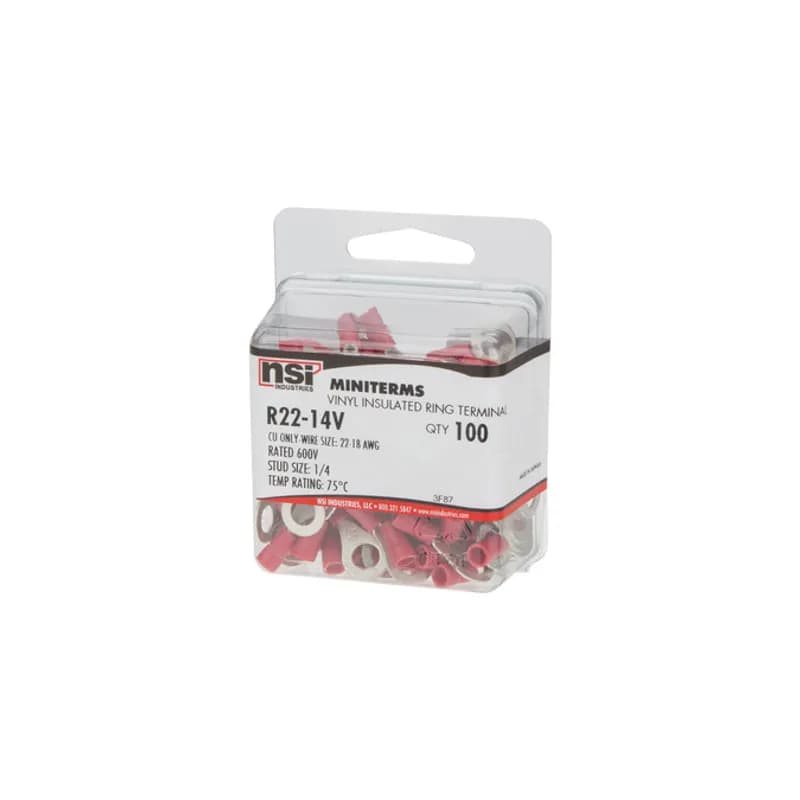

22-18 AWG Vinyl Insulated Ring 1/4" Stud, 100 Per Pack
