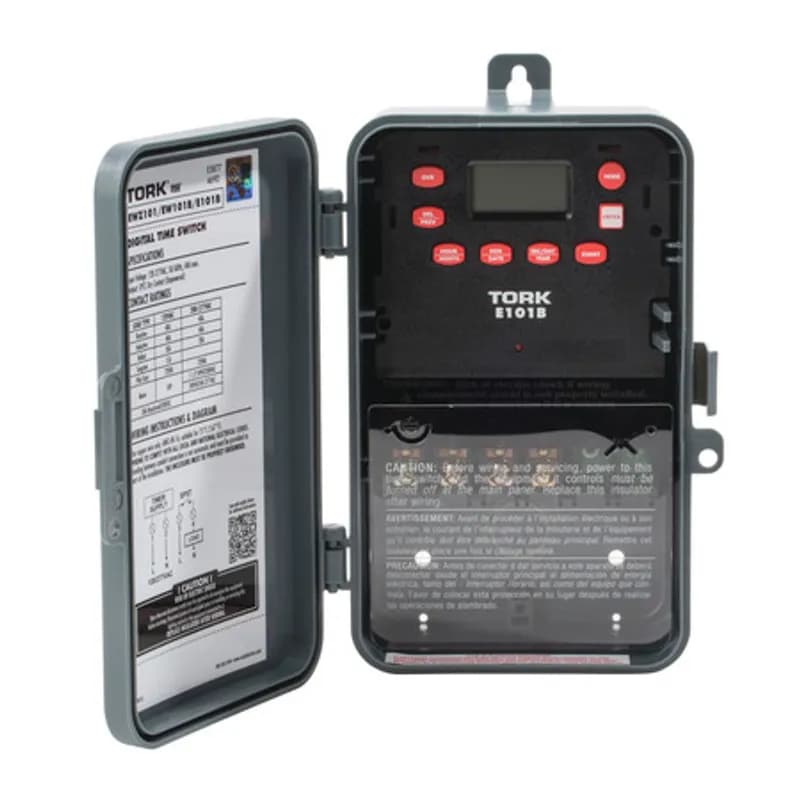

NSI Industries E101B - The TORK E101B 24-Hour Digital Timer is designed for a wide range of applications and has a plastic enclosure for indoor or outdoor use. Automate your home or office to save energy and money using the intuitive programming interface. Features up to 20 different on/off times, a 4-day battery backup and a Noryl plastic cover with a locking hasp. Designed for indoor or outdoor loads such as lights, heaters, air conditioners, water heaters, outdoor signage, sump pumps or ventilation fans.
NSI Industries

E101B

UPC: 786261824011

Contact for Pricing

Overview

The NSI Industries TORK E101B 24-Hour Digital Timer (SKU: E101B) offers robust automation for diverse indoor and outdoor applications. Its intuitive programming interface allows for up to 20 distinct on/off times within a 24-hour cycle, providing precise control over lights, heaters, air conditioners, water heaters, outdoor signage, sump pumps, and ventilation fans. Engineered with a durable Noryl plastic enclosure and a locking hasp, this timer is built for reliable operation in demanding conditions. It features a single output channel with automatic voltage detection for loads between 120 and 277VAC at 50/60Hz, and is rated for motor loads up to 1-2HP. The E101B operates effectively within a wide temperature range of -40°F to 149°F (-40°C to 65°C). A 4-day battery backup, powered by a supercapacitor, ensures uninterrupted operation during power outages. Inrush current limiting technology safeguards the relay contacts against electrical surges, enhancing longevity. Since 1922, TORK has been a pioneer in time switch technology, and the E101B exemplifies their commitment to dependable and efficient energy management solutions for homes, offices, factories, and public facilities.
  • 24-hour digital timer with up to 20 ON/OFF settings
  • Durable Noryl plastic enclosure for indoor/outdoor use
  • 4-day battery backup via supercapacitor
  • Handles 120-277VAC, 50/60Hz and 1-2HP motor loads
  • Wide operating temperature range: -40°F to 149°F

Specifications

Action
SPST
Application
NSI
Base
Screw
Contact Rating
120-277 VAC
Enclosure
NEMA 3R Plastic Indoor-Outdoor
Environmental Conditions
-40 to + 149 F
Frequency
50/60 Hz
Frequency Rating
50-60 Hz
Initiation
Contact
Material
Noryl plastic
Mounting
Screw Mount
Number Of Poles
1
Operating Temperature
-40 to + 149 F
Phase
Single Phase
Poles
1
Series
Tork
Size
L=5.062 - H-8.312 - W=3.062 IN
Special Features
20 On-Off Set Points - Daylight Savings Auto Adjustment - Leap Year Automatic Compensation
Standard
UL917
Timing Range
24 Hour
Type
24 Hour Time Switch - 1 Or 2 Channel
Voltage Rating
120-277 VAC
Package Dimensions (L x W x H)
3.062 IN x 5.062 IN x 8.312 IN
Package Dimensions (L x W x H)
7.7775 cm x 12.8575 cm x 21.1125 cm
Package Weight (Imperial)
1.458 L
Package Weight (Metric)
0.661 kg

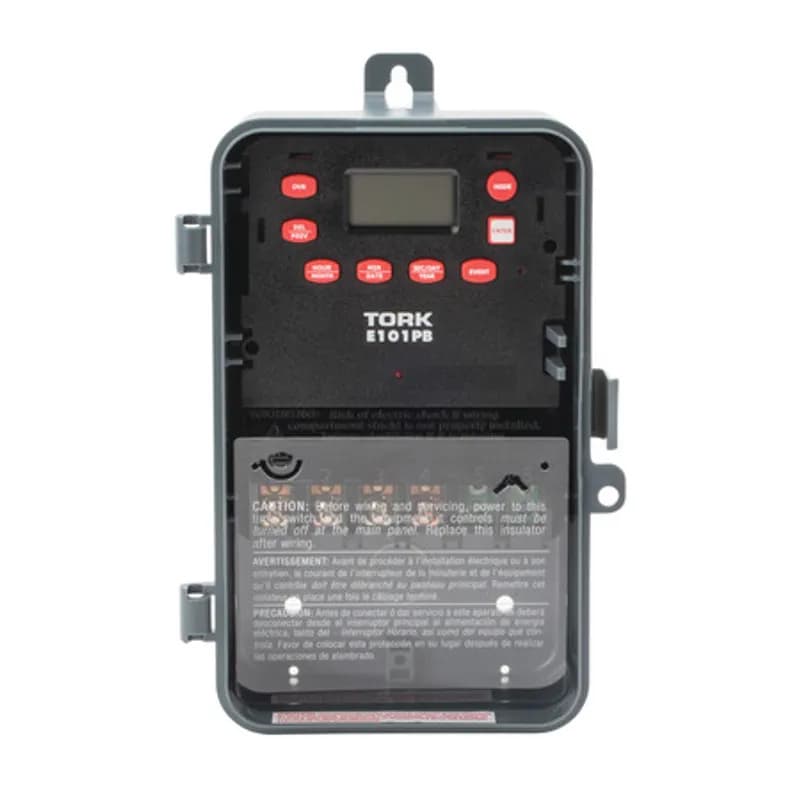

The TORK E101PB 24-Hour Digital Timer is designed for a wide range of applications and has a plastic enclosure for indoor or outdoor use. Automate your home or office to save energy and money using the intuitive programming interface. Features up to 20 different on/off times, a 4-day battery backup, 120 Volt rating and a Noryl plastic cover with a locking hasp. Designed for indoor or outdoor loads such as lights, heaters, air conditioners, water heaters, outdoor signage, sump pumps or ventilation fans.

E101PB

The TORK E101PB 24-Hour Digital Timer is designed for a wide range of applications and has a plastic enclosure for indoor or outdoor use. Automate your home or office to save energy and money using the intuitive programming interface. Features up to 20 different on/off times, a 4-day battery backup, 120 Volt rating and a Noryl plastic cover with a locking hasp. Designed for indoor or outdoor loads such as lights, heaters, air conditioners, water heaters, outdoor signage, sump pumps or ventilation fans.
Digital Timer SPST

EW101B

Digital Timer SPST

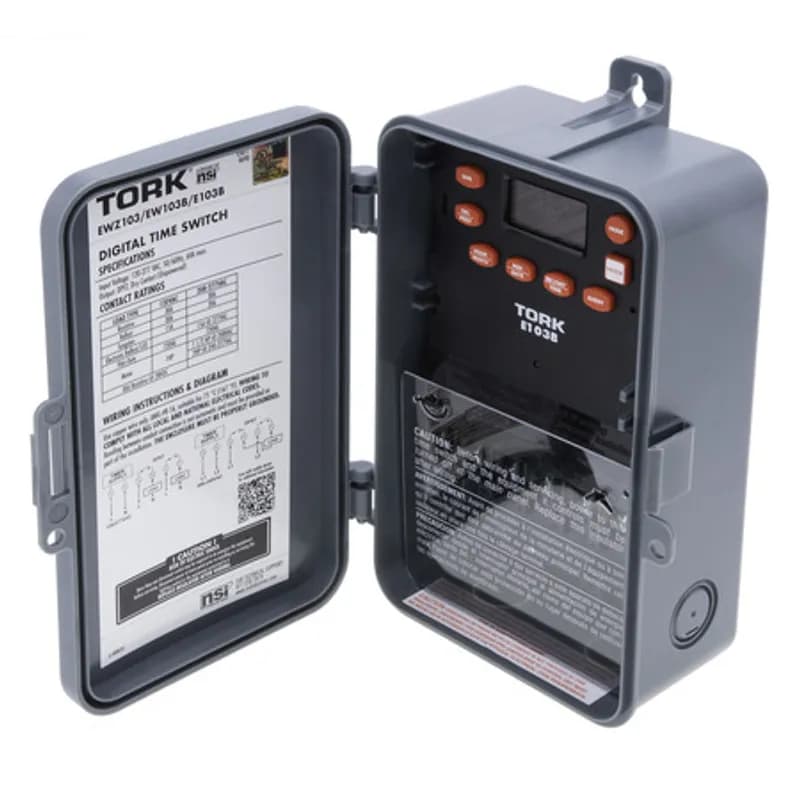

Digital Timer DPST

EW103B

Digital Timer DPST
Astro Digital Timer 2CH Light Con Mech

EWZ201C-MB

Astro Digital Timer 2CH Light Con Mech

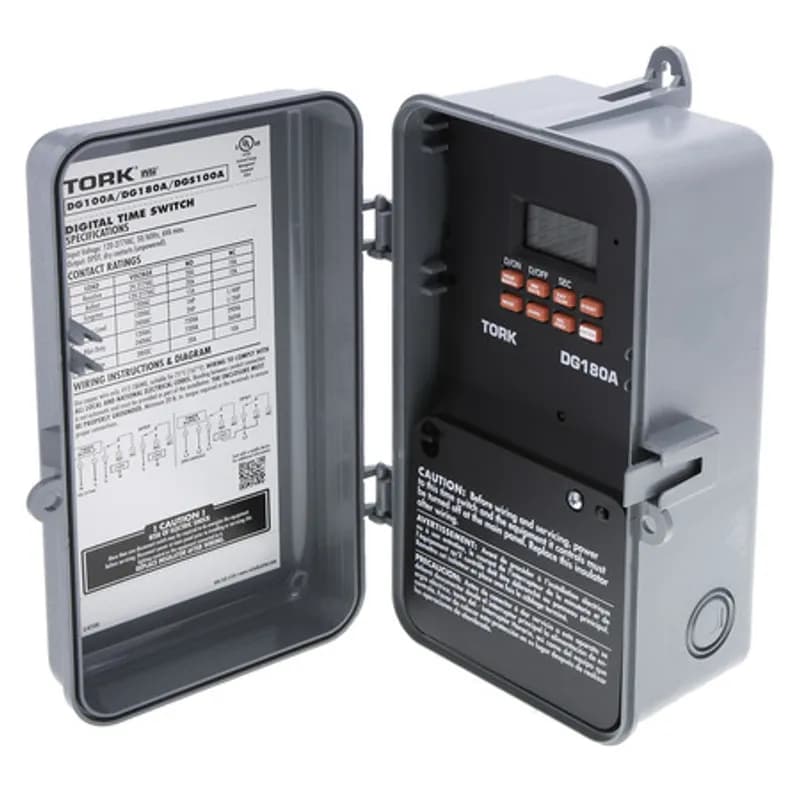

The TORK DG180A 24-Hour/7-Day Multipurpose Digital Timer is designed for 20 amp / 120-277 volt loads and has a plastic enclosure for indoor/outdoor use. Automate your home or office to save energy and money, using the intuitive programming interface to set different on/off times each day or to cycle loads on various days. Designed for commercial applications in the home, office, factory, church or school, including indoor/outdoor lighting, heaters, air conditioners, water heaters, warning signs or traffic lights
