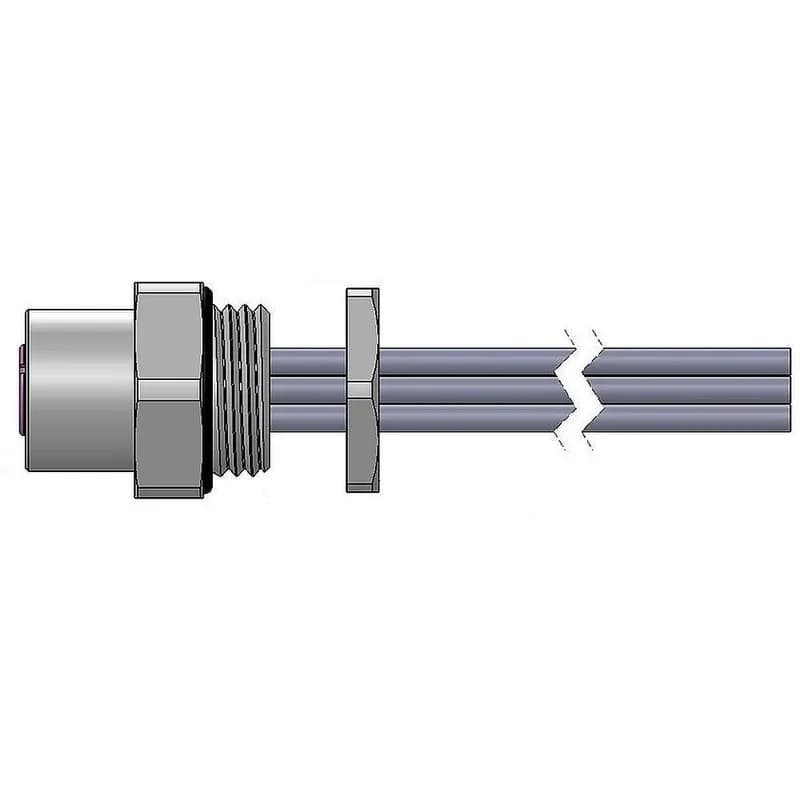

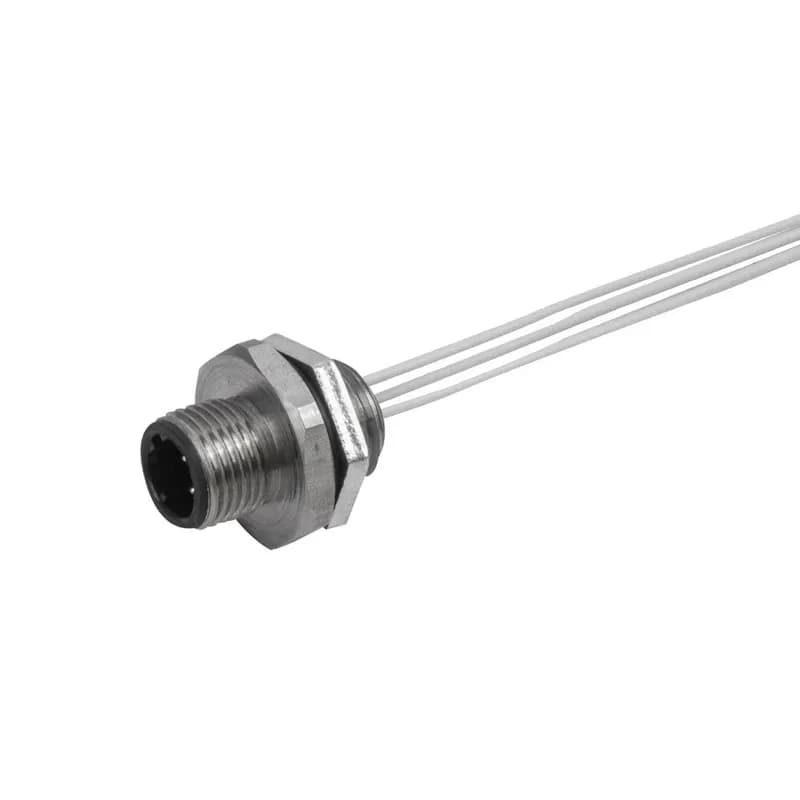

NSI Industries E04R0010P24 - M12 Etherlink Receptacle, Male, 4 pole, 1', 24 AWG
NSI Industries

E04R0010P24

UPC: 785411038346

Contact for Pricing

Overview

The NSi Industries M12 Etherlink Receptacle, identified by SKU E04R0010P24, is engineered to deliver dependable Ethernet connectivity within demanding industrial environments. This male receptacle is equipped with a 4-pole, D-coded configuration, making it fully compatible with CAT5e data transmission standards. Its construction incorporates a durable black polyamide insert, paired with copper alloy contacts that feature gold plating to guarantee optimal signal integrity and longevity. The inclusion of an NBR O-ring enhances the receptacle's sealing capabilities, providing protection against environmental factors. This connector is rated for a maximum of 300 Volts and a maximum of 4 Amps, and it utilizes 24 AWG wire for its internal connections. For streamlined installation, the receptacle comes with an integrated 1-foot cable. It is designed to operate reliably across a wide temperature range, from -40°C to 105°C (which equates to -40°F to +221°F). This M12 receptacle is specifically developed for applications in industrial Ethernet networking, automation, and control systems, where the establishment of robust and secure data connections is paramount. This product is proudly manufactured in the US.
  • M12 x 1 Ethernet Receptacle, Male
  • 4-Pole, D-Coded Configuration
  • 24 AWG Wire Gauge
  • 1-foot Cable Length
  • 300V Max, 4A Max Rating

Specifications

Amperage Rating
4 A
Color
Ivory
Conductor Material
Copper
Height
0.93 in
Length
12 in
Length
304.8 mm
Material
Aluminum
Maximum Operating Temperature
167 F
Minimum Operating Temperature
-4 F
Number Of Poles
4
Voltage Rating
125 VDC
Width
23 IN
Width
16 mm
Package Dimensions (L x W x H)
1 FT x 0.734 IN x 0.765 IN
Package Dimensions (L x W x H)
0.3048 m x 1.8644 cm x 1.9431 cm
Package Weight (Imperial)
0.003 L
Package Weight (Metric)
0.001 kg

Similar Products

E04S0010P24

E04T0010P

Maximum Operating Temperature: 221 F

E04W0010P16

Maximum Operating Temperature: 221 F

E04Z0010P

Maximum Operating Temperature: 221 F

E04Z0010P1

E04A0066BA5

Color: Black

Length: 79.2 in

Temperature Rating, Maximum: 167.00000 F

You May Also Be Interested In

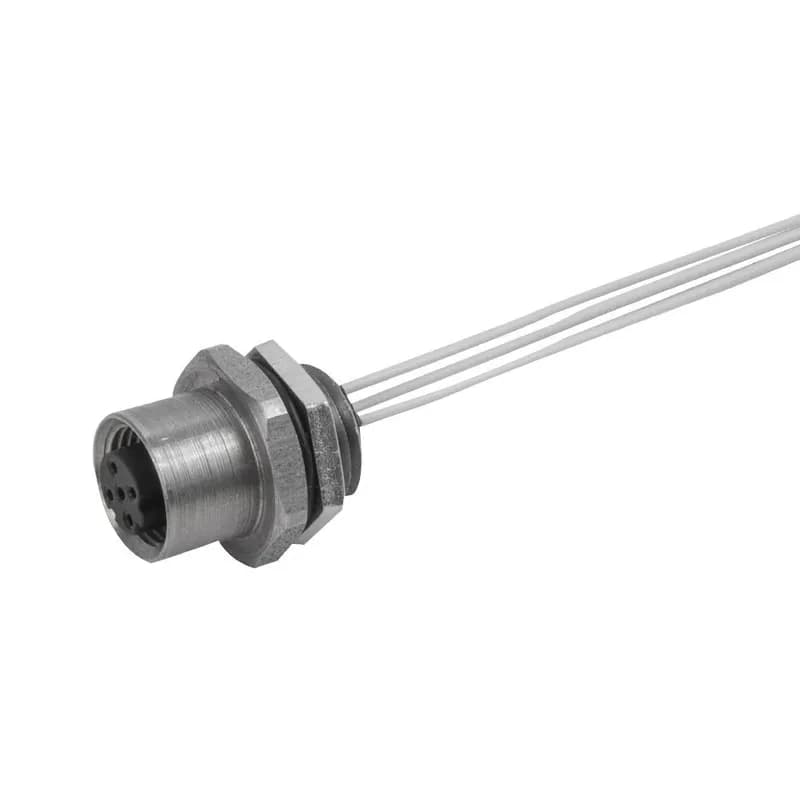

M12 Etherlink Receptacle, Female, 4 pole, 1', 24 AWG
