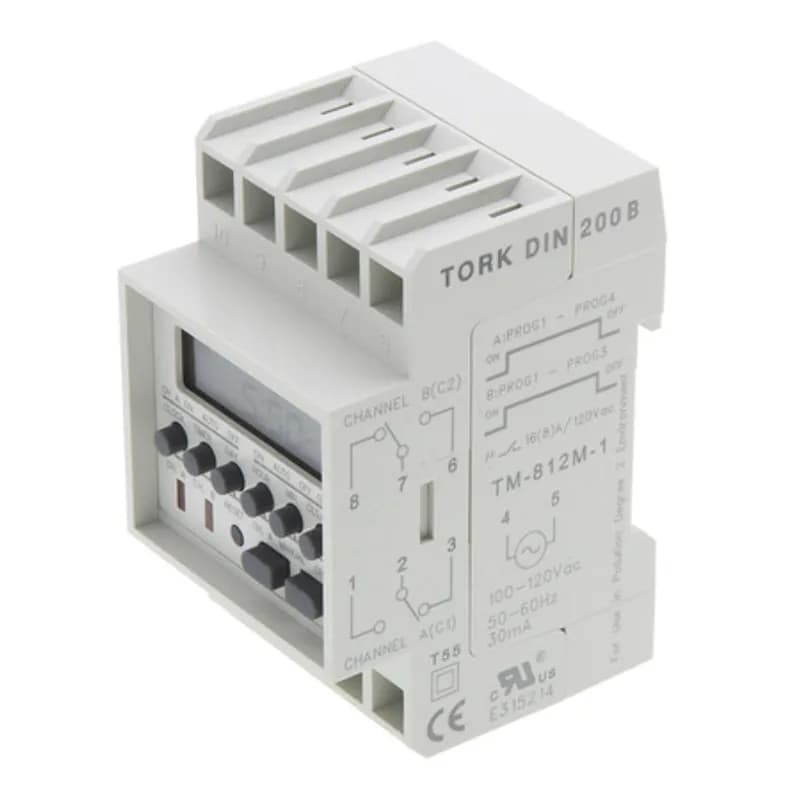

NSI Industries DIN200B - The TORK DIN200B 7-Day DIN-Mounted Digital Timer is designed for DIN rain mounting in indoor or outdoor applications. Automate your home or office to save energy and money using the intuitive programming interface and light sensitive activation to activate lights or signage when the ambient light level drops below a customizable threshold. Features two output channels and SPDT dry contracts, rated for 120VAC and 50/60Hz Input. Designed for applications in the home, office or panel building such as indoor/outdoor lighting, security systems or HVAC equipment.
NSI Industries

DIN200B

UPC: 786261821935

Contact for Pricing

Overview

The NSI TORK DIN200B is a versatile 7-day DIN-mounted digital timer designed for precise scheduling and automation in a wide range of applications. Engineered for reliability, this timer features two independent output channels, each with SPDT dry contacts, capable of handling general purpose loads up to 8A or resistive loads up to 16A at 120VAC. The DIN200B offers granular control with individual programs for each day of the week, allowing for up to 4 ON/OFF set points on Channel A and 3 ON/OFF set points on Channel B. The minimum setting interval is 1 minute, ensuring flexibility for complex schedules. Manual override functionality is included, allowing temporary manual control until the next scheduled operation resumes automatic function. The timer operates on a 120VAC, 50/60Hz input supply and features a battery backup to retain time and schedule settings during power outages, ensuring continuous operation. Its robust design is suitable for both indoor and outdoor panel building applications, including the automation of indoor/outdoor lighting, security systems, and HVAC equipment. The DIN200B mounts directly to a standard 35mm DIN rail (#50022) or can be surface-mounted using the supplied adapter. With an operating temperature range of 14°F to 113°F (-10°C to +45°C), it is built to withstand various environmental conditions. Trust in TORK, a pioneer in time switch technology since 1922, for dependable and efficient automation solutions.
  • 7-Day scheduling with individual programs per day
  • Two output channels (4 ON/OFF for Ch A, 3 ON/OFF for Ch B)
  • SPDT dry contacts, rated 8A General Purpose / 16A Resistive @ 120VAC
  • DIN rail mountable (35mm) or surface mountable
  • Battery backup for time and schedule retention

Specifications

Action
SPDT
Application
NSI
Base
Screw
Contact Rating
120 VAC
Environmental Conditions
14 to 131 F
Frequency
50/60 Hz
Frequency Rating
50-60 Hz
Initiation
Contact
Mounting
Screw Mount
Mounting Type
DIN Rail
Number Of Poles
1
Operating Temperature
14 to 131 F
Phase
Single Phase
Poles
SPDT
Series
Tork
Size
L=2.066 - H=3.346 - W=2.362 IN
Special Features
SPDT 2 Channel 7 Day Din Rail Time Switch With 8 Pairs Of On-Off Set Points
Standard
cRUus
Timing Range
7 Day
Type
7 Day Din Rail Time Switch
Voltage Rating
120 VAC
Package Dimensions (L x W x H)
3.346 IN x 2.066 IN x 2.362 IN
Package Dimensions (L x W x H)
8.4988 cm x 5.2476 cm x 5.9995 cm
Package Weight (Imperial)
0.424 L
Package Weight (Metric)
0.192 kg
