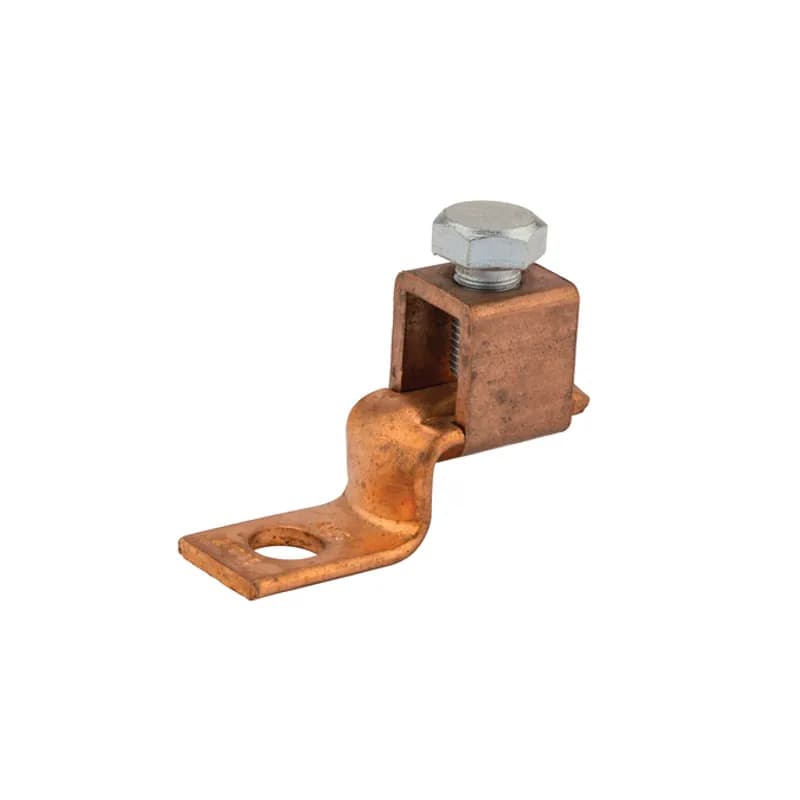

NSI Industries DE706 - Copper Solderless Lug 1/0-6 AWG Made of 99.98 pure electrolytic copper. Steel-plated screws to prevent rusting. 25 to 70 ampere size have slotted head screws. Larger sizes have hex head screws. Rated 600 volts max. UL 486 Listed. Temperature rating 90 degrees C.
NSI Industries

DE706

UPC: 662381005144

Documents & Media
Technical Bulletin

Contact for Pricing

Overview

The NSI Industries DE706 is a high-quality, single-hole copper solderless lug designed for reliable electrical connections. Constructed from 99.98% pure electrolytic copper, this lug ensures excellent conductivity and durability. It is engineered to accommodate copper wire ranges from 1/0 AWG to 8 AWG, making it suitable for a variety of industrial and commercial applications. The DE706 features steel-plated screws that resist rusting, ensuring long-term performance even in challenging environments. For wire sizes 25 to 70 amperes, slotted head screws are utilized, while larger sizes, including the DE706, are equipped with hex head screws for secure tightening. This lug is rated for a maximum of 600 volts and carries a UL 486A/B Listing, confirming its adherence to stringent safety and performance standards. The maximum operating temperature for the DE706 is 90°C. Its robust construction and UL certification make it a dependable choice for power distribution, panel building, and other electrical infrastructure projects. The DE706 is manufactured in the USA, underscoring its commitment to quality and domestic production. Specifications include a 1/4" mounting bolt size and a 125 ampere rating. The lug dimensions are L: 1.970", W: 0.630", H: 0.880", with a tang length of 0.500" and a tang thickness of 0.130". The mounting hole diameter (E) is 0.280". Each standard carton contains 25 units.
  • Constructed from 99.98% pure electrolytic copper for superior conductivity.
  • Steel-plated screws prevent rusting for enhanced durability.
  • Accommodates copper wire sizes from 1/0 AWG to 8 AWG.
  • Rated for 600 volts maximum and a temperature rating of 90°C.
  • UL 486A/B Listed for reliable and safe electrical connections.

Specifications

Amperage Rating
125 Amps
Application
NSI
Cable Size
1/0-6 AWG
Color
Copper
Environmental Conditions
90 C
Material
Copper
Number Of Holes
1
Size
L=1.97 - H=.880 - W=.630 IN
Special Features
1/0-6 AWG - CU Only - 25 Pack
Standard
UL486B
Type
Copper Single Lug
Voltage Rating
600 V
Warranty
1 Year
Package Dimensions (L x W x H)
1.97 IN x 0.63 IN x 0.88 IN
Package Dimensions (L x W x H)
5.0038 cm x 16.002 mm x 22.352 mm
Package Weight (Imperial)
2.700 L
Package Weight (Metric)
1.225 kg
