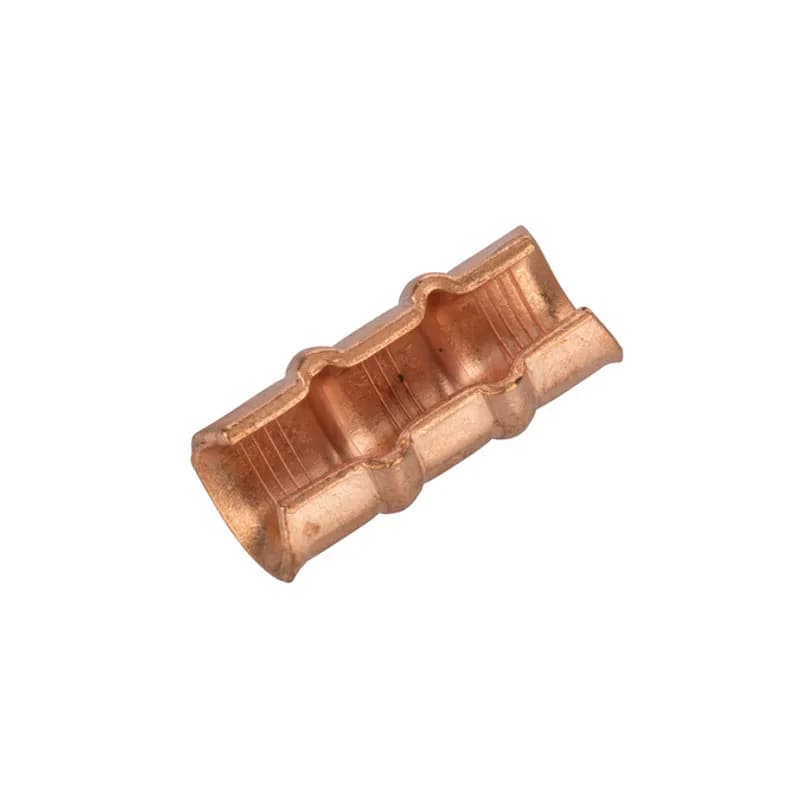

NSI Industries CT-107 - Copper C Tap Grounding Connector for 1 to 3 AWG Copper "C" Taps ensure positive, all around compression with low-resistance and high pull-out values. Made of high conductivity copper, they satisfy the requirements of NEC250-81 and 250-91 for connecting to the grounding electrode system. Rated 600 Volts.
NSI Industries

CT-107

UPC: 662381098061

Documents & Media
BrochureTechnical Bulletin

Contact for Pricing

Overview

The NSI Industries CT-107 is a high-conductivity copper "C" tap grounding connector designed for reliable and secure connections within grounding electrode systems. Engineered to meet the stringent requirements of NEC 250-81 and 250-91, this connector ensures positive, all-around compression, resulting in low-resistance connections and high pull-out values. Its robust construction from high conductivity copper guarantees consistent performance and durability. The CT-107 is specifically designed for copper conductors, accommodating main conductors from 1 AWG to 3 AWG and branch conductors from 2 AWG to 5 AWG. This range-taking capability simplifies inventory management for electrical contractors and maintenance professionals. Rated for 600 Volts, the CT-107 is suitable for a wide range of electrical installations. Its "C" shape facilitates quicker installation compared to traditional methods. This connector is cULus Listed 467 for Grounding & Bonding and UL467 Listed for Grounding & Bonding, providing assurance of its compliance with industry safety standards. The CT-107 is part of the NSI CT Series, known for its dependable compression connectors. Each standard carton contains 50 units, making it an efficient choice for projects of various scales. For tool and die crimping information, consult the manufacturer's specifications to ensure optimal performance and compliance. The black color code on the CT-107 indicates its specific wire size compatibility, aiding in quick identification during installation. Trust NSI Industries for essential grounding components that deliver safety and reliability.
  • High-conductivity copper construction for low resistance and high pull-out values.
  • Meets NEC 250-81 and 250-91 requirements for grounding electrode systems.
  • Accommodates main conductors 1 AWG to 3 AWG and branch conductors 2 AWG to 5 AWG.
  • Rated for 600 Volts for versatile application.
  • cULus Listed 467 and UL467 Listed for Grounding & Bonding.

Specifications

Application
Terminate, Splice, Tap Power Connectors
Color
Black
Conductor Size
1 AWG
Environmental Conditions
90 C
Finish
Copper
Material
Copper
Mechanical Durability
Single Use
Size
1-4 AWG
Special Features
1-4 AWG
Standard
UL486A
Tap Size
4 AWG
Temperature Rating
90 C
Type
C-Taps
Voltage Rating
600 V
Warranty
1 Year
Package Dimensions (L x W x H)
1.751 IN x 0.639 IN x 0.59 IN
Package Dimensions (L x W x H)
4.4475 cm x 16.2306 mm x 14.986 mm
Package Weight (Imperial)
3.500 L
Package Weight (Metric)
1.588 kg
