Contact for Pricing
Minimum Qty: 5
Multiplier: 5
*Contact for lower quantities*

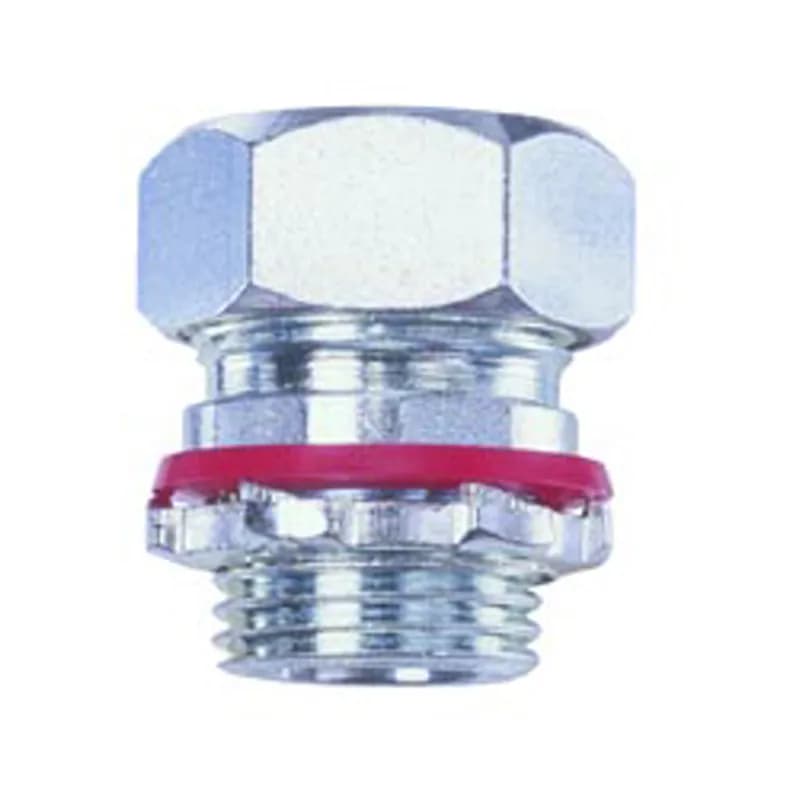

Overview
- Steel construction for durability and corrosion resistance
- 1" knockout size with 0.550-0.650" cord range compatibility
- Straight-mount design for secure cable entry and exit
- UL File No. E13938 and CSA File No. 52391 certified
- Meets hazardous location ratings: Class I, Div. 2; Class II, Div. 1 & 2; Class III, Div. 1 & 2
- Temperature range: -34°C to +105°C
- Complies with Coast Guard CG293 standards
Specifications
Application | These watertight fittings are designed for both indoor and outdoor applications. All fittings can be used in chemical and treatment plants as well as for offshore applications. Straight connector for use with portable cord provides liquid tight and water tight protection. Typical applications include wiring of motors, transformers, advanced machinery, refrigeration, and tools. |
Color | Beige |
Finish | Zinc Electroplated |
Material Quality | Steel |
Size | 1 IN |
Special Features | Watertight Fittings designed for indoor and outdoor applications |
Standard | cULus |
Type | Cord Grips |
Package Weight (Imperial) | 0.320 L |
Package Weight (Metric) | 0.145 kg |
Frequently Asked Questions
What is the cord range for the CG772-650?
The cord range for the CG772-650 is .550 to .650 inches.
Is the CG772-650 suitable for outdoor use?
Yes, the CG772-650 is designed for both indoor and outdoor applications.
What is the material of the CG772-650 connector?
The CG772-650 connector is made of steel.
What are the typical applications for this connector?
Typical applications include wiring of motors, transformers, advanced machinery, refrigeration, and tools.
What is the trade size of the CG772-650 connector?
The trade size of the CG772-650 connector is 1 inch.
What is the purpose of the CG772-650 connector?
The connector provides liquid tight and water tight protection for portable cords.
What is the finish of the CG772-650 connector?
The connector has a zinc electro-plate finish.
What certifications does the CG772-650 have?
The connector is certified under NEMA Standard FB-1 and UL514B.
What is the country of manufacture for the CG772-650?
The CG772-650 is manufactured in the USA.
Frequently Asked Questions about NSI Industries
What technical support does NSi Industries offer?
NSi Industries offers dedicated technical support through their toll-free technical support line at 888.500.4598. They are committed to customer satisfaction and promise to make every reasonable effort to remedy any product or service issues. Additionally, customers can contact their customer service team at 800.321.5847 or email [email protected] for further technical assistance.
What are the key features of NSi Industries products?
NSi Industries products feature exceptional versatility, reliability, and safety across multiple industrial automation categories. Key features include insulation piercing connectors with no wire stripping required, watertight and corrosion-free designs, wide wire range compatibility (from #14 AWG to 750 MCM), and the ability to install on energized conductors. Their product lines like Easy-Tap™ Connectors and TORK® Digital Timers demonstrate advanced capabilities such as turbo spacers, double shear-head bolts, astronomic scheduling, and enhanced switching technologies.
What environmental ratings do NSi Industries products have?
NSi Industries enclosures feature robust environmental ratings, including IEC 60529 IP66 certification, NEMA Type 1, 2, 3, 4, 4X, 12, and 13 ratings, and UL/CSA standards. Their products are designed for both indoor and outdoor applications, with protection against dust, water, corrosion, and extreme temperatures ranging from -40°F to 266°F.
How are NSi Industries products typically installed?
NSi Industries products are typically installed using detailed mechanical and digital wiring diagrams that specify precise connection methods for various voltage configurations (120V, 208V, 240V, 277V, 480V). Installation involves carefully following product-specific wiring schematics, which include clear terminal block connections, ground wire specifications, and phase alignment requirements. Professional electricians and technicians should reference the specific product's wiring diagram to ensure correct installation and electrical compliance.
What industries and applications are NSi Industries products used for?
NSi Industries provides electrical and automation products for diverse industrial applications, including lighting control, electrical enclosures, wire management, connectors, and sensor technologies. Their product lines serve commercial, industrial, and infrastructure markets with solutions for electrical infrastructure, control systems, and safety-critical environments.
What are the main product lines offered by NSi Industries?
NSi Industries offers a comprehensive range of industrial products including TORK® Photocontrols, Polaris™ Lighting Controls, Easy-Twist™ Grounding Solutions, Miniterms, Cable Ties, Connectors, Enclosures, Occupancy Sensors, and Wire Management systems. Their product lines span electrical components, control devices, and industrial automation accessories designed for diverse applications in commercial and industrial settings.
What accessories are available for NSi Industries products?
NSi Industries offers a range of accessories for their product lines, including photocontrol accessories like replacement caps, mounting brackets, and receptacles. Specific accessories include shorting caps, open caps, 3-pin and 7-pin receptacles, and utility mounting brackets for conduit photocontrols. For specialized applications, NSi recommends contacting their customer service team to discuss custom accessory needs.
