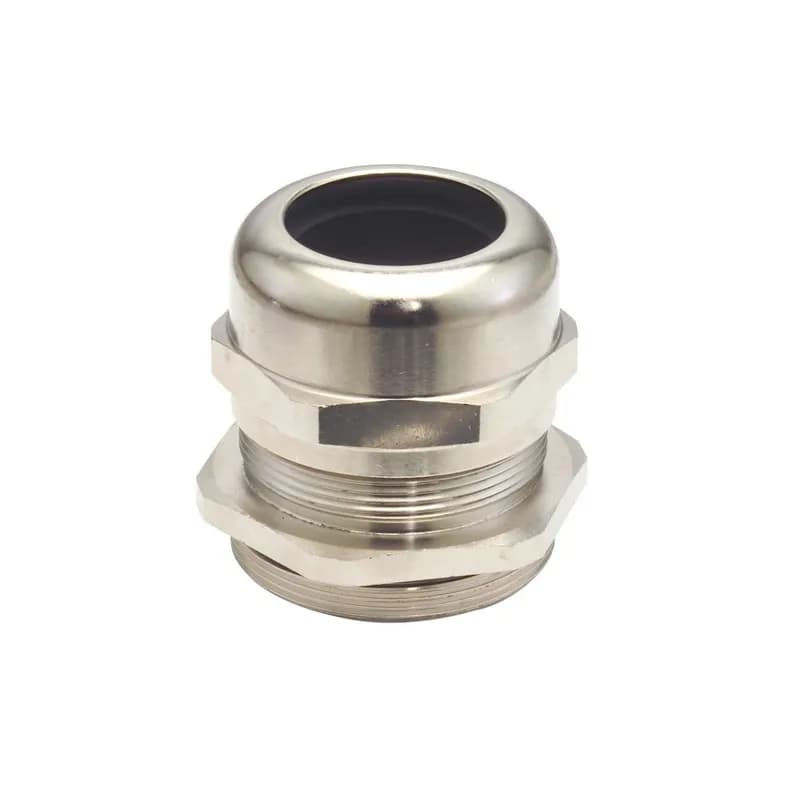

NSI Industries BRM16AA - Dome Cap Standard Cable Gland, nickel plated brass, M16, cable range .16 - .31 with o-ring
NSI Industries

BRM16AA

UPC: 785411486536

Contact for Pricing

Overview

The NSi Industries BRM16AA is a standard dome cap cable gland constructed from nickel-plated brass, providing corrosion resistance for industrial environments. This M16 threaded gland accommodates cable diameters from 0.16 to 0.31 inches (5-9mm), suitable for round cables. It features a BUNA-N O-ring and neoprene seal to ensure a watertight connection with IP68 and IP69 ratings, equivalent to NEMA 6P standards. The gland includes a polyamide insert for strain relief and is supplied with a locking nut for secure installation. Designed for electrical and mechanical installations requiring protection against dust and water ingress, the BRM16AA is ideal for harsh conditions. Its nickel-plated brass construction resists corrosion, while the integrated O-ring and seal maintain a reliable barrier against environmental contaminants. The M16 threading ensures compatibility with standard enclosures and panels. Manufactured in the USA, this cable gland meets the demands of critical applications where durability and precision are essential.
  • Nickel-plated brass construction for corrosion resistance
  • M16 threaded design for standard enclosures
  • Accommodates cable diameters 0.16–0.31 inches (5–9mm)
  • IP68/IP69 rated with BUNA-N O-ring and neoprene seal
  • Includes locking nut for secure strain relief

Specifications

Color
Ivory
Finish
Nickel Plated
Ip Rating
IP68/IP69
Material
Nickel-plated brass
Material Quality
Brass
Nema Rating
Type 6P
Operating Temperature, Maximum
212 F
Operating Temperature, Maximum
100 °C
Operating Temperature, Minimum
-4 F
Operating Temperature, Minimum
-20 °C
Size
M16
Temperature Rating
-20 to 100 Deg C C
Package Dimensions (L x W x H)
1.59 IN x 0.87 IN x 1.59 IN
Package Dimensions (L x W x H)
4.0386 cm x 2.2098 cm x 4.0386 cm
Package Weight (Imperial)
0.007 L
Package Weight (Metric)
0.003 kg
Dome Cap Standard EMC Cable Gland, nickel plated brass, 1/2" NPT, cable range .295 - .551

BRN4E13S

Dome Cap Standard EMC Cable Gland, nickel plated brass, 1/2" NPT, cable range .295 - .551
PG36, Nickel Plated Brass, Concentric, Cable Gland, 0.906 - 1.339

CRT-36

PG36, Nickel Plated Brass, Concentric, Cable Gland, 0.906 - 1.339

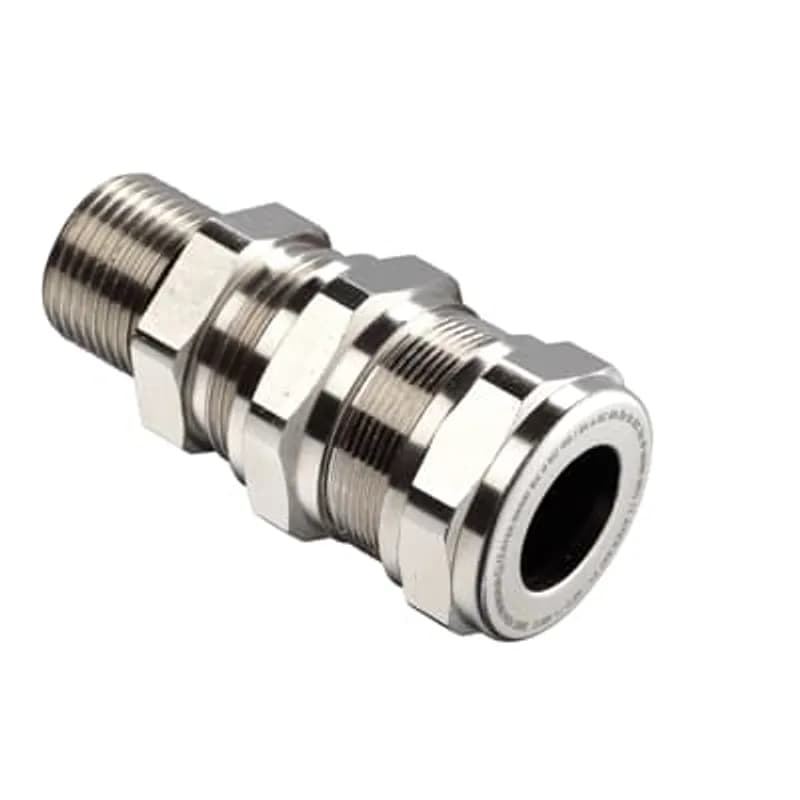

Double Compression Cable Gland, 3/4 Inch NPT Thread, Flameproof Ex d and Increased Safety Ex e, Suitable for use with SWA, SWB, and AWA Conduit, IP66 Rating, Inner Cable Range 12 to 16mm, Outer Cable Range 16 to 21mm, Nickel Plated Brass

EXN05AMC1

Double Compression Cable Gland, 3/4 Inch NPT Thread, Flameproof Ex d and Increased Safety Ex e, Suitable for use with SWA, SWB, and AWA Conduit, IP66 Rating, Inner Cable Range 12 to 16mm, Outer Cable Range 16 to 21mm, Nickel Plated Brass
Cable gland (IP 68 ? 5 bar), M12x1,5, for cable 3?6 mm

GPA M12

Cable gland (IP 68 ? 5 bar), M12x1,5, for cable 3?6 mm
Cable gland, M20, gray, 2 pack for Streamline modular

K77700416

Cable gland, M20, gray, 2 pack for Streamline modular
ENBR-WG-PG21-BL-A

1SNG609050R0000

ENBR-WG-PG21-BL-A

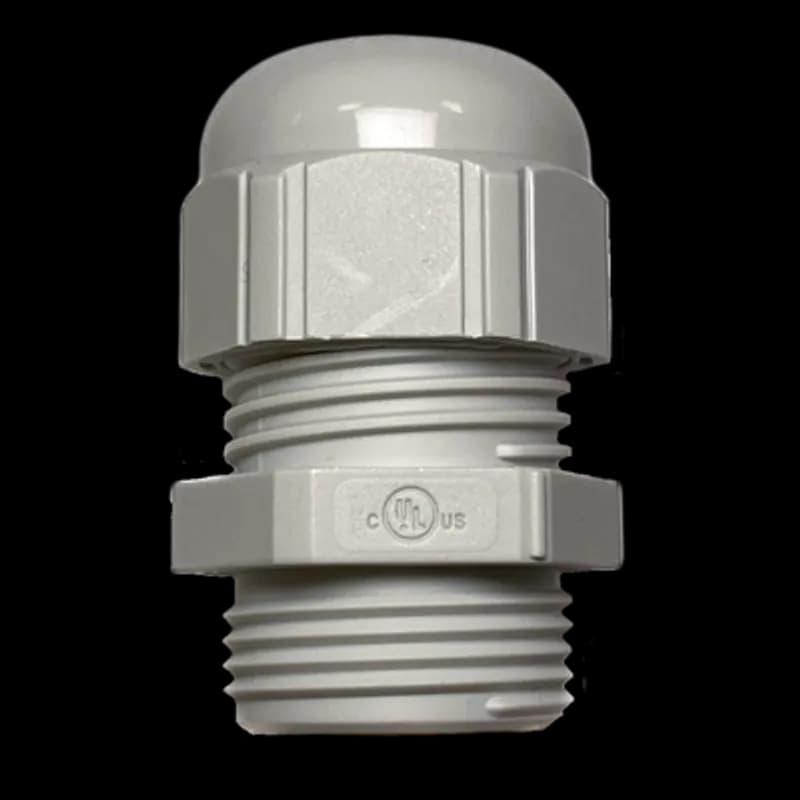

MA5-3002 Cabel gland M20
