NSI Industries
8-350L8
UPC: 662381026996
Contact for Pricing
Overview
- 8 ports for 350 MCM to 6 AWG copper or aluminum conductors
- 6061-T6 aluminum alloy with electro-tin plating for low contact resistance
- Two set screws per port for secure, vibration-resistant connections
- NEMA 1-3/4" mounting hole spacing (5/16" diameter) for standard compatibility
- Rated 600V, 90°C; meets ANSI C119.4 Class A and UL 486A/B standards
- Reusable design reduces inventory and maintenance costs
- Maximum torque: 40 in-lbs per set screw
Specifications
Application | Wire Termination |
Environmental Conditions | 90 C |
Number Of Poles | 1 |
Special Features | (8) 350 MCM-6 AWG |
Type | Transformer Lug |
Warranty | 1 Year |
Package Dimensions (L x W x H) | 4.31 IN x 7.62 IN x 1.38 IN |
Package Dimensions (L x W x H) | 10.9474 cm x 19.3548 cm x 3.5052 cm |
Package Weight (Imperial) | 2.750 L |
Package Weight (Metric) | 1.247 kg |
ELC74
The TORK ELC74 365/7-Day Astronomic Time Switch Panel is designed for 120-277 VAC loads and indoor or outdoor use. Automate your home or office to save energy and money using the intuitive programming interface and light sensitive activation to activate lights or signage when the ambient light level drops below a customizable threshold. Features four SPDT output channels with automatic voltage detection and automatic daylight saving adjustment. Designed for commercial applications including outdoor lighting, HVAC equipment, signage, store windows and security or parking lot lights.
LC200
Tork 2 Zone SPDT Lighting Control Use to control two different outdoor lighting circuits utilizing one photocell. Sign lighting can turn ON at one ambient light level while parking lot lighting turns ON at a different light level. APPLICATIONS: 24 Hour Convenience Stores Open Wall Parking Structures Large Canopies Building Perimeters Atriums FEATURES: INPUT VOLTAGE: 120/240/277VAC, 50/60Hz OUTPUT CONTACTS: SPDT NO. OF ZONES: 2 Zones TERMINAL RANGE: Relay #12AWG- input power terminals #14-#22AWG- TOD/sensor terminals accept #18-#22AWG. POWER CONSUMPTION: 5VA Maximum OPERATING TEMPERATURE: - 40 degrees to +140 degrees F (-40 degrees C to +60 degrees C) PHOTOSENSOR INPUT: EPC1 Included. DUAL OUTPUTS: With independent turn-ON adjustment for Stage 1 and Stage 2. LIGHT LEVEL ACTIVATION: Turn ON is user settable from 2 to 100 footcandle- Independent light level adjustment for each zone. Turn OFF is a maximum of 2 times turn ON level. Built-in delay ON of 30 seconds to avoid reaction to lightning or headlights. SWITCHED INPUT: Can be used with a time switch for photocell ON of two different lighting circuits at different ambient light levels, then time-of-day OFF. ENCLOSURE: Metal Indoor NEMA 1 with lockable hasp. MANUFACTURER: Tork, UPC: 786261821119 CONTACT RATINGS: GENERAL PURPOSE: 120/240 VAC NO: 20A NC: 10A 277 VAC NO: 12A BALLAST: 120 VAC NO: 20A NC: 10A 240/277 VAC NO: 6A NC: 3A TUNGSTEN: 120/240/277 VAC NO: 5A NC: 3A PILOT DUTY: 120/240 VAC NO: 470VA NC: 275VA 277 VAC NO: 690VA

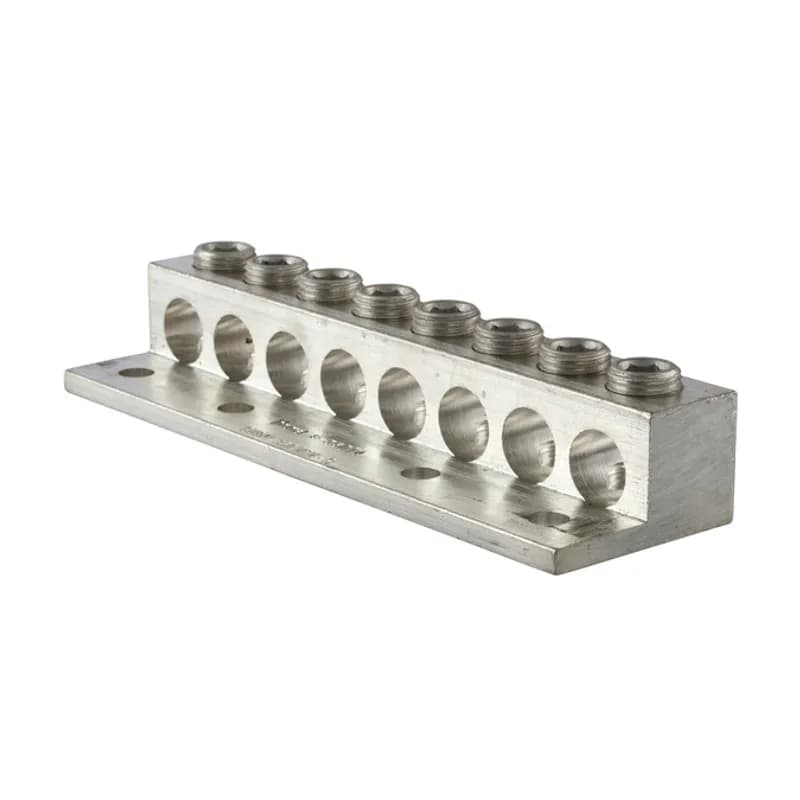

8-350T4
8 Port 4 Mounting Hole Aluminum Dual Rated Transformer Lug 350 MCM - 6 AWG Aluminum Dual Rated Transformer Lugs are versatile and reuseable set screw connectors made of 6061T-6 aluminum alloy for superior electrical and mechanical performance. Two set screws per wire hole ensure an exceptional connection. Electro-tin plated for low resistance. For use with copper or aluminum conductors. Mounting hole spacing is NEMA 1-3/4". Meets or exceeds ANSI C119.4 Class A. Rated 600 Volts. Temperature Rating 90 degrees C.
8-350LL10
8 Port 10 Mounting Hole Heavy Duty Dual Rated Transformer Lug 350 MCM - 6 AWG Heavy Duty Dual Rated Transformer Lugs are versatile and reusable set screw connectors made from high strength 6061-T6 aluminum alloy for superior electrical and mechanical performance. Two set screws per wire hole ensure an exceptional connection. Electro-tin plated for low contact resistance. For use with copper or aluminum conductors. Mounting hole spacing is NEMA 1-3/4". Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.
DIN200B
The TORK DIN200B 7-Day DIN-Mounted Digital Timer is designed for DIN rain mounting in indoor or outdoor applications. Automate your home or office to save energy and money using the intuitive programming interface and light sensitive activation to activate lights or signage when the ambient light level drops below a customizable threshold. Features two output channels and SPDT dry contracts, rated for 120VAC and 50/60Hz Input. Designed for applications in the home, office or panel building such as indoor/outdoor lighting, security systems or HVAC equipment.
C512HH
The TORK C512HH 12-Hour Spring-Wound In-Wall Twist Timer with a commercial-style metal faceplate is designed to control a variety of indoor appliances, motors and lights. Automate factories, offices or other buildings to save energy and money using the simple twist knob and reliable mechanical timekeeping. Features a HOLD setting to keep power on and fits into a standard electrical box for in-wall mounting. Designed for SPDT switch type on indoor loads such as ventilation fans, lighting, HVAC systems, motors, pumps or air compressors.
EJWT
The TORK EJWT 24-Hour Percentage Timer Switch is designed for a wide range of applications in the agriculture, industrial, pumping or livestock industries. Automate your home or facility to save energy and money using the two control dials, one of which sets the cycle time and the second of which sets the percentage of time that the timer will be on. Featuring a total of 960 different time combinations, this timer matches the needs of most industrial applications and meets NEMA-4X standards for water resistance. Designed for any application that requires a daily repeating cycle, such as poultry, livestock, agriculture, greenhouses, oil well pumping or ventilation.
A530M
The TORK A530M 30-Minute Spring-Wound In-Wall Twist Timer with an ivory faceplate is designed to control a variety of indoor appliances and lights. Automate your home or office to save energy and money using the simple twist knob and reliable mechanical timekeeping. Fits into a standard electrical box for in-wall mounting. Designed for indoor loads such as lights, whole house fans, air compressors, water heaters or motors.
