NSI Industries 600TP - Dual Rated Turn Prevent Lug 600 MCM - 2 AWG with 1/2 Inch bolt size: Dual Rated Turn Prevent Lug made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. For use with both copper and aluminum conductors. Rated 600V (2000V max. per UL486B). UL 486A/B Listed. Temperature Rating 90 degrees C.
NSI Industries

600TP

UPC: 662381002433

Documents & Media
Technical Bulletin

Contact for Pricing

Overview

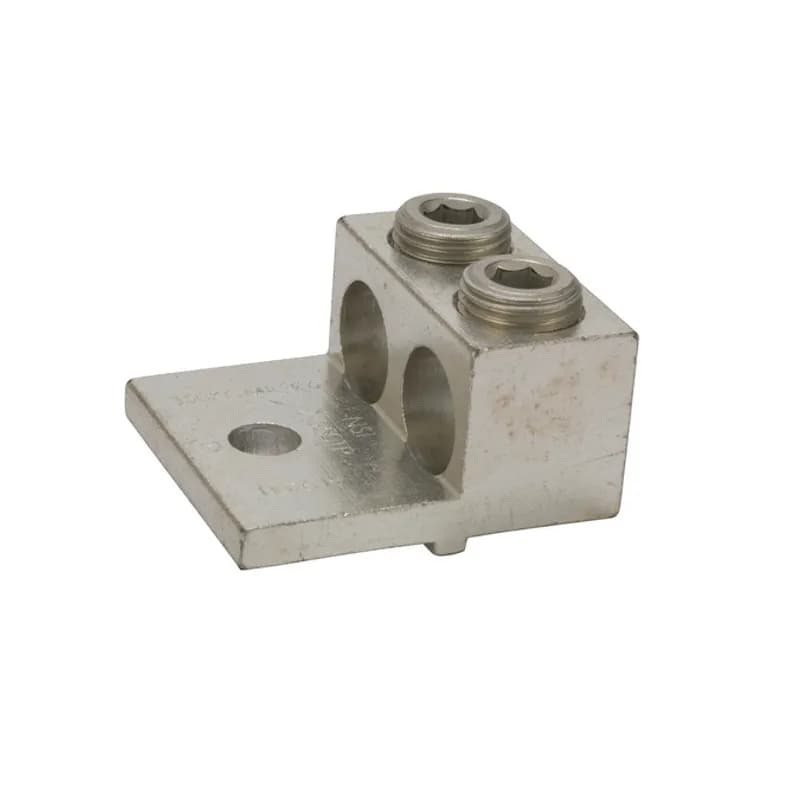

The NSI Industries 600TP is a robust Dual Rated Turn Prevent Lug designed for reliable electrical connections. Constructed from high-strength 6061-T6 aluminum alloy, this lug ensures superior electrical and mechanical performance. Its electro-tin plating significantly reduces contact resistance, promoting efficient current flow and longevity. Engineered for versatility, the 600TP is compatible with both copper and aluminum conductors, making it an adaptable solution for various wiring applications. This lug is rated for 600V, with a maximum rating of 2000V per UL486B, and operates efficiently at a temperature of 90°C. It is UL 486A/B Listed, confirming its adherence to stringent safety and performance standards. The integrated turn-prevent node on the bottom of the lug effectively prevents rotation during installation and under operational stress, ensuring a secure and stable connection. With a wire range accommodating 600 MCM down to 2 AWG, and a 1/2 inch mounting bolt size, the 600TP is suitable for heavy-duty applications. The lug's dimensions include a length of 3.18 inches, a width of 1.38 inches, and a height of 1.51 inches. Its tang length measures 0.88 inches (A) and 1.93 inches (B), with a tang thickness of 0.38 inches. The turn prevent features a length of 0.19 inches and a thickness of 0.63 inches. The mounting hole to turn prevent distance is 0.53 inches, and the hole diameter is 0.63 inches. The maximum torque value for this lug is 550 in./lbs., requiring a 3/8 inch hex wrench. Each standard carton contains 6 units. SKU: 600TP.
  • Large size set-screw connectors with wire holes stacked on top of each other to minimize the width of the connector.
  • Made of 6061T-6 aluminum alloy
  • Electro-tin plated for low contact resistance
  • For use with copper or aluminum conductors
  • Turn prevent node located on bottom prevents rotation of lug

Specifications

Application
Wire Termination
Connection Type
Screw Terminal
Environmental Conditions
90 C
Finish
Tin Plated
Material
Aluminum
Material
6061T-6 Aluminum Alloy
Number Of Poles
1
Series
Dual Rated Turn Prevent Lug
Size
600 MCM - 2 AWG
Special Features
600 MCM-2 AWG - Dual Rated - 6 Pack
Standard
UL486A/B L
Type
Aluminum Turn Prevent Lug
Voltage Rating
600 V
Warranty
1 Year
Package Dimensions (L x W x H)
3.18 IN x 1.38 IN x 1.51 IN
Package Dimensions (L x W x H)
8.0772 cm x 3.5052 cm x 3.8354 cm
Package Weight (Imperial)
1.728 L
Package Weight (Metric)
0.784 kg
