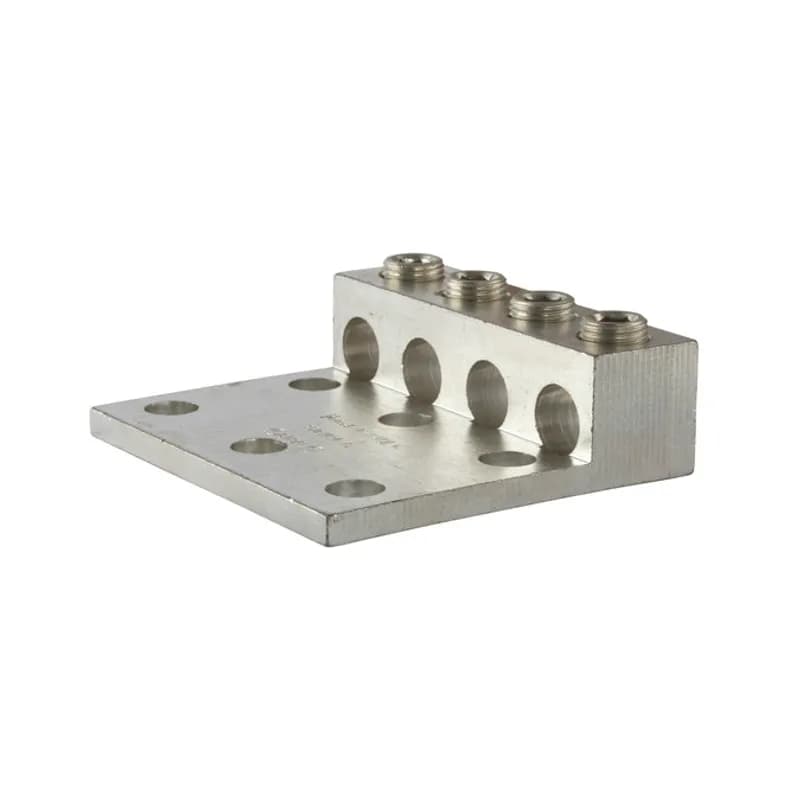

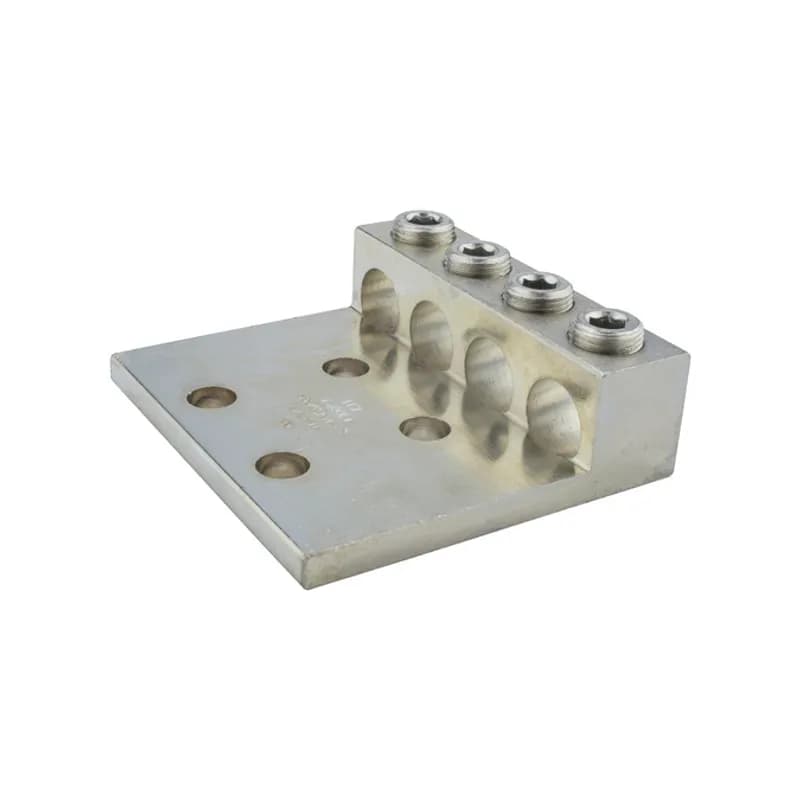

NSI Industries 4-600L4 - 4 Port Panelboard Lug 600 MCM - 2 AWG Large size set screw connectors with multiple mounting holes for a secure, turn-prevent connection. Made of 6061T-6 aluminum alloy. Tin plated for low contact resistance. For use with copper or aluminum conductors. 600V (2000V max, per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C. All hole spacing is NEMA standard of 1.75".
NSI Industries

4-600L4

UPC: 662381001627

Documents & Media
Technical Bulletin

Contact for Pricing

Overview

The NSI Industries 4-600L4 is a robust 4-port panelboard lug designed for reliable termination of large conductors in electrical distribution systems. Constructed from high-strength 6061-T6 aluminum alloy, this lug ensures durability and excellent conductivity. Its tin-plated finish minimizes contact resistance, promoting efficient power transfer and reducing heat buildup, crucial for maintaining system integrity. Engineered for versatility, the 4-600L4 accommodates conductor sizes ranging from 2 AWG to 600 MCM, making it suitable for a wide spectrum of applications. The set-screw connection type provides a secure and stable termination, while multiple mounting holes with NEMA standard 1.75" spacing facilitate easy and reliable installation onto panelboards, preventing rotation and ensuring a dependable connection. This panelboard lug is rated for 600V (with a maximum of 2000V per UL486B) and operates efficiently at a temperature rating of 90°C. It is UL 486A/B Listed, signifying its compliance with stringent safety and performance standards for use with both copper and aluminum conductors. The NSI 4-600L4 is an essential component for power distribution, switchgear, and other heavy-duty electrical installations requiring secure and high-capacity connections. Key Specifications: - SKU: 4-600L4 - Manufacturer: NSI Industries - Ports: 4 - Conductor Size Range: 600 MCM - 2 AWG - Material: 6061-T6 Aluminum Alloy - Plating: Tin - Connection Type: Set Screw - Mounting Type: Panelboard Lug - Voltage Rating: 600V (2000V max per UL486B) - Temperature Rating: 90°C - Certifications: UL 486A/B Listed - NEMA Hole Spacing: 1.75"
  • 4-port panelboard lug for 600 MCM - 2 AWG conductors
  • Constructed from durable 6061-T6 aluminum alloy
  • Tin-plated for low contact resistance and corrosion inhibition
  • Secure set-screw connection with turn-prevent mounting
  • UL 486A/B Listed for copper or aluminum conductors, 600V rated

Specifications

Application
Wire Termination
Special Features
(4) 600 MCM-2 AWG - Dual Rated - 2 Pack
Standard
cULus
Type
Panelboard Lug
Voltage Rating
600 V
Warranty
1 Year
Package Dimensions (L x W x H)
4.65 IN x 5 IN x 1.51 IN
Package Dimensions (L x W x H)
11.811 cm x 12.7 cm x 3.8354 cm
Package Weight (Imperial)
2.800 L
Package Weight (Metric)
1.270 kg

Similar Products

4-600L4-BULK

4-600L6

Special Features: (4) 600 MCM-2 AWG

Type: Transformer Lug

4-600LL4

Material: 6061T-6 Aluminum Alloy

Size: 600 MCM - 2 AWG

Nema Rating: NEMA standard 1.75" hole spacing

4-600LL6

Special Features: (4) 600 MCM-2 AWG

Type: Transformer Lug-Heavy Duty

4-800L4

Special Features: (4) 800-300 MCM - Dual Rated - 2 Pack

Standard: UL486A/B

Voltage Rating: 600 V

4-800LL4

Special Features: (4) 800-300 MCM - Dual Rated - 2 Pack

You May Also Be Interested In

4 Port Aluminum Dual Rated Transformer Lug 600 MCM - 2 AWG Aluminum Dual Rated Transformer Lugs are versatile and reuseable set screw connectors made of 6061T-6 aluminum alloy for superior electrical and mechanical performance. Two set screws per wire hole ensure an exceptional connection. Electro-tin plated for low resistance. For use with copper or aluminum conductors. Mounting hole spacing is NEMA 1-3/4". Meets or exceeds ANSI C119.4 Class A. Rated 600 Volts. Temperature Rating 90 degrees C.

4-600L6

4 Port Heavy Duty Dual Rated Transformer Lug 600 MCM - 2 AWG Heavy Duty Dual Rated Transformer Lugs are versatile and reusable set screw connectors made from high strength 6061-T6 aluminum alloy for superior electrical and mechanical performance. Two set screws per wire hole ensure an exceptional connection. Electro-tin plated for low contact resistance. For use with copper or aluminum conductors. Mounting hole spacing is NEMA 1-3/4". Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.

4-600LL6

1 Port Aluminum Lug 600 MCM - 2 AWG Aluminum Single Lugs are versatile and feature reuseable set screw connectors made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Temperature Rating 90 degrees C. Rated 600 volts (2000V max. per UL486B). UL 486A/B Listed. .

600T

1 Port Aluminum Lug 500 MCM - 4 AWG Aluminum Single Lugs are versatile and reuseable set screw connectors made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Temperature Rating 90 degrees C. Rated 600 volts (2000V max. per UL486B). UL 486A/B Listed. .

500T

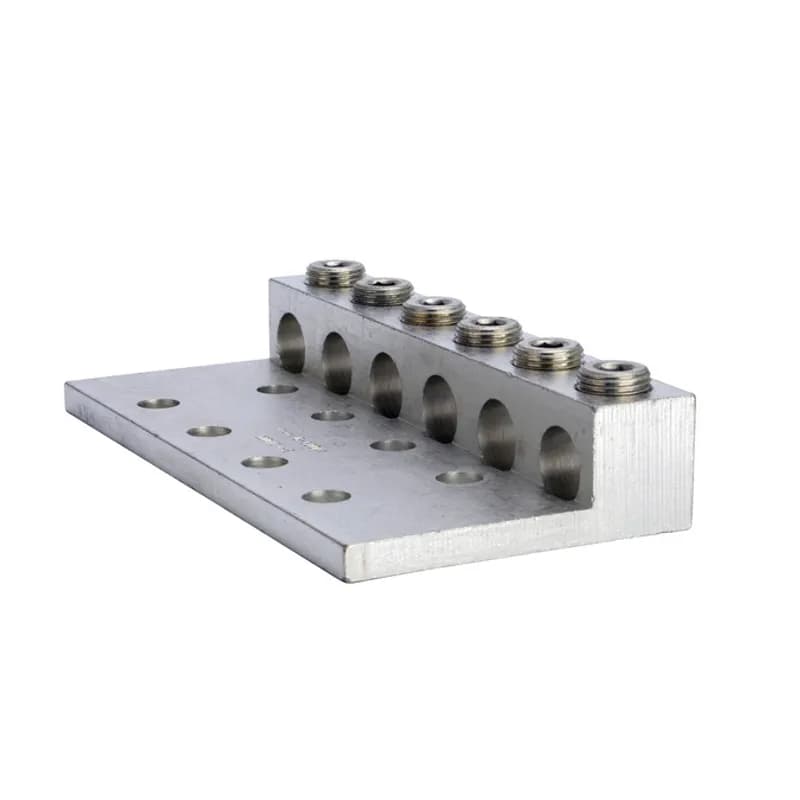

6 Port Aluminum Dual Rated Transformer Lug 600 MCM - 2 AWG Aluminum Dual Rated Transformer Lugs are versatile and reuseable set screw connectors made of 6061T-6 aluminum alloy for superior electrical and mechanical performance. Two set screws per wire hole ensure an exceptional connection. Electro-tin plated for low resistance. For use with copper or aluminum conductors. Mounting hole spacing is NEMA 1-3/4". Meets or exceeds ANSI C119.4 Class A. Rated 600 Volts. Temperature Rating 90 degrees C.
