Authorized NSI Industries Distributor

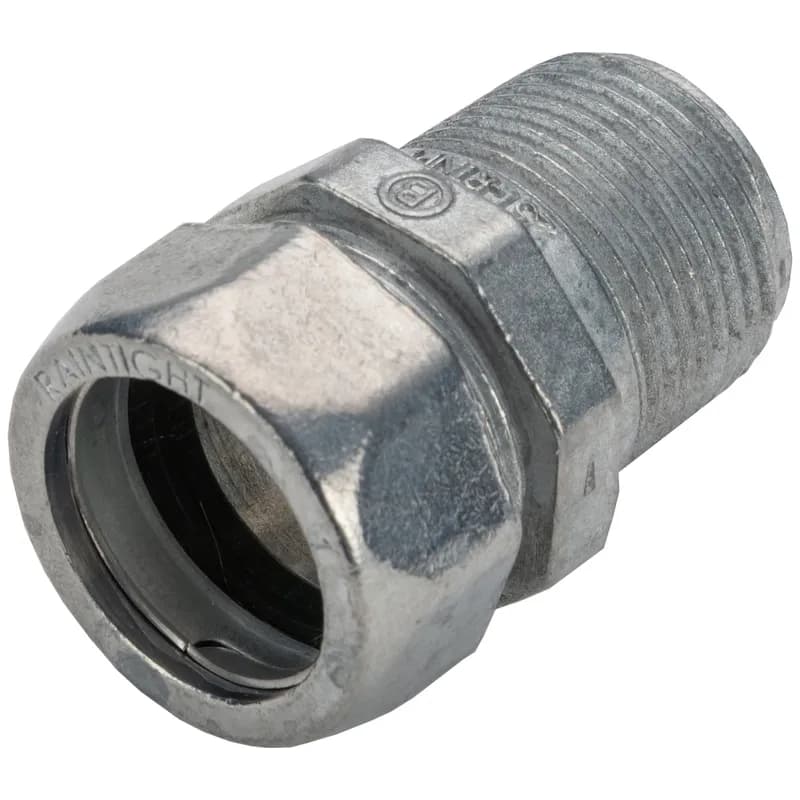

NSI Industries 252-RTNPT - Mighty-Seal Raintight NPT 1" EMT to Threaded Entry Connector

NSI Industries 252-RTNPT Mighty-Seal Raintight NPT 1" EMT to Threaded Entry Connector

UPC: 781747972521


Documents & Media
Specification SheetWarrantyConflict Minerals Report

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The NSi Industries Mighty-Seal Raintight NPT 1" EMT to Threaded Entry Connector (252-RTNPT) provides a robust, leak-proof seal between 1" EMT conduit and threaded entries in industrial and commercial electrical systems. Constructed from zinc die-cast material, this connector features NPT threading for a secure, raintight connection that effectively blocks moisture, dust, and environmental contaminants. Certified to UL STD 514B and CAN/CSA STD C22.2 No. 18.3, it meets rigorous performance standards for outdoor installations and harsh environments, ensuring reliable operation in demanding conditions. The connector’s design simplifies installation with a straightforward, user-friendly interface, reducing labor time while maintaining long-term reliability. Compatible with standard 1" EMT and threaded entries, it delivers consistent performance in electrical systems where superior protection and durability are essential. Ideal for outdoor enclosures, industrial facilities, and commercial buildings, this connector is engineered to provide critical environmental sealing in applications such as power distribution, control panels, and junction boxes. Dimensions are as follows: A=2.025", B=1.500", C=1.125". The Mighty-Seal 252-RTNPT is designed to meet the needs of electrical professionals seeking a dependable, high-performance solution for raintight conduit connections.
  • Zinc die-cast construction for durability in wet and harsh environments
  • NPT threading ensures a secure, leak-proof seal between EMT and threaded entries
  • Raintight design resists moisture, dust, and environmental contaminants
  • Simplifies installation with a straightforward, time-saving design
  • Simplifies installation with easy-to-use design

Specifications

Application
Zinc Die Cast Connectors with NPT threads, used to secure EMT conduit to a threaded NPT hub. Provides a raintight /wet location seal when threaded into suitable NPT conduit bodies and hubs. Nema 4. US Patent 7,390,027.
Connection Type
NPT Threaded
Connection Type
Threaded Entry
Length
2.025000000000000;51.4350 in;in
Length
2.025 in
Length
51.435 mm
Material
Poly
Material Quality
Zinc Die Cast
Nema Rating
NEMA 4X
Outside Diameter
1.5 in
Outside Diameter
38.1 mm
Series
Mighty-Seal Raintight NPT
Series
Mighty-Seal Raintight
Size
1" EMT to Threaded Entry
Size
1 Inch
Special Features
Our -RTNPT assemblies have been specifically Listed to be installed into threaded hubs, conduit bodies, and bosses.
Standard
cETLus
Trade Size
1 in.
Trade Size
1
Type
RTNPT
Package Weight (Imperial)
0.240 L
Package Weight (Metric)
0.109 kg
Swivel Adapter with Special Sealing, PG Metal Thread - Thread 29, Thread Length 15

SWA-P29

Swivel Adapter with Special Sealing, PG Metal Thread - Thread 29, Thread Length 15
MAX-LOC® Strain Relief Cord-Sealing Grip, 3/4" NPT, 90° Angle Male with O-Ring, Cable Diameter 15.88-19.05mm (.625-.750")

5543W

MAX-LOC® Strain Relief Cord-Sealing Grip, 3/4" NPT, 90° Angle Male with O-Ring, Cable Diameter 15.88-19.05mm (.625-.750")
Mighty-Seal Raintight NPT 3/4" EMT to Threaded Entry Connector

251-RTNPT

Mighty-Seal Raintight NPT 3/4" EMT to Threaded Entry Connector
EMT Couplings, Color-Coded, Steel, Black, Size 2"

245-SBLK

EMT Couplings, Color-Coded, Steel, Black, Size 2"
EMT Couplings, Color-Coded, Steel, Black, Size 1-1/4"

243-SBLK

EMT Couplings, Color-Coded, Steel, Black, Size 1-1/4"

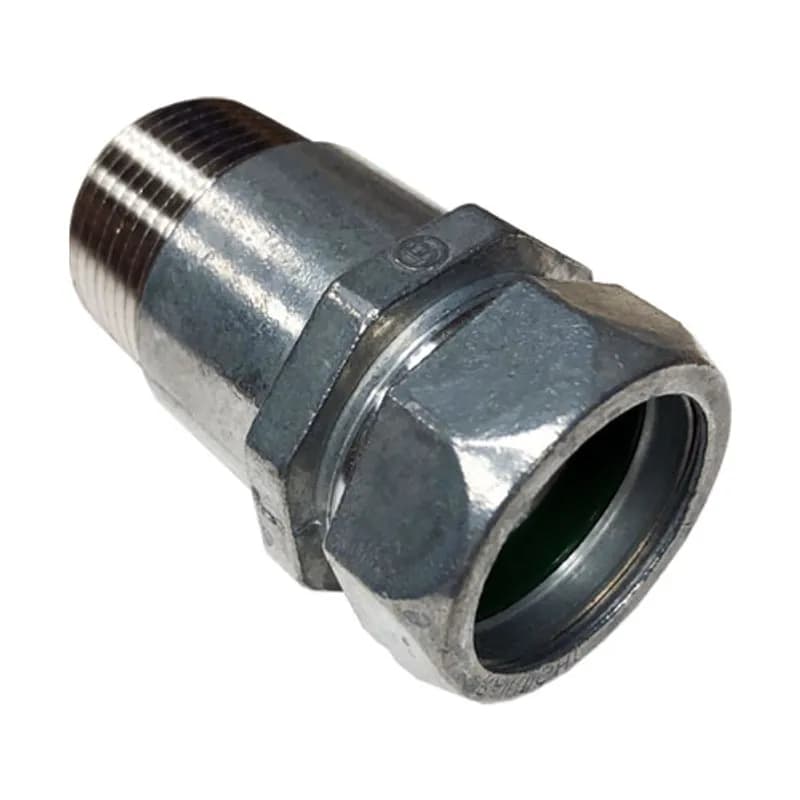

Mighty-Merge 3/4" Raintight NPT EMT to HUB Connector

291-RTNPT

Mighty-Merge 3/4" Raintight NPT EMT to HUB Connector
Mighty-Merge Threadless Rigid to FMC Transition Fitting, 3/4"

282-DCR

Mighty-Merge Threadless Rigid to FMC Transition Fitting, 3/4"
Mighty-Merge Threadless Rigid to FMC Transition Fitting, 2"

286-DCR

Mighty-Merge Threadless Rigid to FMC Transition Fitting, 2"

Frequently Asked Questions

What is the trade size of the 252-RTNPT connector?

The trade size of the 252-RTNPT connector is 1 inch.

Is the 252-RTNPT connector suitable for wet locations?

Yes, the 252-RTNPT connector is specifically listed for installation in wet locations.

What materials are used in the 252-RTNPT connector?

The 252-RTNPT connector is made from zinc die cast materials.

What certifications does the 252-RTNPT connector have?

The connector is UL listed and conforms to UL STD 514B and CAN/CSA STD. C22.2 No. 18.3.

What is the purpose of the 252-RTNPT connector?

The 252-RTNPT connector is used to secure EMT conduit to a threaded NPT hub, providing a raintight seal.

How many units are in a standard package?

A standard package contains 50 units of the 252-RTNPT connector.

What is the dimension A of the 252-RTNPT connector?

Dimension A of the 252-RTNPT connector is 2.025 inches.

What is the dimension B of the 252-RTNPT connector?

Dimension B of the 252-RTNPT connector is 1.500 inches.

What is the dimension C of the 252-RTNPT connector?

Dimension C of the 252-RTNPT connector is 1.125 inches.

What is the patent number for the 252-RTNPT connector?

The patent number for the 252-RTNPT connector is US Patent 7,390,027.
