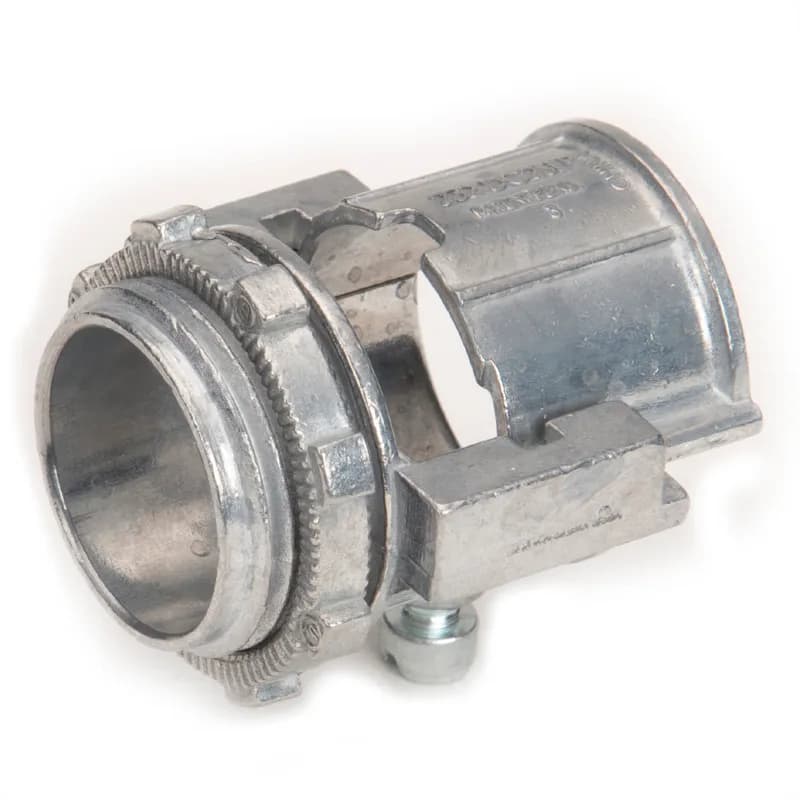

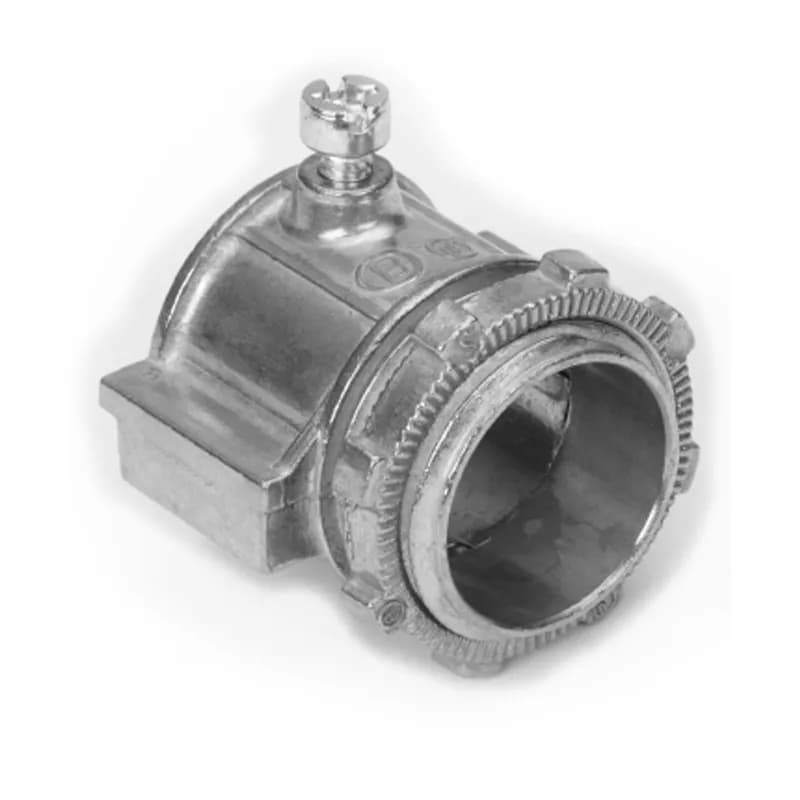

NSI Industries 237-DC2SLP Mighty-Align DC2SLP Slip Connector, Set Screw, Zinc Die Cast, Size 3 Inch
UPC: 781747072375
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 3-inch zinc die-cast slip connector for EMT conduit
- Set screw design for easy installation and adjustment
- Ball-burnished, mirror-smooth finish for durability
- Meets Federal Specification A-A-50553 and NEMA FB-1 standards
- NSi Industries Mighty-Align series for reliable performance
Specifications
Application | Simply measure between the two fittings' end stops or proper 3" EMT conduit installations, between two enclosures. |
Color | Gray |
Color | Gray;Grey |
Connection Type | Set Screw |
Finish | Ball burnish |
Material | Zinc Die Cast |
Material Quality | Zinc Die Cast |
Series | Mighty-Align DC2SLP |
Size | 3 IN |
Special Features | No more wasting time with short EMT conduit cuts. Perfect for tight conduit installations. |
Standard | cULus Listed |
Type | Slip Connector |
Package Dimensions (L x W x H) | 5.5 IN x 4.875 IN x 4.5 IN |
Package Dimensions (L x W x H) | 13.97 cm x 12.3825 cm x 11.43 cm |
Package Weight (Imperial) | 1.050 L |
Package Weight (Metric) | 0.476 kg |
TC 227 SC
Connector, Non-Insulated Set Screw, Conduit Size 2-1/2 Inches, Length TC221 Series 3-3/16 Inches TC821 Series 3-9/32 Inch, Width 3-19/64 Inch, Die Cast Zinc
CPC75EG
Conduit connection plate with hardware for 3/4 in. electrical metallic tubing (EMT) connectors. The sheet identifies the product as CPC75EG. No material, finish, or dimensional attributes are printed on the sheet beyond the 3/4 size reference in the title.
Frequently Asked Questions
What is the trade size of the connector?
The trade size of the connector is 3 inches.
What is the material of the product?
The product is made of zinc die cast material.
What are the dimensions of the product?
The dimensions are A: 2.36 in, B: 1.07 in, C: 4.02 in, D: 4.37 in.
What is the application of the Mighty-Align DC2SLP?
It is used for proper 3" EMT conduit installations between two enclosures.
What is the purpose of the Mighty-Align DC2SLP?
It eliminates the need for short EMT conduit cuts in tight installations.
What is the finish of the Mighty-Align DC2SLP?
The finish is ball burnished and mirror smooth.
How many units are in a standard package?
There are 6 units in a standard package.
What certifications does the product have?
The product meets Federal Specification A-A-50553 and NEMA Standard FB-1.
Where is the product manufactured?
The product is manufactured in China.
What is the UL File Number for this product?
The UL File Number is E24001.
