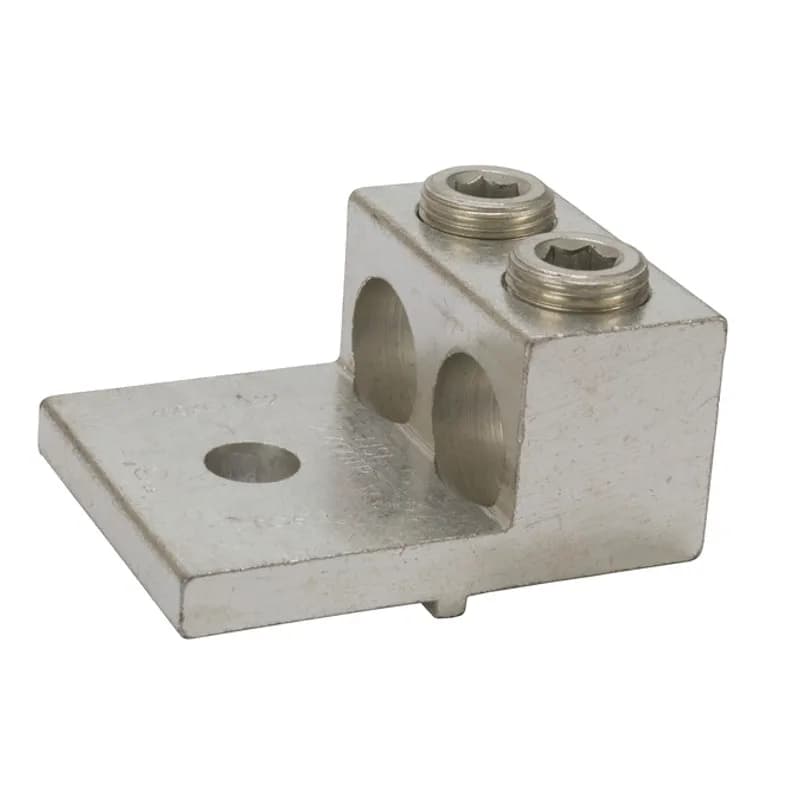

NSI Industries 2-600T - 2 Port Aluminum Lug 600 MCM - 2 AWG Aluminum Double Lugs are versatile and reuseable set screw connectors made of 6061T-6 aluminum alloy. Electro tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600 volts, 90 degrees C. UL 486A/B Listed.
NSI Industries

2-600T

UPC: 662381001245

Documents & Media
Technical Bulletin

Contact for Pricing

Overview

NSI Industries 2-600T 2 Port Aluminum Lug is a reusable set screw connector engineered for high-current applications requiring reliable, low-resistance connections. Constructed from 6061T-6 aluminum alloy, these double lugs are electro tin-plated to minimize contact resistance and ensure long-term performance with both copper and aluminum conductors. Rated for 600 volts and 90 degrees Celsius, the 2-600T meets UL 486A/B standards, making it suitable for industrial, commercial, and utility installations where safety and durability are critical. Designed for versatility, the 2-600T accommodates 600 MCM to 2 AWG conductors, providing a secure connection via set screw terminals. The aluminum alloy construction offers a lightweight yet robust solution, ideal for applications where weight savings and corrosion resistance are priorities. These lugs are reusable, allowing for adjustments or reconfigurations without replacing the connector, reducing downtime and maintenance costs. Common applications include power distribution panels, motor control centers, renewable energy systems, and industrial machinery where high-current conductors require stable, low-resistance terminations. The 2-600T’s compatibility with both copper and aluminum conductors eliminates the need for additional adapters or transition fittings, streamlining installation and reducing material costs. With a UL 486A/B listing, these lugs comply with stringent safety and performance standards, ensuring reliable operation in demanding environments.
  • 6061T-6 aluminum alloy construction for durability and corrosion resistance
  • Electro tin-plated for low contact resistance with copper and aluminum conductors
  • Rated 600 volts, 90°C, UL 486A/B listed for safety and compliance
  • Accommodates 600 MCM to 2 AWG conductors with set screw terminals
  • Reusable design reduces maintenance costs and downtime

Specifications

Application
Wire Termination
Color
Aluminum
Environmental Conditions
90 C
Finish
Aluminum
Special Features
(2) 600 MCM-2 AWG - Dual Rated - 4 Pack
Standard
cULus
Temperature Rating, Maximum
194.00000 F
Temperature Rating, Maximum
90 °C
Temperature Rating, Minimum
194.00000 F
Temperature Rating, Minimum
90 °C
Type
Aluminum Double Lug
Warranty
1 Year
Package Dimensions (L x W x H)
3.18 IN x 2.41 IN x 1.51 IN
Package Dimensions (L x W x H)
8.0772 cm x 6.1214 cm x 3.8354 cm
Package Weight (Imperial)
4.400 L
Package Weight (Metric)
1.996 kg
