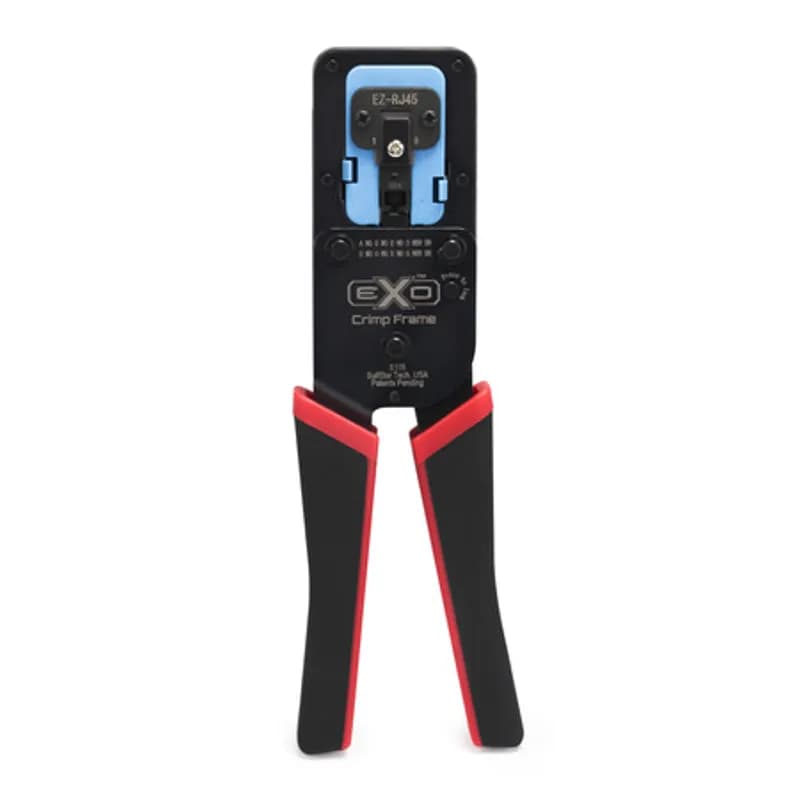

NSI Industries 100062C - The patented EXO Crimp Frame with EZ-RJ45 Die is our new EZ-RJ45 Crimp Tool. The included EZ-RJ45 Die is interchangeable and reversible when used with EXO Crimp Frame. Designed for the original pass through EZ-RJ45 connectors which are a standard in the industry. The EXO Crimp Frame highlights a push button lock, ergonomic TPR handles, and works with the EXO-EX Dieâ„¢ (P/N 100071C) for terminating ezEX-RJ45â„¢ connectors. Compatible with EZ-RJ45 connectors: EZ-RJ45 Cat5e and Cat6, Shielded Cat5e and Cat6 connectors (internal and external ground)
NSI Industries

100062C

UPC: 849160008668

Contact for Pricing

Overview

The NSi Industries EXO Crimp Frame (SKU: 100062C) is a professional-grade tool engineered for precise and reliable termination of EZ-RJ45 connectors. This innovative crimping tool features a patented EXO Crimp Frame with an interchangeable and reversible EZ-RJ45 Die, designed specifically for the original pass-through EZ-RJ45 connectors, a standard in the industry. The ergonomic TPR handles ensure comfortable use during extended operations, while the push-button lock mechanism provides secure handling and storage. The EXO Crimp Frame is compatible with a range of EZ-RJ45 connectors, including Cat5e and Cat6, as well as shielded Cat5e and Cat6 connectors with both internal and external ground options. Furthermore, this versatile frame is designed to work with the EXO-EX Die™ (P/N 100071C) for terminating ezEX-RJ45™ connectors, offering expanded compatibility for various network cabling needs. This tool is essential for structured cabling installations and network infrastructure projects requiring consistent and accurate connector termination.
  • Patented EXO Crimp Frame with interchangeable EZ-RJ45 Die
  • Designed for original pass-through EZ-RJ45 connectors
  • Ergonomic TPR handles for comfortable operation
  • Push-button lock for secure handling and storage
  • Compatible with Cat5e, Cat6, and shielded connectors (internal/external ground)

Specifications

Material
Steel, TPR
Special Features
Platinum Tools
Type
Crimp Tools
Warranty
1 Year
Package Dimensions (L x W x H)
12 IN x 4.5 IN x 1 IN
Package Dimensions (L x W x H)
30.48 cm x 11.43 cm x 25.4 mm
Package Weight (Imperial)
1.040 L
Package Weight (Metric)
0.472 kg

Similar Products

100060C

100061C

Material: Iron, TPR

100022C

Application: Cable Installation

Type: Connectors

Material: Polycarbonate

100061

10006C

Application: Cable Installation

Special Features: Replacement Blade Set for PN 10005 & 10007.

Type: Replacement Blades

100072C

Type: Die Set

You May Also Be Interested In

The patented EXO Crimp Frame with EXO-EX Die was developed to terminate larger cables and conductors (typically Cat6/6A). EXO Crimp Frame with EXO-EX Die is designed for the ezEX-RJ45 connectors. The ezEX-RJ45 connectors are an RJ45 pass through connector, developed for larger cables and conductors. Integrated Hi-Lo stagger for improved performance, one piece design pass through system. The EXO Crimp Frame has a patented push button lock, ergonomic TPR handles and works with the EZ-RJ45® Die for terminating EZ-RJ45 connectors.

100061C

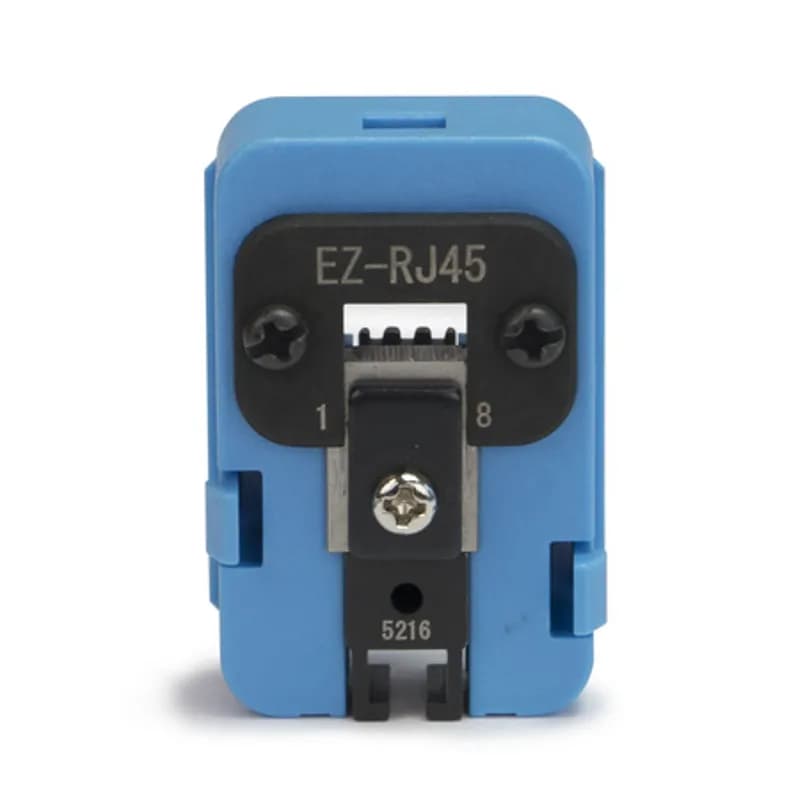

EZ-RJ45 Die EXO CrmpFrame Clamshell

100072C

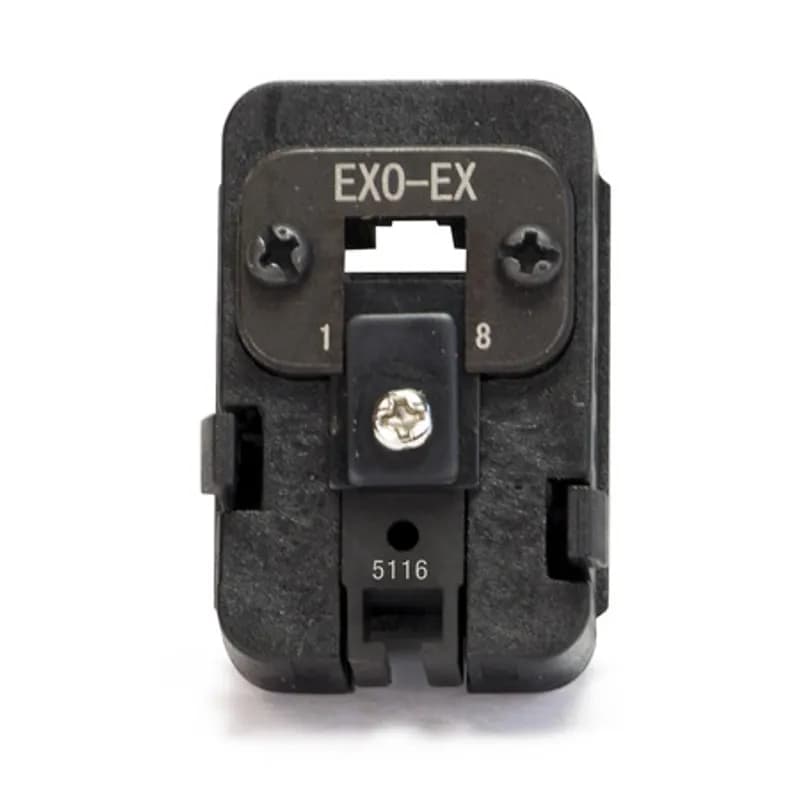

EXO-EX Die for EXO Crimp Frame.

100071C

EXO Crimp Frame w/ EXO-EX Die. Box.

100061

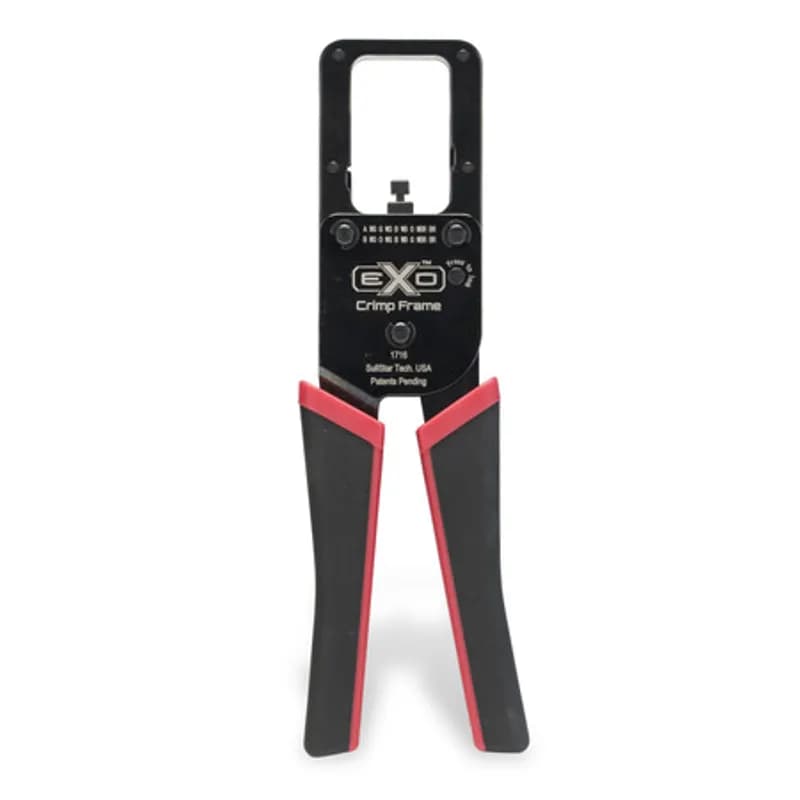

EXO Crimp Frame? (w/o crimp die). Clamshell.
