Contact for Pricing
Minimum Qty: 100
Multiplier: 100
*Contact for lower quantities*

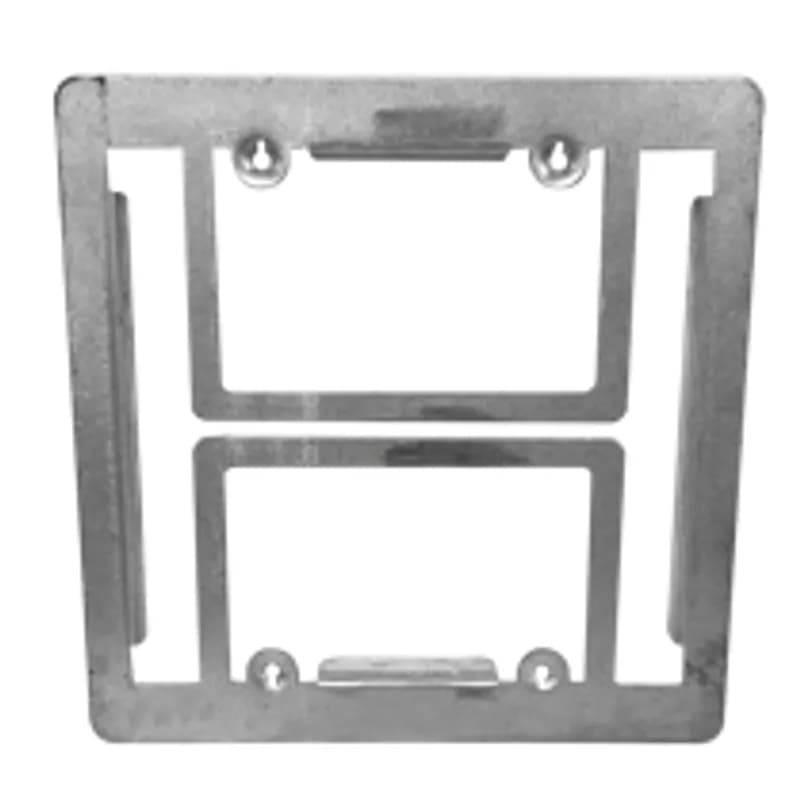

Overview
- Pre-galvanized steel construction for corrosion resistance
- Mounts standard double gang low voltage (Class 2) wall plates without electrical box
- Includes 1-5/8" drywall screws for direct mounting to drywall or studs
- Dimensions: 4.25" height x 4.25" width x 0.1875" depth
- UL/ULC not listed; suitable for Class 2 wiring applications
Specifications
Material | Pre-Galvanized Steel |
Mounting Type | Wall Mount |
Series | WB2 |
Package Dimensions (L x W x H) | 15 IN x 8.25 IN x 7.25 IN |
Package Dimensions (L x W x H) | 38.1 cm x 20.955 cm x 18.415 cm |
Package Weight (Imperial) | 8.3000 L |
Package Weight (Metric) | 3.7650 kg |
CP3HS4
A 3-hole corner plate flat plate fitting for mounting with nut and bolt. It is made of 304 stainless steel with a silver finish. The plate is L-shaped and has 3 mounting holes with 9/16 in. mounting holes on center and 1/4 in. thickness.
WB1
This is a mounting bracket for mounting standard low voltage plates. It is made of steel with a pre-galvanized finish and a silver color. The bracket is rectangular and stamped, with overall size H 4.25 x W 2.5 x D 0.375. It is intended for use with 1/2" - 1-1/4" thick wall and mounts on dry wall.
WB2S
A wall mount mounting plate for new construction. It is made of pre-galvanized steel. The sheet identifies it as series WB2S.
WB1S
A mounting plate for new construction and wall plate mounting applications. It is made of pre-galvanized steel. The plate is sized for a single gang installation.Frequently Asked Questions
Can the WB2 be used with single gang wall plates?
No, the WB2 is specifically designed for double gang wall plates. For single gang applications, Minerallac offers the WB1+ model.
Does the WB2 meet UL or CSA standards?
No, the WB2 is not UL listed or CSA certified. It is intended for Class 2 low voltage applications where such listings are not required.
What is the material thickness of the WB2?
The WB2 has a depth of 3/16" (0.1875"), which provides a low-profile mounting surface for wall plates.
What wall plate sizes does the WB2 accommodate?
The WB2 is designed for standard double gang low voltage wall plates used in Class 2 wiring applications. It measures 4.25" x 4.25" to match typical double gang plate dimensions.
What type of screws are included with the WB2?
The WB2 includes 1-5/8" drywall screws for mounting to drywall or studs. These screws are designed for secure attachment without requiring an electrical box.
Is the WB2 suitable for outdoor use?
The pre-galvanized steel construction provides corrosion resistance, making it suitable for damp or exposed indoor environments. It is not rated for direct outdoor exposure without additional protection.
What is the maximum wire size supported by the WB2?
The WB2 is designed for Class 2 low voltage wiring, which typically supports wire sizes up to 12 AWG. It does not include wire termination points.
How to Install the Minerallac WB2 Double Gang Low Voltage Mounting Bracket
Step-by-step guide to mounting the WB2 bracket for low voltage wall plates without an electrical box.
Estimated time: 15m
Tools needed:
Phillips screwdriver, Tape measure, Pencil
Supplies needed:
WB2 bracket, 1-5/8" drywall screws (included), Stud finder (optional)
- Locate mounting position
Determine the desired location for the wall plate on the wall. Use a stud finder to locate wall studs if mounting to studs is preferred over drywall.
- Mark screw holes
Position the WB2 bracket against the wall at the marked location. Use a pencil to mark the screw hole positions through the bracket's mounting holes.
- Drill pilot holes (if needed)
If mounting to drywall, drill 1/8" pilot holes at the marked positions. If mounting to studs, align the bracket with the stud and mark screw locations directly.
- Secure the bracket
Insert the included 1-5/8" drywall screws into the bracket's mounting holes and drive them into the wall until the bracket is flush and secure.
- Attach the wall plate
Snap the low voltage wall plate into place on the bracket, ensuring it is level and securely mounted.
