Minerallac Company 60612J - This is a lag screw shield for mortar joint applications. It is made of zinc with no additional finish. Key dimensions shown are 3/8 in. diameter, 2-1/2 in. length, 5/8 in. drill size, 3/8 in. screw size, and 3 in. minimum embedment depth.
Minerallac Company

60612J

Alternate Item Number: 12112175

UPC: 085937043320

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 50

Multiplier: 50

*Contact for lower quantities*

Overview

The Minerallac 60612J is a zinc alloy lag screw shield specifically designed for secure anchoring in mortar joint applications. This shield is part of the Minerallac LAG SCREW SHIELDS series, optimized for use in both solid and hollow base materials. Its zinc alloy construction, with no additional finish, provides increased resistance to temperature fluctuations and rust compared to lighter-duty anchors, ensuring long-term durability in demanding environments. The shield features a 3/8-inch diameter and a 2-1/2-inch length, making it suitable for medium-duty fastening tasks. Installation requires a 5/8-inch drill size, and it is designed to accept a 3/8-inch screw for a secure fit. A minimum embedment depth of 3 inches is recommended to achieve optimal holding power in masonry surfaces. This anchor is ideal for applications such as securing electrical conduit, mounting signage, fastening light framework, or other structural attachments to masonry. The Minerallac 60612J is compliant with the Buy American Act and RoHS standards, ensuring it meets regulatory requirements for quality and safety. Standard packaging includes 50 units per box and 300 units per master carton, providing convenient storage and distribution options. Key specifications include a 3/8-inch diameter, 2-1/2-inch length, 5/8-inch drill size, 3/8-inch screw size, and a 3-inch minimum embedment depth. The material is zinc with no additional finish, delivering consistent performance in mortar joint applications.
  • Zinc alloy construction for durability and corrosion resistance.
  • Designed for secure anchoring in mortar joint applications.
  • Accepts 3/8" screws with a 5/8" drill size requirement.
  • Provides a minimum embedment depth of 3 inches for strong holding power.
  • Suitable for solid or hollow base materials, offering resistance to temperature fluctuations and rust.
  • Manufactured in the USA

Specifications

Application
and is more resistant to temperature fluctuations and rust than other light-duty anchors.;Can be used in solid or hollow base materials
Diameter
3/8 in
Drill Size
5/8 IN
Embedment Depth, Minimum
3 in
Embedment Depth, Minimum
76.2 mm
Finish
Untreated
Finish
No additional finish.
Length
2-1/2 in
Material
Steel
Material
Zinc
Material
Metal
Minimum Embedment Depth
3"
Mounting Type
expanding in mortar joints
Mounting Type
Mortar Joint / Masonry Anchor
Mounting Type
Mortar joint applications in brick, block, and concrete
Mounting Type
Mortar joint expansion
Mounting Type
Masonry Anchor
Mounting Type
mortar joint
Screw Size
3/8" IN
Series
Cully
Size
3/8 inch diameter, 2-1/2 inch length
Size
3/8" diameter, 2-1/2" long
Size
3/8" diameter, 2-1/2" length
Size
3/8 Long
Size
3/8" x 2-1/2"
Size
3/8"
Size
3/8 in. diameter, 2-1/2 in. length
Type
Lag Screw Shield
Package Weight (Imperial)
4.75 lbs

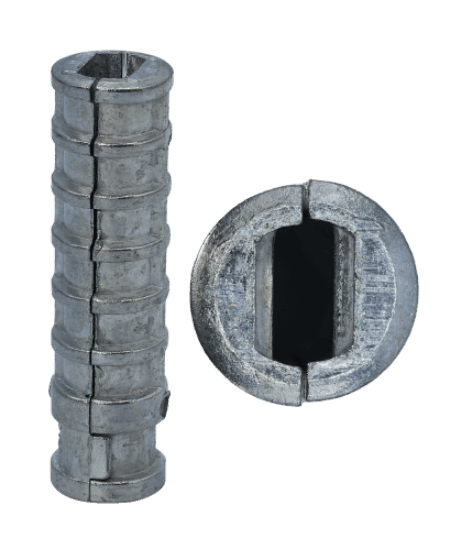

Lag screw shield for mortar joint applications. Made of zinc with no additional finish. It has a 1/4 in. diameter, 1-1/2 in. length, 1/2 in. drill size, 1/4 in. screw size, and 2 in. minimum embedment depth.

60604

Lag screw shield for mortar joint applications. Made of zinc with no additional finish. It has a 1/4 in. diameter, 1-1/2 in. length, 1/2 in. drill size, 1/4 in. screw size, and 2 in. minimum embedment depth.
Long Lag Screw Shield, 3/4 in. Size, 1/2 in. diameter, 3 in. length, Die Cast Alloy material, Zinc finish, 25 per pack

J1210

Long Lag Screw Shield, 3/4 in. Size, 1/2 in. diameter, 3 in. length, Die Cast Alloy material, Zinc finish, 25 per pack
This is a hollow wall anchor kit with a white nylon anchor and zinc-plated carbon steel screw. It is sized #8 x 1-5/8" overall, with a 1/2" diameter anchor and 1" screw length. The anchor is intended for drywall and horizontal applications and is removable. It is listed for 3/8", 1/2", or 5/8" wall board and has a holding weight of 50 lbs.

39921

This is a hollow wall anchor kit with a white nylon anchor and zinc-plated carbon steel screw. It is sized #8 x 1-5/8" overall, with a 1/2" diameter anchor and 1" screw length. The anchor is intended for drywall and horizontal applications and is removable. It is listed for 3/8", 1/2", or 5/8" wall board and has a holding weight of 50 lbs.
A lag screw shield for mortar joint applications. It is made of zinc with no additional finish. The shield is 1/4 in diameter, 1 in long, and uses a 1/2 in drill size with a 1/4 in screw size. Minimum embedment depth is 1-1/2 in.

60602

A lag screw shield for mortar joint applications. It is made of zinc with no additional finish. The shield is 1/4 in diameter, 1 in long, and uses a 1/2 in drill size with a 1/4 in screw size. Minimum embedment depth is 1-1/2 in.
A two-piece lag screw shield made of two semi-cylindrical hollow sections that interlock at the top and expand when installed. It is made of zinc with no additional finish. The shield measures 5/16 in diameter, 1-1/4 in length, and requires a 1/2 in drill size with a 5/16 in screw size.

60606

A two-piece lag screw shield made of two semi-cylindrical hollow sections that interlock at the top and expand when installed. It is made of zinc with no additional finish. The shield measures 5/16 in diameter, 1-1/4 in length, and requires a 1/2 in drill size with a 5/16 in screw size.
Lag screw shield for mortar joint applications. It is made of zinc with no additional finish. The shield is 5/16 in. diameter and 1-3/4 in. long, with a 1/2 in. drill size and 2-1/4 in. minimum embedment depth.

60608

Lag screw shield for mortar joint applications. It is made of zinc with no additional finish. The shield is 5/16 in. diameter and 1-3/4 in. long, with a 1/2 in. drill size and 2-1/4 in. minimum embedment depth.
Self drilling drywall anchor for drywall and horizontal applications. The anchor is nylon with a steel screw and has a white anchor with zinc screw finish. It is sized #8 x 1-5/8 in, with a 1/2 in diameter, 1 in screw length, and a maximum fixture thickness of 3/4 in.

39920-6

Self drilling drywall anchor for drywall and horizontal applications. The anchor is nylon with a steel screw and has a white anchor with zinc screw finish. It is sized #8 x 1-5/8 in, with a 1/2 in diameter, 1 in screw length, and a maximum fixture thickness of 3/4 in.
This is a hollow wall anchor kit with a white nylon anchor and zinc-plated steel screw. The anchor size is 1/2" x 1-5/8", and the screw size is #8 x 1". It is intended for drywall and horizontal applications, with a maximum fixture thickness of 3/4" and a holding weight of 50 lbs.

39921-6

This is a hollow wall anchor kit with a white nylon anchor and zinc-plated steel screw. The anchor size is 1/2" x 1-5/8", and the screw size is #8 x 1". It is intended for drywall and horizontal applications, with a maximum fixture thickness of 3/4" and a holding weight of 50 lbs.

Frequently Asked Questions

What size lag screw is compatible with the Minerallac 60612J?

The Minerallac 60612J lag shield is designed for 3/8" lag screws.

What drill bit size is needed for the 60612J lag shield?

A 5/8" drill diameter is required for the Minerallac 60612J lag shield.

What materials can the Minerallac 60612J be used in?

This lag shield is suitable for mortar joint applications in brick, block, and concrete.

What is the length of the Minerallac 60612J lag shield?

The Minerallac 60612J lag shield has a length of 2-1/2 inches.

Where is the Minerallac 60612J lag shield manufactured?

The Minerallac 60612J lag shield is manufactured in the USA.
