Overview
- IP20 Finger-Safe protection for safe fuse changes
- Rated for 800VAC and 1000VDC, 30A maximum current
- Pressure plate terminal for secure wire connections
- Compact, modular design for 35mm DIN-rail mounting
- UL Recognized, CSA Certified, and IEC 60269-2-1 compliant
Specifications
AC Voltage Rating | 800 V |
Amperage Rating | 30 A |
Application | All circuits up to 600 volts for motors, control circuits, transformers, etc… DC circuits up to 1000VDC including photovoltaic applications Non-load disconnect |
Brand Name | Mersen |
Class | Midget |
Connection | Pressure Plate |
DC Voltage Rating | 1000 V |
Material | Polyamide |
Maximum Operating Temperature | 80 C |
Mounting | DIN Rail |
Number Of Poles | 1 |
Operating Temperature, Maximum | 176 F |
Phase | 1 |
Size | 3.07 x 0.69 x 2.32;77.978 x 17.526 x 58.928 in;mm |
Special Features | IP20 Finger-Safe (touch safe) Optional visual blown fuse Indicator lights DIN-rail mounting Compact footprint Quick, tool-free, easy fuse change outs USM use with: ATQ, ATM, A6Y-2B, A25Z-2, TRM, OTM, A13X-2, A60Q-2, DCT, HP6M, HP10M USCC use with: ATDR, ATMR, ATQR ATM, DCT, ATMR recommended for DC applications |
Standard | UL Listed to Standard 4248- 4 (class CC) and UL Recognized to Standard 4248-1 (midget), File E52283 UL Listed to standard 4248-18 (photovoltaic), File E347822 CSA Certified C22.2 IEC 60269-2-1 and 60947-3 Compliant (USM only) |
Sub Brand | UltraSafe™ |
Type | UL/CSA Fuse Holders |
Voltage Rating | 600 VAC |
Package Dimensions (L x W x H) | 3.07 in x 0.69 in x 2.32 in |
Package Dimensions (L x W x H) | 77.978 mm x 17.526 mm x 58.928 mm |
Package Weight (Imperial) | 0.140 lb |
Package Weight (Metric) | 0.064 kg |
C331156
Fuse Holder UltraSafe™ 800VAC 1000VDC UL Fuse size 14x51 1-Pole Visual Indicator Microswitch Pressure Plate IP20
USM1I-DC1000

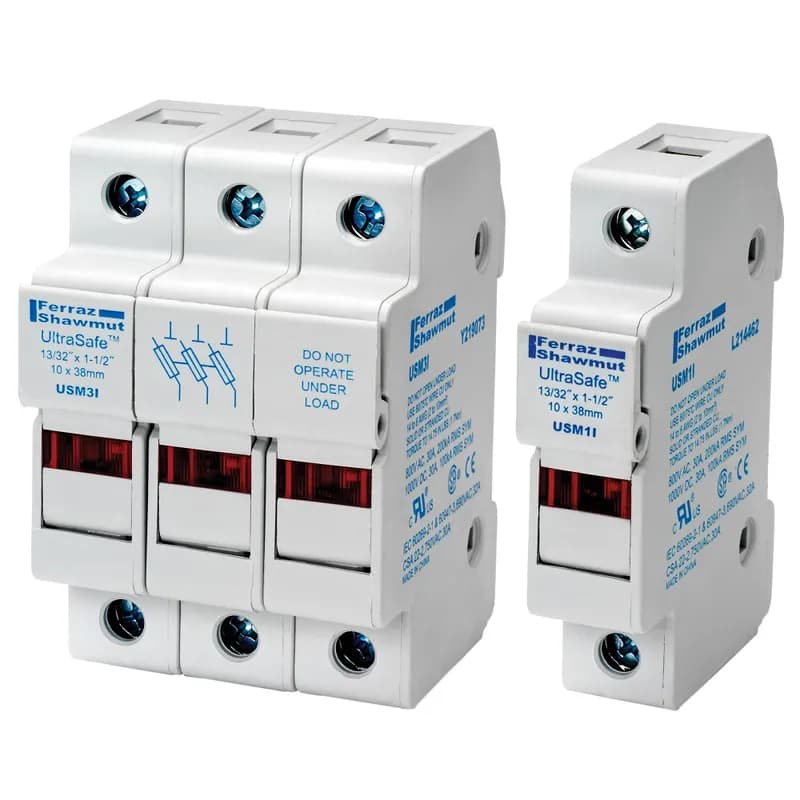

Mersen UltraSafe modular fuseholders introduce a new level of safety for class CC and midget fuses up to 30 amperes. UltraSafe fuseholders qualify as "finger safe" under IEC and DIN standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). UltraSafe fuseholders are available in 1, 2, 3 or 4 poles, with or without visual blown-fuse indicators in each pole. Multiple poles can be assembled in the field by ordering and installing pin-tie handles. UltraSafe fuseholders save up to 15 percent mounting space and any combination can be snapped onto 35mm DIN rail for extra savings in panel building time. Choose class CC fuses for Type "2" no-damage protection, one of the safest protection packages in the industry. The UltraSafe body material is tough and durable polyamide, with exceptional insulating properties. 600 Volts 30 amps 1 poles 1000V DC voltage indicator .Frequently Asked Questions about Mersen
