Contact for Pricing
Minimum Qty: 50
Multiplier: 50
*Contact for lower quantities*
Overview
- 8-pole, 2-phase configuration
- 600V voltage rating
- 25mm width
- Mole to Offset Bus termination
- Designed for Mersen USCC/USM fuse holders
Specifications
Amperage Rating | 200 A |
Application | Applications where Mersen USM/USCC fuseholders are in use UL 508 panels Solar string combiner boxes Control panels Power distribution panels |
Brand Name | Ferraz Shawmut |
Class | Accessory |
Connection | Comb Bus Bar |
Current Rating | 25A |
Phase | 2 |
Poles | 2P |
Poles | 8P 2PH |
Series | USBB |
Size | 25 mm |
Special Features | • Decrease installation time compared to wire solutions • Save panel space with compact design and footprint • Reduce shock hazards with touchsafe cover (included) • Environmentally conscious, RoHS compliant and lead free • Cuttable design offers flexibility |
Standard | UL Listed to standard UL508, File E348854 IEC Compliant to standard 60947-2 |
Type | UltraSafe Accessories |
Voltage Rating | 600 VAC |
Package Dimensions (L x W x H) | 5.57 in x 0.85 in x 1.44 in |
Package Dimensions (L x W x H) | 141.478 mm x 21.59 mm x 36.576 mm |
Package Weight (Imperial) | 0.168 lb |
Package Weight (Metric) | 0.076 kg |

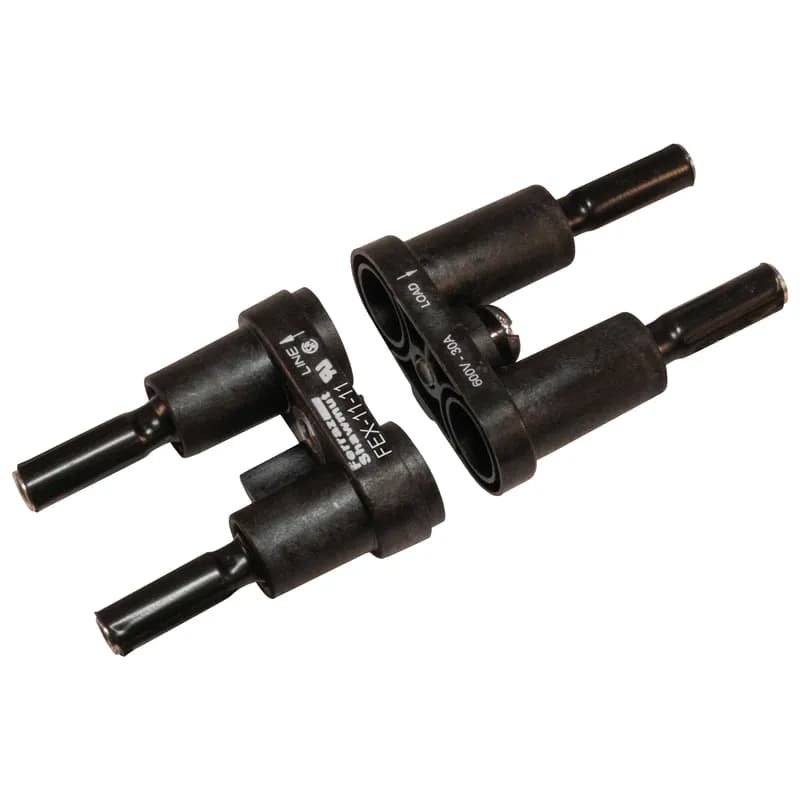

FEXN-81-81-B1

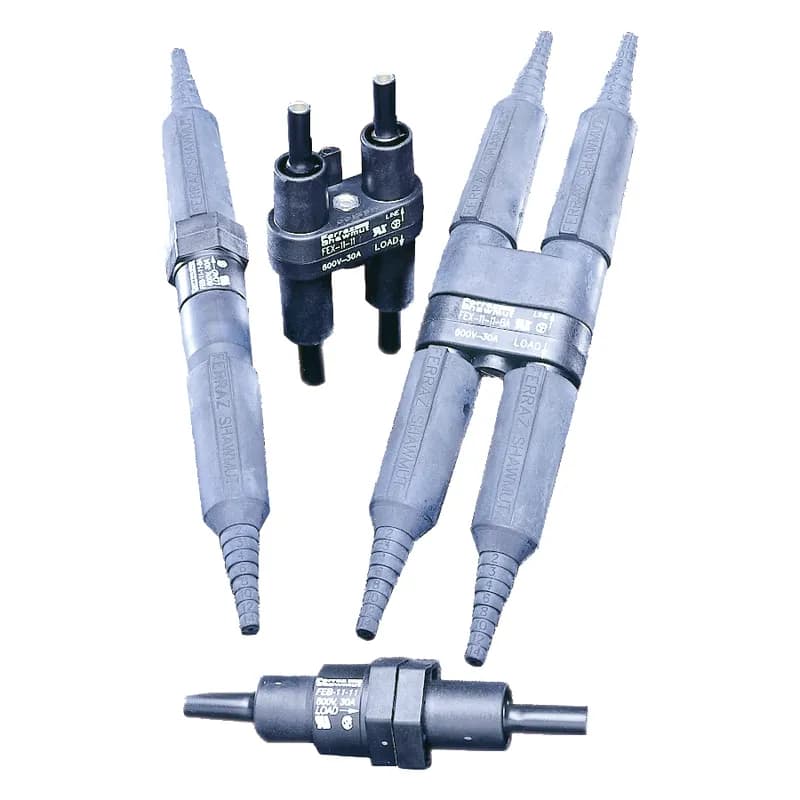

Mersen's complete line of single and dual pole in-line fuseholders with integral neutral link. The fuseholders are designed for quick installation. Securing nuts or screws are captive thus speeding installation by reducing the need to locate and assemble loose components in the field. Three internal O-rings per pole seal the fuseholder providing a water-resistant compartment for the fuse. The captive O-rings are colored (blue for single pole and red for dual pole) for quick detection. Optional cone shaped insulator boots can be slipped on to provide a watertight seal (breakaway versions come with boots standard). Both single and dual pole versions have an optional breakaway feature which safely disconnects the load in case of a pole knockdown. Fuses remain safely encapsulated within the watertight fuse holder on the load side. Once the pole has been reinstalled the fuseholder can be easily reconnected. 600 Volts 30 Amps 2 pole 81-81 B1 series.
Frequently Asked Questions
What is the voltage rating for the Mersen USBB2PH25K8 busbar?
The Mersen USBB2PH25K8 busbar system is rated for 600V.
How many poles does the USBB2PH25K8 busbar system have?
The Mersen USBB2PH25K8 busbar system features an 8-pole configuration.
What type of fuse holders is the USBB2PH25K8 compatible with?
The USBB2PH25K8 busbar system is designed for use with Mersen UltraSafe Class CC (USCC) and Midget (USM) fuse holders.
What phase configuration does the USBB2PH25K8 busbar system support?
The Mersen USBB2PH25K8 busbar system is a 2-phase configuration.
Where is the Mersen USBB2PH25K8 busbar system manufactured?
The Mersen USBB2PH25K8 busbar system is manufactured in the US.
