Mersen US3JPAK - Mersen UltraSafe modular class J fuseholders introduce a new level of safety and ease for installing or replacing class J fuses. UltraSafe fuseholders qualify as finger-safe to an IP20 grade of protection under IEC standards. The US3J accommodates 30A class J or IEC cylindrical 22x58mm fuses. The US6J accommodates 60A class J. UltraSafe fuseholders are available in compact 1, 2, or 3-pole units, with or without visual blown fuse indication. Multiple poles can be assembled in the field by ordering and installing pin-tie handles. US3J and US6J fuseholders can be mounted on 35mm DIN-rail. Body material is a tough and durable polyamide. 30A size pin tie kit series.

Mersen US3JPAK Mersen UltraSafe modular class J fuseholders introduce a new level of safety and ease…

Alternate Item Number: 782001423506

UPC: 782001423506


Documents & Media
Specification Sheet

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The Mersen US3JPAK UltraSafe 30A Class J fuseholder (SKU: US3JPAK) delivers finger-safe IP20 protection for industrial electrical systems. Engineered for 600VAC/DC applications, this modular fuseholder accommodates 30A Class J or 22x58mm IEC cylindrical fuses, providing reliable overcurrent protection in motor control centers, transformers, lighting systems, heating circuits, and general industrial loads. The polyamide body ensures durability in harsh environments while maintaining dimensional stability for long-term reliability. Key features include snap-mount compatibility for 35mm DIN-rails and a unique latch mechanism that stays open for easy fuse replacement and holder repositioning. The compact footprint (32.5mm W x 65mm D x 97.5mm H) maximizes panel space efficiency. Available in 1, 2, or 3-pole configurations with optional visual blown-fuse indicators for each pole, the US3JPAK enables proactive maintenance and reduces downtime. Multi-pole assemblies can be field-configured using the US3JPAK pin-tie assembly kit (sold separately), allowing flexible system expansion without redesign. Optional blown-fuse indicators provide clear visual confirmation of fuse status without compromising safety. Rated for 200kA SCCR, this fuseholder meets the demands of high-fault applications while ensuring operator safety.
  • 30A Class J fuse capacity (22x58mm IEC cylindrical or Class J fuses)
  • Finger-safe IP20 protection per IEC standards for operator safety
  • Snap-mount on 35mm DIN-rail with unique latch for easy fuse replacement
  • Compact dimensions: 32.5mm W x 65mm D x 97.5mm H
  • Available in 1, 2, or 3-pole configurations with optional blown-fuse indicators
  • Field-configurable multi-pole assemblies using pin-tie handles
  • Rated 600VAC/DC, 200kA SCCR for high-fault applications

Specifications

Application
600V motors, transformers, lighting, heating, control circuits, general loads
Brand Name
Ferraz Shawmut
Class
Accessory
Connection Type
Screw Terminal (#2 to #14 AWG)
Current Rating
30 A
IP Rating
IP20
Material
Polyamide
Mounting Type
35mm DIN-rail
Poles
1-3 poles
Series
UltraSafe
Size
32.5mm W x 65mm D x 97.5mm H
Special Features
Finger-safe IP20 protection Optional blown fuse indicator lights DIN-rail mount Compact footprint Quick, easy fuse change
Standard
UL Listed to standard 4248-8, File E52283 CSA Certified C22.2, Class 6225, File 32169
Type
UltraSafe
Voltage Rating
600 VAC
Package Dimensions (L x W x H)
1 IN x 1 IN x 1 IN
Package Dimensions (L x W x H)
25.4 mm x 25.4 mm x 25.4 mm
Package Weight (Imperial)
0.050 L
Package Weight (Metric)
0.023 kg
Mersen UltraSafe modular class J fuseholders introduce a new level of safety and ease for installing or replacing class J fuses. UltraSafe fuseholders qualify as finger-safe to an IP20 grade of protection under IEC standards. The US3J accommodates 30A class J or IEC cylindrical 22x58mm fuses. The US6J accommodates 60A class J. UltraSafe fuseholders are available in compact 1, 2, or 3-pole units, with or without visual blown fuse indication. Multiple poles can be assembled in the field by ordering and installing pin-tie handles. US3J and US6J fuseholders can be mounted on 35mm DIN-rail. Body material is a tough and durable polyamide. 60A size pin tie kit series.

US6JPAK

Mersen UltraSafe modular class J fuseholders introduce a new level of safety and ease for installing or replacing class J fuses. UltraSafe fuseholders qualify as finger-safe to an IP20 grade of protection under IEC standards. The US3J accommodates 30A class J or IEC cylindrical 22x58mm fuses. The US6J accommodates 60A class J. UltraSafe fuseholders are available in compact 1, 2, or 3-pole units, with or without visual blown fuse indication. Multiple poles can be assembled in the field by ordering and installing pin-tie handles. US3J and US6J fuseholders can be mounted on 35mm DIN-rail. Body material is a tough and durable polyamide. 60A size pin tie kit series.
Fuse Holder UltraSafe™ 600VAC 600VDC Class CC 30A 3-Pole Pressure Plate IP20

USCC3

Fuse Holder UltraSafe™ 600VAC 600VDC Class CC 30A 3-Pole Pressure Plate IP20
600VAC 600VDC Class CC 30A 3-Pole LED and Microswitch Pressure Plate IP20

USFMCCMI

600VAC 600VDC Class CC 30A 3-Pole LED and Microswitch Pressure Plate IP20
Fuse Holder UltraSafe™ 800VAC 1000VDC Midget 30A 3-Pole Pressure Plate IP20

USM3

Fuse Holder UltraSafe™ 800VAC 1000VDC Midget 30A 3-Pole Pressure Plate IP20
Fuse Holder Modulostar® 600VAC 600VDC Class CC 3-Pole

G1062790

Fuse Holder Modulostar® 600VAC 600VDC Class CC 3-Pole

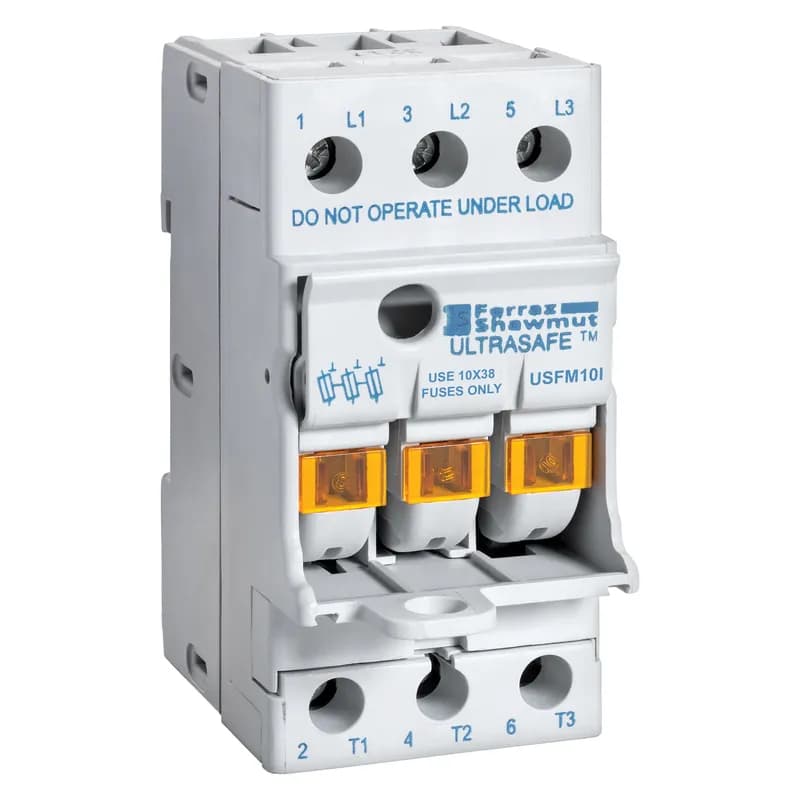

Fuse Holder UltraSafe™ 600VAC 600VDC Midget 30A 3-Pole LED Pressure Plate IP20

USM3I

Fuse Holder UltraSafe™ 600VAC 600VDC Midget 30A 3-Pole LED Pressure Plate IP20
600VAC 600VDC Class CC 30A 3-Pole LED Pressure Plate IP20

USFMCCI

600VAC 600VDC Class CC 30A 3-Pole LED Pressure Plate IP20
600VAC 600VDC Midget 30A 3-Pole Pressure Plate IP20

USFM10

600VAC 600VDC Midget 30A 3-Pole Pressure Plate IP20
600VAC 600VDC Class CC 30A 3-Pole Microswitch Pressure Plate IP20

USFMCCM

600VAC 600VDC Class CC 30A 3-Pole Microswitch Pressure Plate IP20
Fuse Holder UltraSafe™ 750VAC 1000VDC Midget 30A 3-Pole Cage Clamp IP20

USGM3

Fuse Holder UltraSafe™ 750VAC 1000VDC Midget 30A 3-Pole Cage Clamp IP20
Fuse Holder UltraSafe™ 600VAC 600VDC Midget 30A 3-Pole+N LED Pressure Plate IP20

USM3IN

Fuse Holder UltraSafe™ 600VAC 600VDC Midget 30A 3-Pole+N LED Pressure Plate IP20

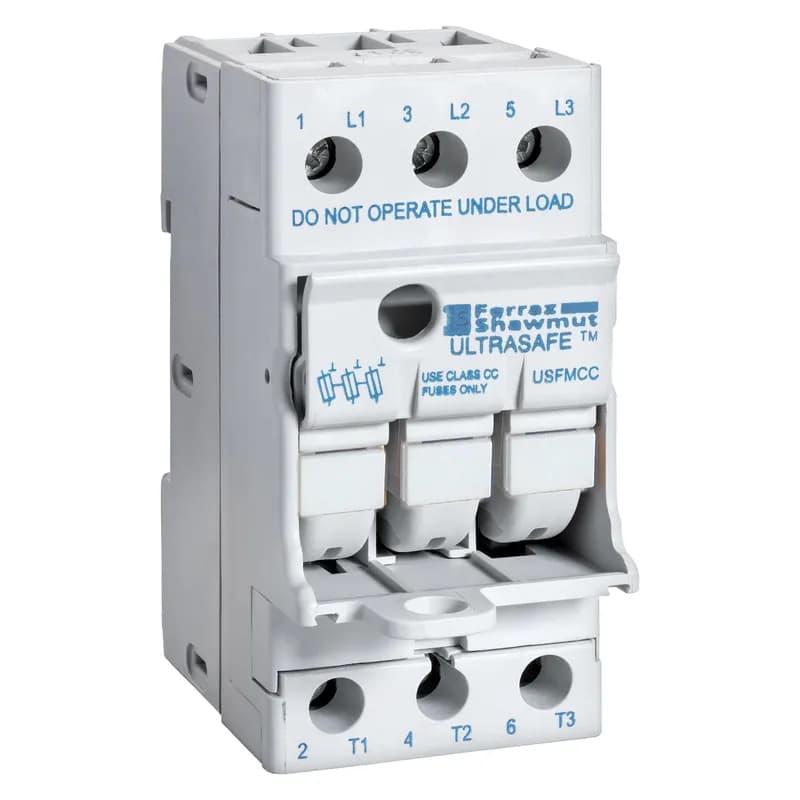

600VAC 600VDC Class CC 30A 3-Pole Pressure Plate IP20

USFMCC

600VAC 600VDC Class CC 30A 3-Pole Pressure Plate IP20

Frequently Asked Questions

What is the voltage and ampere rating for the US3J fuse holder?

The US3J fuse holder has a voltage rating of 600VAC/DC and a maximum ampere rating of 30A.

Are these fuse holders finger-safe?

Yes, the UltraSafe™ modular fuse holders qualify as finger-safe to an IP20 grade of protection under IEC standards.

Can these fuse holders be locked in the open position?

Yes, all units have provisions for locking in the open position for safety during fuse changeouts or servicing.

What is the Ampere rating for the US6J fuse holder?

The US6J fuse holder has a maximum Ampere rating of 60A.

What type of fuses are compatible with the US3J fuse holder?

The US3J fuse holder accommodates 30A Class J or 22 x 58 mm French Ferrule fuses.

Can these fuse holders be mounted on a DIN-rail?

Yes, the US3J and US6J holders can be snap-mounted to a 35 mm DIN-rail.

What is the body material of the UltraSafe fuse holders?

The UltraSafe fuse holder body material is tough and durable polyamide.

What is the SCCR rating for these fuse holders?

The Short Circuit Current Rating (SCCR) for the US3J and US6J fuse holders is 200kA.

What is the wire range for the terminal connectors?

The terminal connectors accept wire sizes from #2 to #14, which can be solid or stranded copper.

What is the minimum voltage required for the indicator light to operate?

The indicator light requires a minimum of 90VAC or 115VDC to operate.

Frequently Asked Questions about Mersen

What industries and applications are Mersen products used for?

Mersen products are used across diverse industrial sectors including solar power, electric vehicles, buildings/construction, industrial automation, power distribution, HVAC, elevators, telecommunications, and specialty manufacturing. Key application areas include circuit protection, surge protection, battery module protection, electrical safety systems, and power management for residential, commercial, and utility-scale installations.

What are the main product lines offered by Mersen?

Mersen offers five primary electrical power product lines: IEC and UL/CSA Fuses and Fusegear, Surge Protection, Low Voltage Disconnect Switches, Power Distribution Blocks, and Engineered Solutions. Their comprehensive range includes specialized components like high-speed fuses, modular fuse holders, surge arresters, and custom-engineered electrical protection systems for industrial and power management applications.

What are the key features of Mersen products?

Mersen products feature advanced electrical protection and power management solutions with key characteristics including finger-safe design, compact modularity, and high-performance safety features. Their product lines span electrical power components like fuses, surge protection, power distribution blocks, and specialized solutions for industrial, solar, and building applications. Critical features include UL/CSA approvals, high short-circuit current ratings, and innovative technologies like the Fuse Control™ program that minimize electrical risks and optimize system performance.

What environmental ratings do Mersen products have?

Mersen products meet rigorous environmental ratings across multiple standards, including UL 508A Type 1, 2, 3, 4, 4X, 12, and 13, CSA Type 1, 2, 3, 4, 4X, 12, and 13, and NEMA Type 1, 2, 3, 4, 4X, 12, and 13. They feature IEC 60529 IP66 protection, with enhanced UV inhibitors for outdoor weathering and operating temperatures ranging from -40°C to 130°C (-40°F to 266°F). These ratings ensure superior protection in wet, corrosive, and challenging industrial environments.

What accessories are available for Mersen products?

Mersen offers multiple accessories for their fuse blocks and systems, including safety pullers (DFC3M and DFC3LP), DIN-rail adapters (DRM), bus bars, auxiliary contacts, and specialized mounting hardware. Key accessories include the DFC3M safety puller for 1-1/2" x 13/32" midget or Class CC fuses, the DRM adapter for mounting 303 series fuse blocks on DIN-rail, and UltraSafe fuse module accessories like bus bars and auxiliary contacts that enable module interconnection and monitoring.
