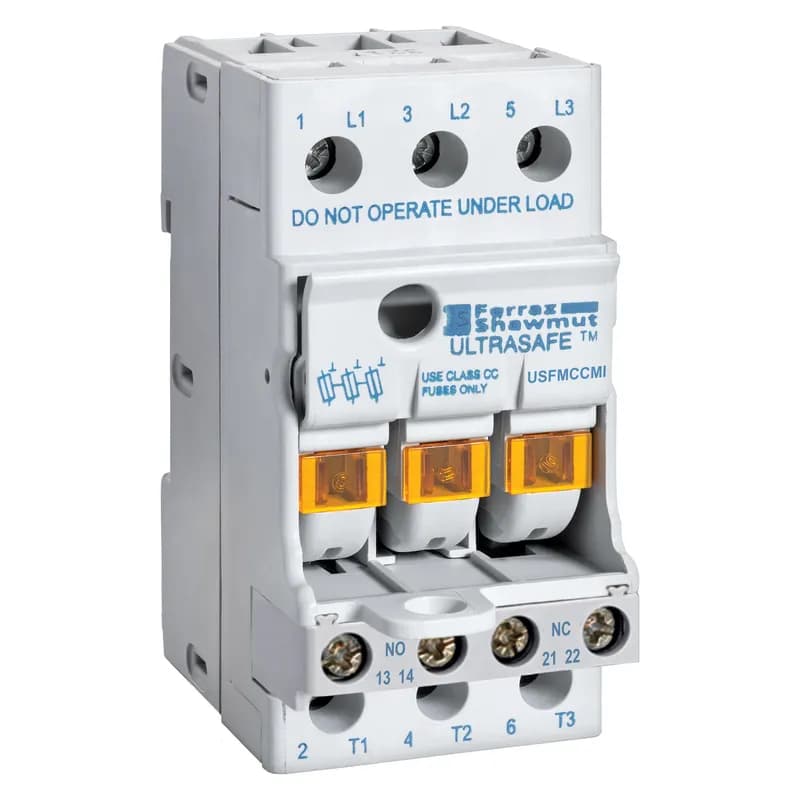

Mersen USFMCCMI - 600VAC 600VDC Class CC 30A 3-Pole LED and Microswitch Pressure Plate IP20
Mersen

USFMCCMI

Alternate Item Number: USFMCCMI

UPC: 782001356835

Documents & Media
Line Drawing

Contact for Pricing

Overview

The Mersen UltraSafe™ Fuse Module (USFMCCMI) is a high-performance, Class CC fuse module engineered for 45mm IEC contactors, delivering robust protection at 600VAC/600VDC and 30A continuous current. Designed to meet the demands of modern industrial and commercial electrical systems, this compact module integrates seamlessly with IEC contactor assemblies while offering advanced safety and operational features not found in standard Class CC or midget fuse holders. The USFMCCMI is part of Mersen’s renowned UltraSafe™ product line, a trusted name in electrical protection solutions for over a century, ensuring reliability in mission-critical applications. This 3-pole fuse module features an auxiliary contact with an LED and microswitch pressure plate, enabling immediate load drop-out when the fuse extractor handle is opened—a critical safety function for maintenance personnel. The auxiliary contact can be wired to adjacent contactors, providing an interlock that prevents accidental exposure to live circuits during fuse replacement. Additional safety features include padlock capabilities for secure operation, compact busbars for streamlined line-side terminations, and tool-free removal from DIN-rail mounting, reducing installation time and complexity. The USFMCCMI is built with Mersen’s signature IP20 protection, safeguarding against accidental contact with live components while allowing for clear visual indication of an open fuse condition. Its easy-operating fuse extraction handle ensures smooth maintenance, and the compact design optimizes panel space without compromising performance. Whether used in motor control centers, panelboards, or industrial machinery, this fuse module is ideal for applications requiring high interrupting ratings, precise fault protection, and compliance with stringent safety standards. Industries such as manufacturing, automation, HVAC, and renewable energy rely on Mersen’s UltraSafe™ Fuse Modules for their proven durability, compliance with UL and IEC standards, and compatibility with a wide range of IEC contactors. Professionals select the USFMCCMI for its unique combination of safety, functionality, and ease of installation, making it a preferred choice for engineers and electricians seeking a dependable Class CC solution. With Mersen’s global reputation for innovation and quality, the USFMCCMI delivers unmatched protection and peace of mind in electrical distribution systems.
  • 600VAC/600VDC, 30A Class CC fuse module for 45mm IEC contactors
  • Auxiliary contact with LED and microswitch pressure plate for immediate load drop-out
  • Padlock capabilities, compact busbars, and tool-free DIN-rail removal
  • IP20 protection with open fuse visual indication for enhanced safety
  • Part of Mersen’s trusted UltraSafe™ line, compliant with UL and IEC standards

Specifications

AC Voltage Rating
600 V
Amperage Rating
30 A
Application
Primarily for motor circuits to replace circuit breakers for higher SCCR ratings Other circuits up to 600 volts for control circuits, transformers, etc. Non-load disconnect Padlock compliance RECOMMENDED FUSE USAGE: USM use with: ATQ, ATM(1), A6Y-2B, A25Z-2, TRM, OTM, A13X-2, A60Q-2, DCT(1) USCC use with: ATDR, ATMR(1), ATQR (1) Recommended for DC applications
Application
Primarily for replacement of circuit breakers in motor circuits to achieve higher SCCR Circuits up to 600V for motors, control, transformers, etc… Applications requiring lock-out / tag-out procedures
Brand Name
Ferraz Shawmut
Class
Class CC
Connection
Pressure Plate
Connection Type
Line side terminations (compact busbars)
Current Rating
30A
DC Voltage Rating
600 V
IP Rating
IP20
Mounting
DIN Rail
Mounting
DIN-rail
Mounting Type
DIN-Rail
Number of poles
3
Phase
3
Poles
3-pole
Series
UltraSafe
Size
1.77 x 2.58 x 3.54 in
Special Features
Dedicated 3-pole fuse module Finger-safe Compact footprint with 45mm width Auxiliary contact option (1NO/1NC) Ability to padlock in OPEN position with 1/4" shank diameter DIN-rail mount with tool free removal Quick, easy fuse change Optional indicator lights
Special Features
Dedicated 3-pole fuse module Compact footprint - 45mm width IP20 Finger-safe Auxiliary contact option (1NO/1NC) Ability to padlock in Open position with 1/4" diameter shank DIN-rail mount with tool free removal Optional visual blown fuse indication
Standard
USFMCC (Class CC Fuses) UL Listed, guide IZLT, File E52283 CSA Certified C22.2, class 6225 01, File 32169 USFM10 (Midget 10x38mm Fuses) UL Recognized Component, guide IZLT2, File E52283 CSA Certified C22.2, Class 6225 01, File 32169 IEC Certified 60269-1, 60947-3 (690VAC, 32A, 120kA)
Standard
UL Listed to standard 4248-4, File E52283 CSA Certified C22.2, Class 6225, File 32169 UL Listed to standard 508, File E336456 UL Recognized Component to standard 4248-1, File E319605 UL Recognized Component to standard 4248-14, File E52283 CSA Certified C22.2, Class 6225, File 32169 IEC Compliant to 60269-2-1, 60947-3
Type
UL/CSA Fuse Holders
Type
UltraSafe
Voltage Rating
600 VAC
Voltage Rating
600VAC/600VDC
Voltage Rating
600VAC 600VDC
Package Dimensions (L x W x H)
3.54 IN x 2.27 IN x 2.27 IN
Package Dimensions (L x W x H)
8.9916 cm x 5.7658 cm x 5.7658 cm
Package Weight (Imperial)
0.450 L
Package Weight (Metric)
0.204 kg

Similar Products

USFMCCM

USFMCC

Connection Type: Pressure Plate

Voltage Rating: 600 VAC/VDC

Current Rating: 30 A

USFMCCI

Connection Type: LED Pressure Plate

USFM10MI

Class: Midget

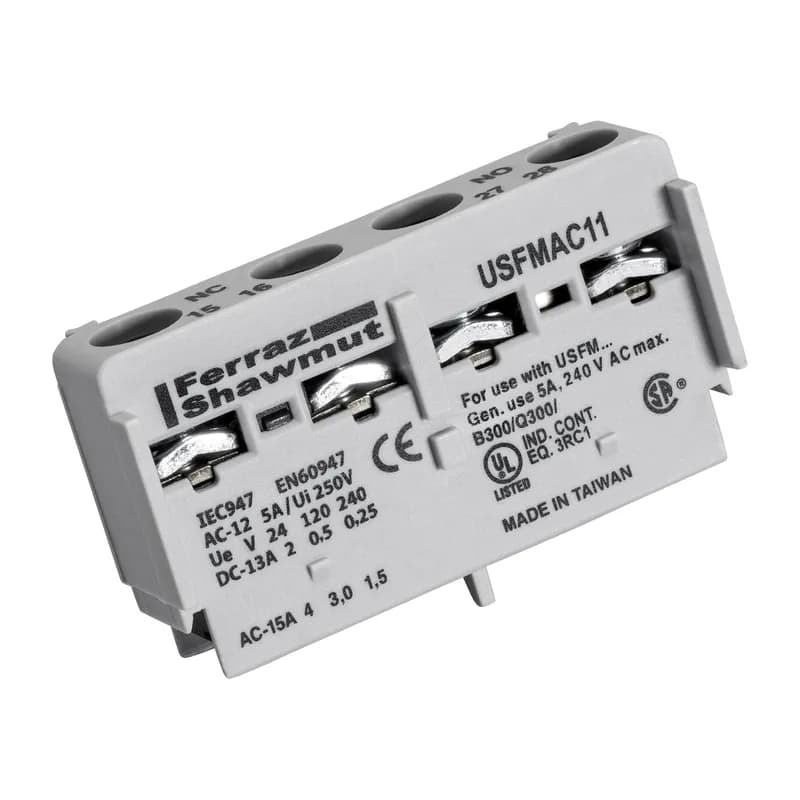

USFMAC11

Amperage Rating: 5 A

Class: Accessory

Short Circuit Rating: 200 kA

USFM10M

Class: Midget

Size: 1.77 x 2.58 x 3.53 in

You May Also Be Interested In

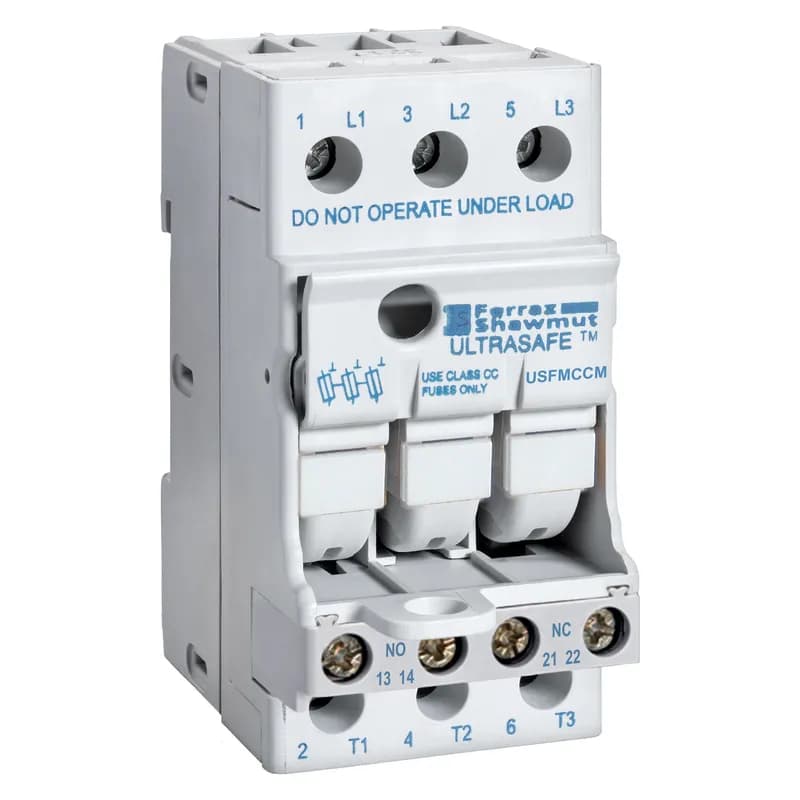

600VAC 600VDC Class CC 30A 3-Pole Microswitch Pressure Plate IP20

USFMCCM

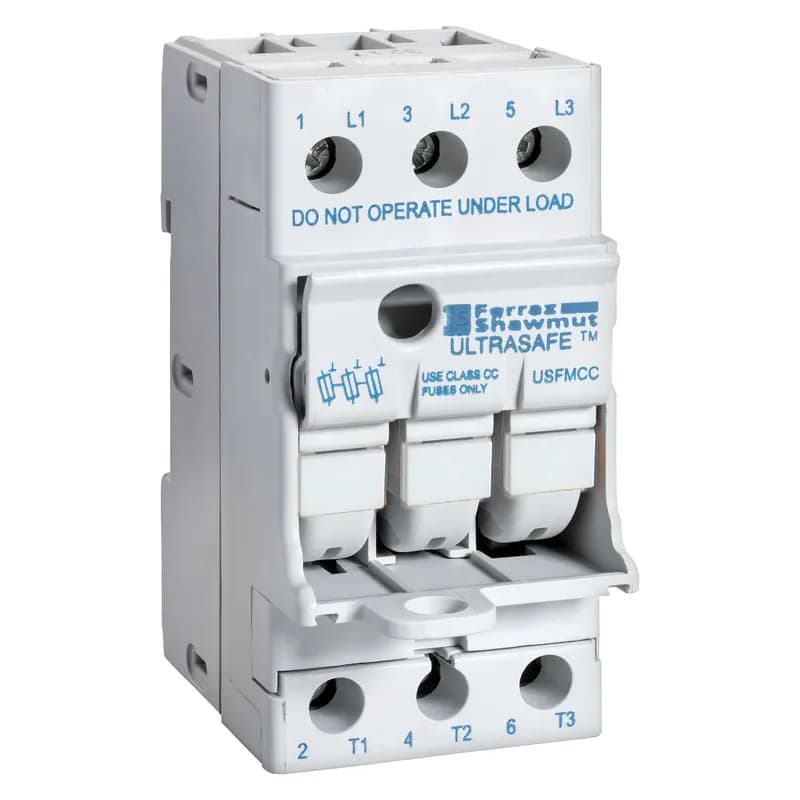

600VAC 600VDC Class CC 30A 3-Pole Pressure Plate IP20

USFMCC

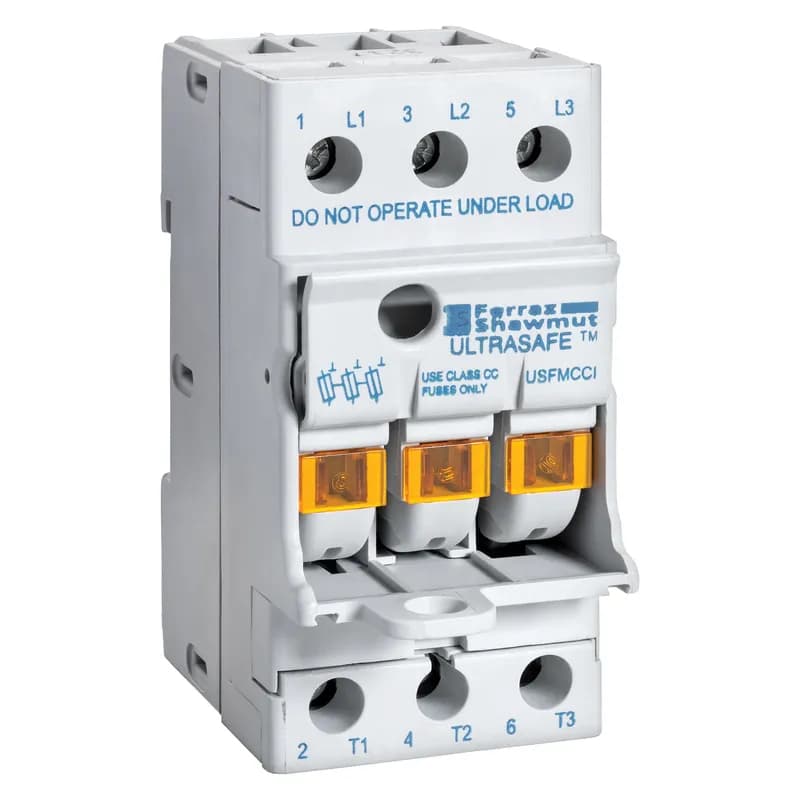

600VAC 600VDC Class CC 30A 3-Pole LED Pressure Plate IP20

USFMCCI

600VAC 600VDC Midget 30A 3-Pole LED and Microswitch Pressure Plate IP20

USFM10MI

Mersen UltraSafe Fuse Modules (USFM) have a unique, compact design suited for use with 45mm wide IEC contactors. These modules also offer other features not found on other class CC and midget UltraSafe fuseholders such as an auxiliary contact option. When the auxiliary is wired to an adjacent contactor the load is dropped out by the contactor immediately once the fuse extractor handle is opened. Additionally, the fuse module features padlock capabilities, compact bus bars for line side terminations, and tool free removal from DIN rail. Yet the fuse modules still incorporate well known UltraSafe features such as IP20 protection, easy operating fuse extraction handles and an open fuse visual indication option. Blank marking strip
