Overview

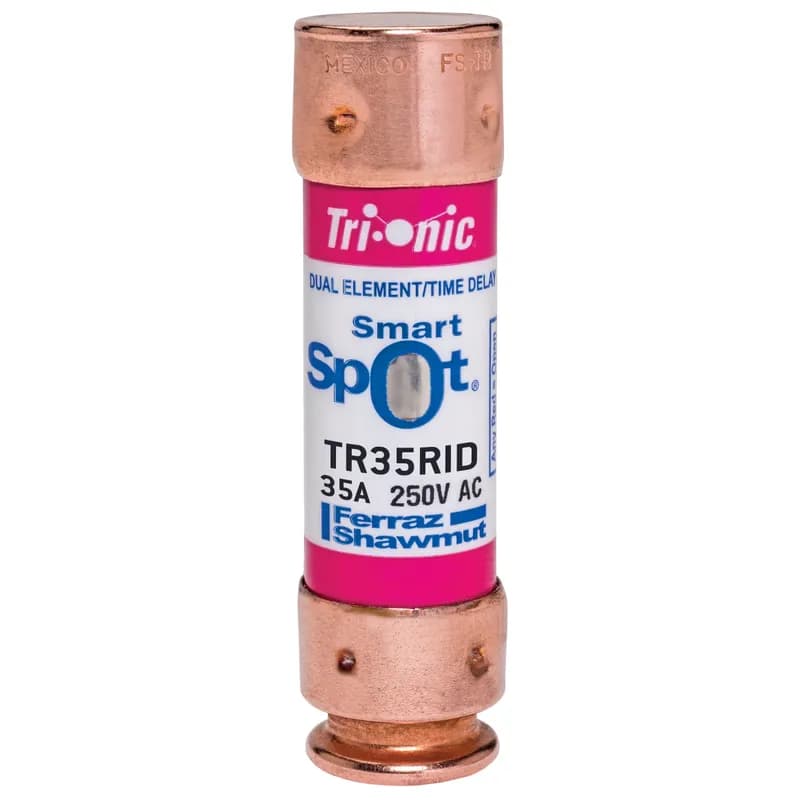

- Class RK5, Time-Delay, Current-Limiting Fuse
- Rated 35A, 250VAC / 250VDC
- 200kA Interrupting Rating (AC) / 20kA Interrupting Rating (DC)
- Protects motors, transformers, feeders, and branch circuits
- Rejection-style design prevents replacement errors
Specifications
AC Voltage Rating | 250 V |
Amperage Rating | 35 A |
Application | Motor circuits Mains Feeders Branch circuits Transformers Service entrance equipment General-purpose equipment |
Body Material | PolyTube |
Brand Name | Mersen |
Class | Class RK5 |
Connection | Ferrule |
Connection Material | Copper |
Connection Type | Ferrule |
Current Rating | 35A |
Interrupt Rating | 200 kA |
Mounting | Clip |
Series | Tri-Onic TR-R |
Size | 3 x 0.81 in |
Size | 76.2 x 20.65 mm |
Size | 3 x 0.81;76.2 x 20.65 in;mm |
Special Features | Time-delay Current-limiting AC & DC rated Optional solid state SmartSpot blown fuse indicator Time-delay for motor start-ups and transformer inrush currents without nuisance opening Current-limiting for low peak let-thru current Rejection-style design prevents replacement errors (when used with recommended fuse blocks) Easy-to-read label for quick brand recognition and replacement Metal-embossed date and catalog number for traceability and lasting identification Fiberglass body provides dimensional stability in harsh industrial settings High-grade silica filler ensures fast arc quenching and high current limitation |
Standard | UL listed to standard 248-12 File E2137 CSA certified to standard C22.2 no. 248.12 DC listed to UL standard 248 TRS only |
Sub Brand | Tri-Onic® |
Type | Class RK5 |
Voltage Rating | 250 VAC |
Package Dimensions (L x W x H) | 3 in x 0.81 in x 0.81 in |
Package Dimensions (L x W x H) | 76.2 mm x 20.65 mm x 20.65 mm |
Package Weight (Imperial) | 0.119 lb |
Package Weight (Metric) | 0.054 kg |
