Contact for Pricing

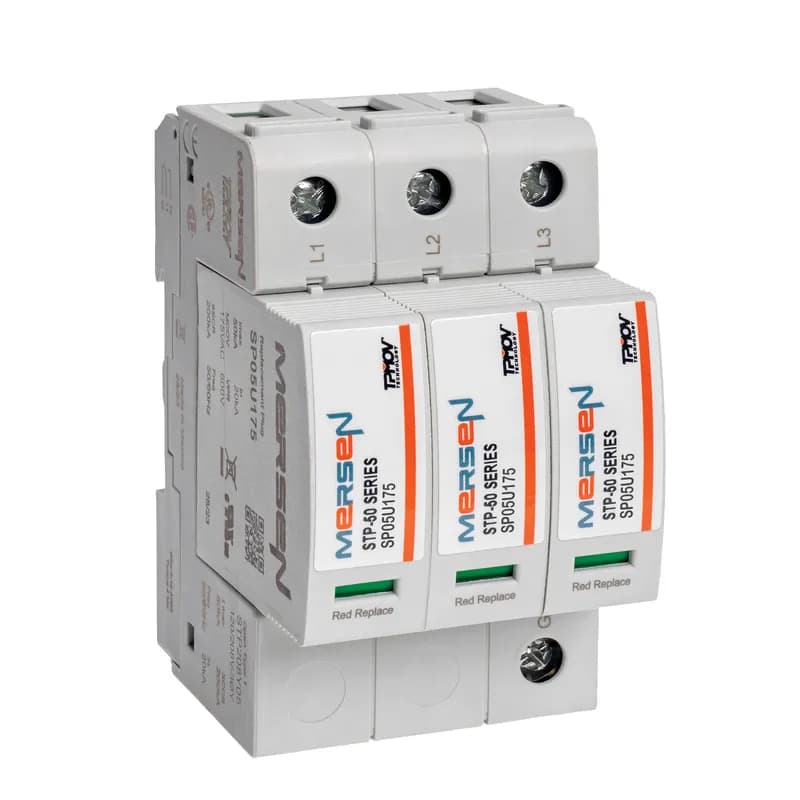

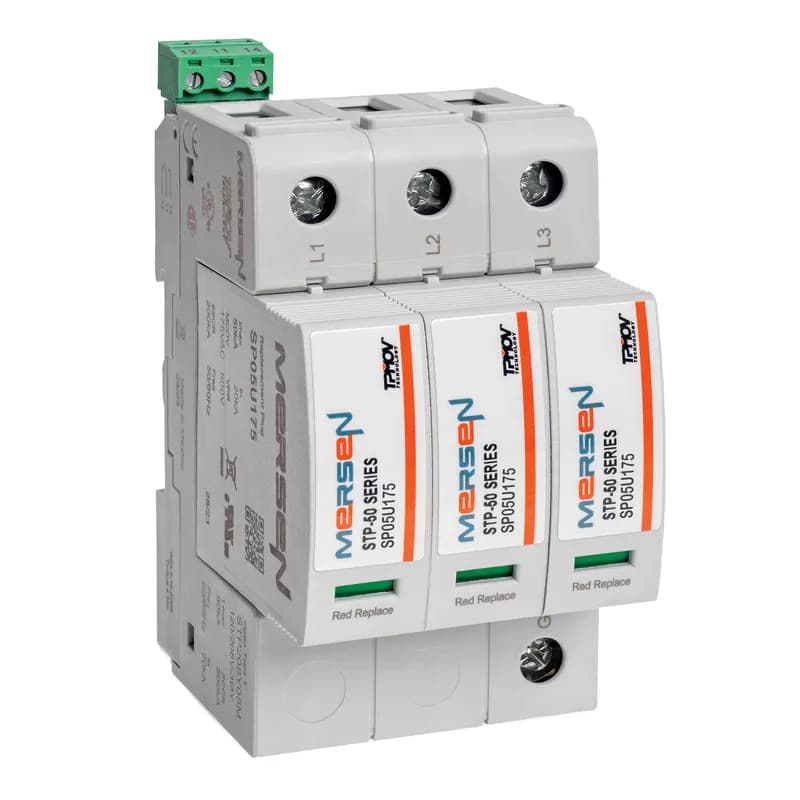

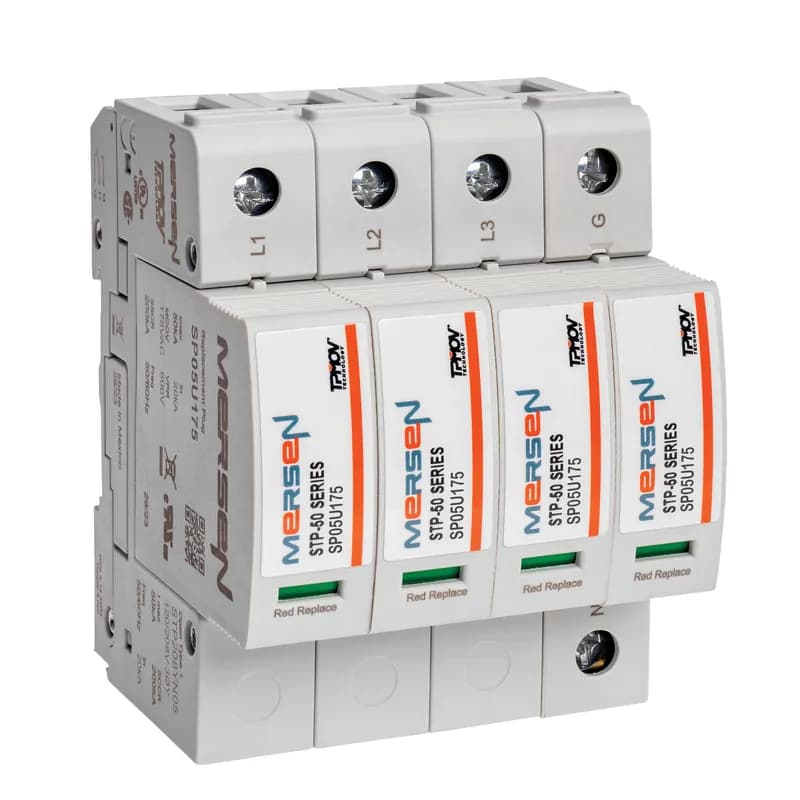

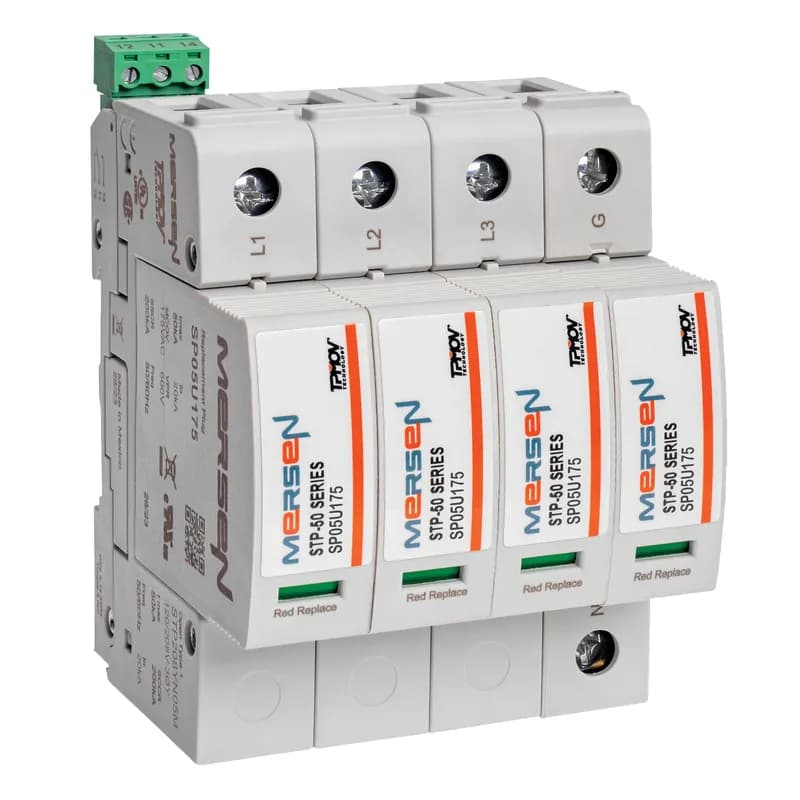

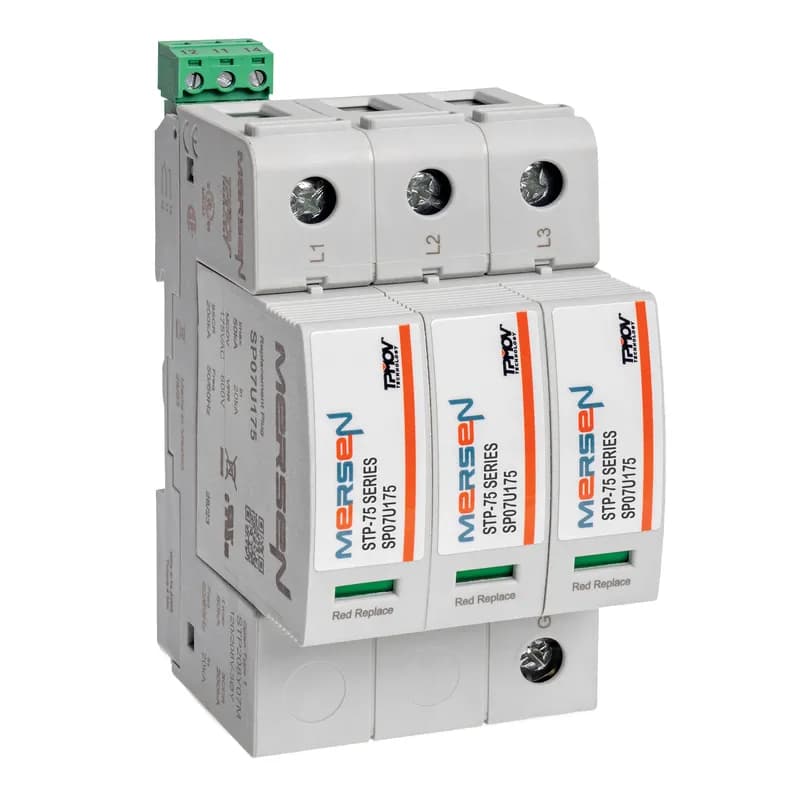

Overview
- No-fuse, failsafe design eliminates need for additional overcurrent protection
- TPMOV® technology for reliable surge suppression in industrial environments
- DIN-rail mountable with compact footprint for space efficiency
- Visual and remote indicators for real-time status monitoring
- High short circuit current rating for robust performance
Specifications
Application | Industrial Control Panels Water treatment Smart grid & LV Metering Traffic / ITS applications. Intended for use on a wide range of low voltage applications inside appropriate enclosures |
Connection | Box |
Frequency Rating | 50/60 HZ |
Material | PET (Polyethelene Terphthalate) |
Mounting | DIN Rail |
Operating Temperature, Maximum | 185 F |
Operating Temperature, Maximum | 85 C |
Operating Temperature, Minimum | -40 F |
Operating Temperature, Minimum | -40 C |
Phase | 3- |
Response Time | <25 |
Size | 4.19 x 2.07 x 2.81;106.426 x 52.578 x 71.374 in;mm |
Special Features | Easy installation or retrofit DIN-rail mountable Fail-safe, self-protected design Remote indicator Visual indicator IP20 finger-safe design Small footprint No additional overcurrent protection devices required Easy to replace modules 2-year warranty |
Special Features | Designed with industry leading Mersen TPMOV technology Easy installation or retrofit Reversible chassis allows cable entry from top or bottom Replaceable modules with mechanical coding to avoid replacement errors 5-year warranty |
Standard | ANSI/UL 1449 5th Edition, Type 1 Component Assembly SPD, File E210793 CSA C221331certified Type 4-1, File 80032802 ANSI/IEEE C62.41.1, C62.41.2, C62.45 RoHS Compliant |
Standard | ANSI/UL 1449 5th Edition, Open Type 1 SPD Listed, File E210793 ANSI/IEEE C62.41.1, C62.41.2, C62.45 CSA C22.2 No. 269 Certified, File 162842 RoHS Compliant |
Type | DIN-RAIL UL CSA TYPE 1 |
Type of Indicators | Microswitch |
UL SPD Type | Type 1 Component Assembly |
Package Dimensions (L x W x H) | 4.19 in x 2.07 in x 2.81 in |
Package Dimensions (L x W x H) | 106.426 mm x 52.578 mm x 71.374 mm |
Package Weight (Imperial) | 1.150 lb |
Package Weight (Metric) | 0.522 kg |
