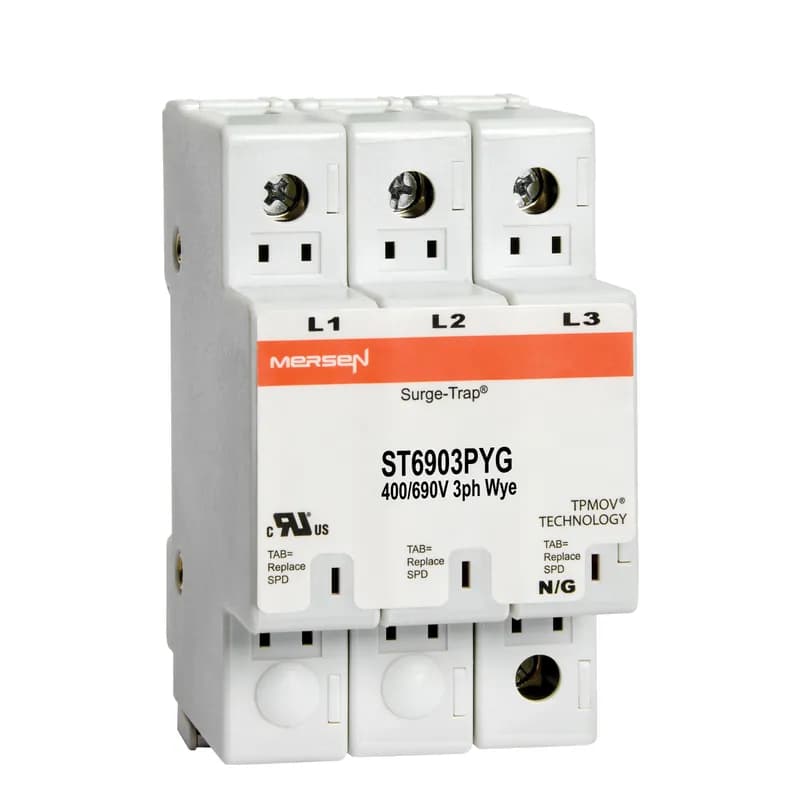

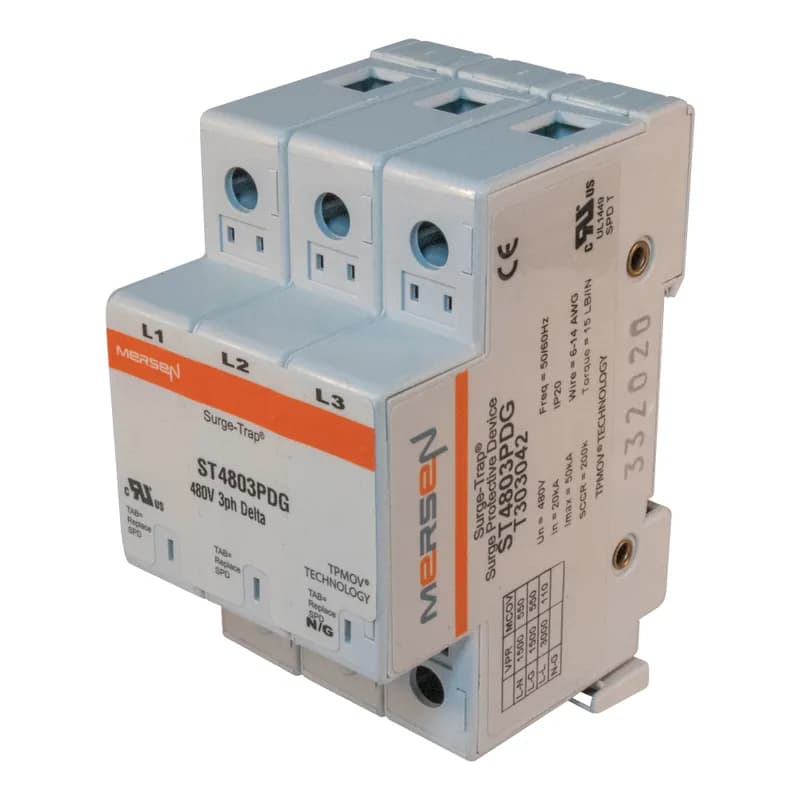

Mersen ST4803PDGM Surge-Trap® Surge Protective Device is a no-fuse surge suppressor. The Surge-Trap is a…
Alternate Item Number: ST4803PDGM
UPC: 782001361686
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- UL 1449 5th Edition compliant modular surge protective device
- 480VAC 3P Delta system compatibility without N-G mode
- TPMOV® technology eliminates need for additional overcurrent protection
- DIN-rail mountable with visual and remote indicator options
- High short-circuit current rating for industrial control panels
Specifications
Application | Industrial Control Panels Water treatment AC Drives Smart grid & LV Metering Security Systems Traffic / ITS applications. Intended for use on a wide range of low voltage applications inside appropriate enclosures |
Application | AC/DC distribution Power supplies Industrial automation Telecommunications Motor controls and starter systems Programmable logic controller (PLC) applications Power transfer equipment HVAC applications AC drives UPS systems Security systems IT / Data centers Medical equipment |
Brand Name | Mersen |
Connection | Box |
Connection Type | DIN-rail mount |
Frequency Rating | 50/60 HZ |
Material | PET (Polyethelene Terphthalate) |
Mounting | DIN Rail |
Mounting | DIN-rail |
Mounting Type | DIN-Rail |
Operating Temperature, Maximum | 185 F |
Operating Temperature, Maximum | 85 C |
Operating Temperature, Minimum | -40 F |
Operating Temperature, Minimum | -40 C |
Phase | 3- |
Poles | 3P Delta |
Response Time | <25 |
Series | Surge-Trap |
Short Circuit Rating | 200 kA |
Short-Circuit Rating | 200 kA |
Size | 3.58 x 2.8 x 2.7;90.932 x 71.12 x 68.58 in;mm |
Special Features | Easy installation or retrofit Din-rail mountable Fail-safe /self-protected design Remote indicator (optional) with 3 pin NO/NC contact IP20 finger-safe design Visual indicator Small foot print No additional overcurrent protection devices needed |
Special Features | Designed with industry leading Mersen TPMOV technology Easy installation Cost-effective protection Remote Indicator (optional) 2-year warranty |
Standard | ANSI/UL 1449 5th Edition, Type 1 Component Assembly, File E210793 ANSI/IEEE C62.41.1, C62.41.2, C62.45 RoHS Compliant |
Standard | UL 1449 Third Edition, File No E210793 Type 1 Component Assembly IEC 61643-1 ANSI/IEEE C62.41 CE RoHS compliant |
Sub Brand | Surge-Trap® |
Type | DIN-RAIL UL CSA TYPE 1 |
Type Of Indicators | Microswitch |
UL SPD Type | Type 1 Component Assembly |
Voltage Rating | 480 VAC |
Package Dimensions (L x W x H) | 4.88 IN x 2.88 IN x 2.75 IN |
Package Dimensions (L x W x H) | 12.3952 cm x 7.3152 cm x 6.985 cm |
Package Weight (Imperial) | 0.893 L |
Package Weight (Metric) | 0.405 kg |
