Overview
- Designed for Mersen SLR and SMF 300VAC in-line fuses
- Rated for 15A with a 10kA interrupting rating
- Thermoplastic insulator with 150°C RTI and 2,000V dielectric strength
- Secure retention for #18 AWG leads with 'no-clip' design
- UL Recognized Component for industrial and commercial applications
Specifications
Amperage Rating | 15 A |
Application | Fluorescent lighting fixtures and ballasts |
Brand Name | Ferraz Shawmut |
Connection | Bayonet |
Connection Type | #18 AWG leads |
Current Rating | 15 A |
Material | Thermoplastic |
Mounting | Panel |
Phase | 1 |
Series | SHR |
Special Features | 300V 15A Thermoplastic body w/single or two wire version availability and integral mounting clip, tin-plated, insulated #18 solid copper 6" wire lead |
Standard | UL Recognized |
Type | In-line Fuse Holders |
Voltage Rating | 300 VAC |
Package Dimensions (L x W x H) | 2.32 IN x 0.875 IN x 0.875 IN |
Package Dimensions (L x W x H) | 5.8928 cm x 22.225 mm x 22.225 mm |
Package Weight (Imperial) | 0.040 L |
Package Weight (Metric) | 0.018 kg |
04820001ZXP

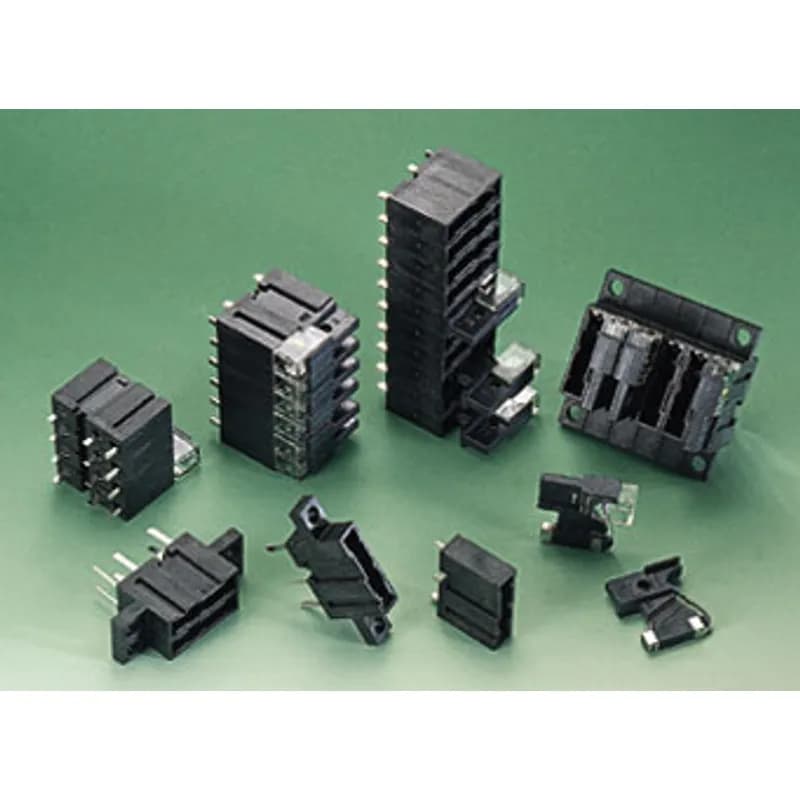

PANEL MOUNT ALARM FUSE FUSEHOLDER. Ideal for telecommunications and control panel circuits, the 482 Series fuseholder series is designed for use with Littelfuse 481 Alarm Indicating Fuses. Each holder is designed to accept other manufacturer’s replacement fuses as well. The fuseholder is available in three versions: PCB Mount - 15A: Can be soldered directly to a printed circuit board. Rated up to 15 amperes. Available in single pole or gangable up to 20 poles. Fuseholder is keyed to prevent insertion of 20 ampere fuse. Can be soldered directly to a printed circuit board. Rated up to 15 amperes. Available in single pole or gangable up to 20 poles. Fuseholder is keyed to prevent insertion of 20 ampere fuse. Panel Mount - 20A: Available in a single pole version rated up to 20 amperes. Large leads for wire attachment. Available in a single pole version rated up to 20 amperes. Large leads for wire attachment. Panel Mount - 15A: 15 ampere gangable version of fuseholder is keyed to prevent insertion of 20 ampere fuse. 15 ampere gangable version of fuseholder is keyed to prevent insertion of 20 ampere fuse.
E91/125S
E 90 50/125 fuse holders are appropriate to protect against overloads and short circuits. They are designed for use with cylindrical fuses from 50 to 125 A.
IP20
Terminal Covers (2 Covers Per Kit). Field installed primary and secondary IEC Touch Proof Cover Kit.
