Pfannenberg
18813000026
Alternate Item Number: Fuse Holder GPM-B 600V CC
Contact for Pricing
Overview
The Pfannenberg GPM-B 600V CC Fuse Holder (SKU: 18813000026) is a UL Recognized and CSA Certified panel mount fuse holder designed for industrial Class CC fuses. It supports a maximum operational voltage of 600VAC/DC and a maximum current of 30A. Key features include a 1/4 turn bayonet knob for fast, tool-free fuse installation and removal, and a PET insulator for enhanced reliability.
- UL Recognized and CSA Certified
- Maximum operational voltage: 600VAC/DC
- Maximum current: 30A
- 1/4 turn bayonet knob for tool-free fuse installation and removal
- PET insulator for enhanced reliability
Specifications
Connection Type | 1/4" quick-connect/solder terminals |
Current Rating | 30 A |
Material | PET insulator |
Mounting Type | panel mount (front and rear) |
Series | GPM-B |
Voltage Rating | 600 V |
Voltage Rating | 600 VAC/DC |
571RCC

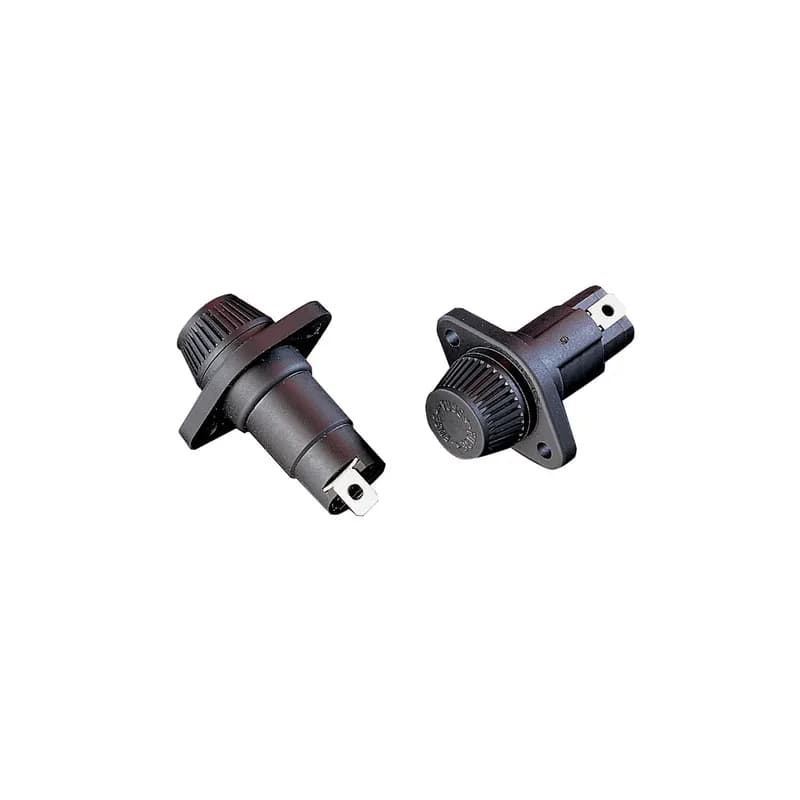

Panel mount fuseholders are available for supplementary or Class CC branch circuit protection. Class CC fuses have a rejection feature on one end cap which mates with the rejection feature of Littelfuse Class CC fuse blocks and fuseholders to prevent the installation of fuses with lower voltage ratings or interrupting ratings. Watertight version must be front panel mounted.
