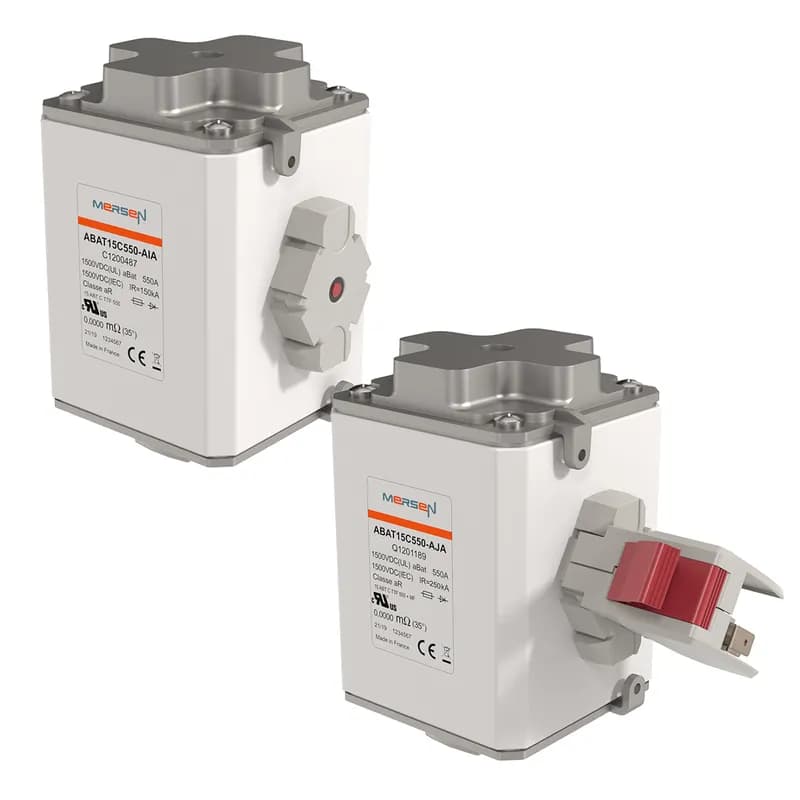

Mersen H1200492 - ABAT Size C, voltage : up to 1500VDC (with L/R≤3ms), Class : aBat, 1000A, with Metric thread Flush Ends
Mersen

H1200492

Alternate Item Number: ABAT15C1000-AIB

Contact for Pricing

Overview

The Mersen H1200492, an ABAT Size C fuse, provides robust DC protection for demanding applications, including battery containers and inverters. Engineered to meet IEC 60269-7, this fuse is rated for up to 1500VDC with an L/R ratio of ≤3ms and a current rating of 1000A. It features metric thread connections and flush ends for secure mounting. The ABAT15C series, to which this fuse belongs, is designed for voltages from 1000VDC up to 1500VDC, with current ratings spanning 500A to 1250A. These fuses offer a very high interrupting rating, ensuring effective fault clearing while maintaining limited power loss. Constructed with a solid assembly, they provide excellent thermal and mechanical withstand capabilities. Available in phenolic resin models for basic applications and fiberglass polyester for corrosive atmospheres or traction applications, this range ensures versatility. The H1200492 is UL recognized (File E113357) and manufactured in France, carrying CE marking. Its dielectric withstand tests include 6kV (basic model) and 12kV (salt spray-proof model) for RMS voltage 1 minute 50/60 Hz, and 10kV (basic model) and 20kV (salt spray-proof model) for impulse voltage 1.2/50 s between close phases and phase and ground. The fuse is suitable for connection with terminals up to 16mm² width and 5mm thickness, or with 50mm² max. cable and copper terminals, or a 15x8 max. rigid or flexible bar. This fuse is ideal for applications requiring reliable DC circuit protection.
  • Mersen ABAT Size C DC Fuse (SKU: H1200492)
  • Rated for 1000A and up to 1500VDC (L/R ≤3ms)
  • Compliant with IEC 60269-7 for battery protection
  • Features metric thread and flush ends
  • UL Recognized (File E113357) and CE Marked

Specifications

Amperage Rating
1000 A
Application
Protection of inverters Battery container protection Battery rack / string protection Power Conversion System (PCS) protection Protection of Battery Connection Panel (BCP) DC Systems protection
Body Material
Ceramic
Brand Name
Mersen
Connection
End Contact with Threaded Holes
Connection Material
Silver-Plated Brass
Connection Type
Metric thread Flush Ends
Current Rating
1000 A
DC Voltage Rating
1500 V
Interrupt Rating
250 kA
Mounting
Bolted
Series
ABAT15C
Size
4.63 x x in
Size
117.6 x x mm
Size
Size C
Special Features
Designed for DC applications Dedicated to battery protection Fastest of their category Compactness High Max. Interrupting Rating Several terminals can be provided
Standard
IEC 60 269-7 (standard for battery protection) UL Recognized - UL 248-13 IEC 60 269-4 VSI
Type
Battery Energy Systems
Type Of Indicators
Striker
Voltage Rating
1500 VDC
Package Weight (Imperial)
4.079 lb
Package Weight (Metric)
1.850 kg

Similar Products

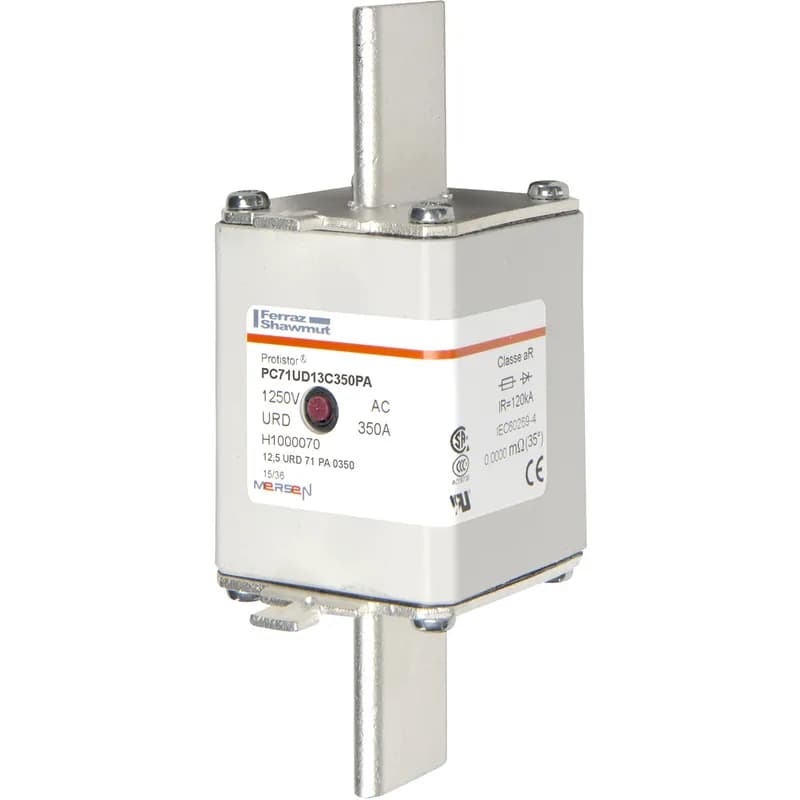

H1000070

Amperage Rating: 350 A

Case: Ceramic

Connection: Plain Blades

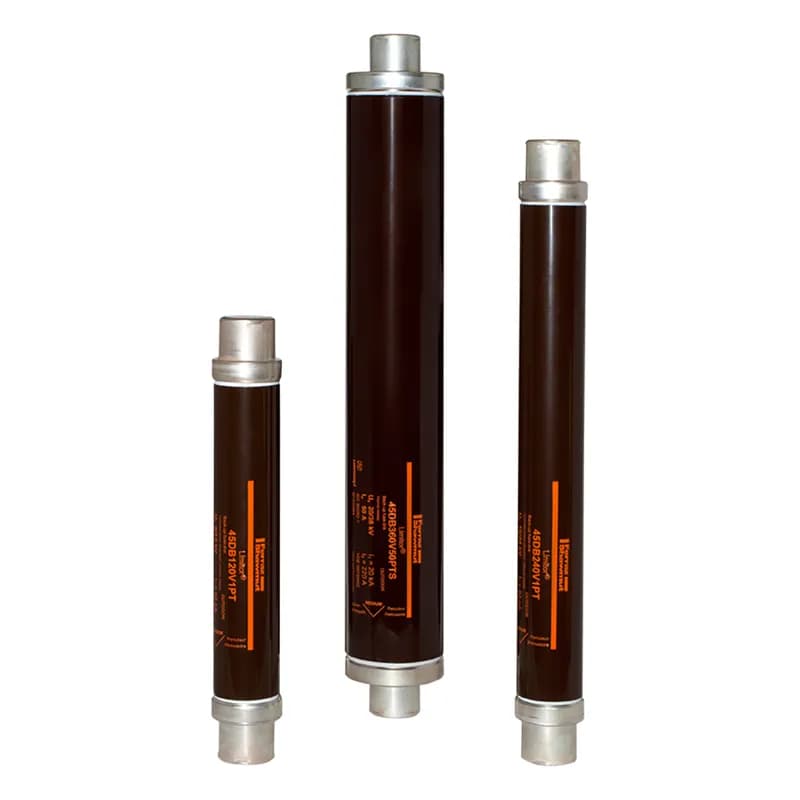

H1000116

Amperage Rating: 4 A

Application: HV Transformer protection

Connection: Cylindrical

H1000139

Amperage Rating: 6.3 A

Application: HV Transformer protection

Connection: Cylindrical

H1000254

Amperage Rating: 16 A

Application: HV Transformer protection

Connection: Cylindrical

H1000277

Amperage Rating: 16 A

Application: HV Transformer protection

Connection: Cylindrical

H1030499

Amperage Rating: 361 A

Application: Protection of transformers

Connection: Plain Blades

You May Also Be Interested In

ABAT Size C, voltage : up to 1500VDC (with L/R≤3ms), Class : aBat, 800A, with Metric thread Flush Ends

F1200490

ABAT Size C, voltage : up to 1500VDC (with L/R≤3ms), Class : aBat, 1250A, with Metric thread Flush Ends

J1200493

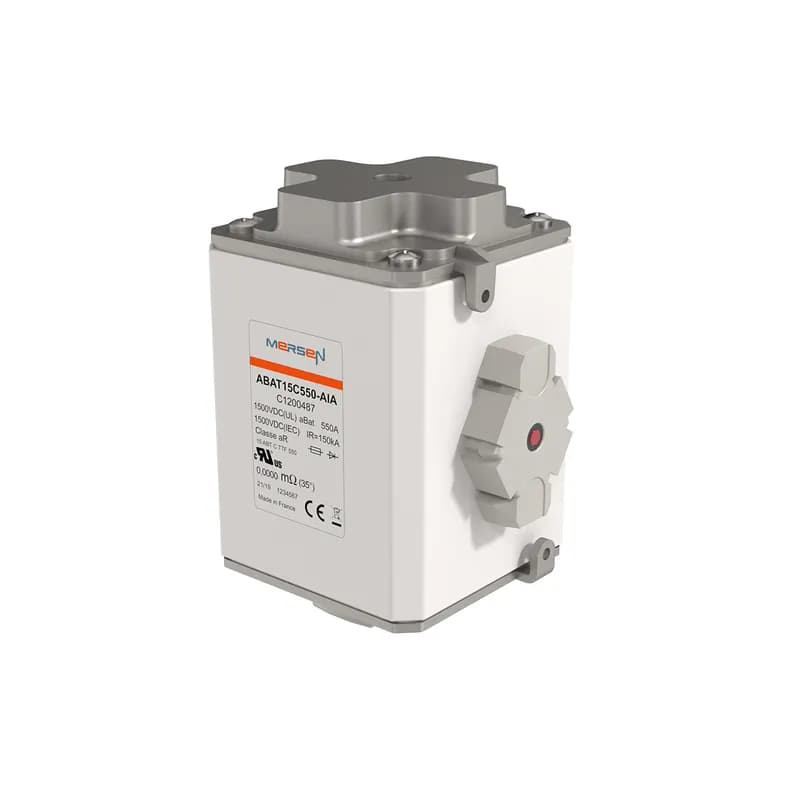

ABAT Size C, voltage : up to 1500VDC (with L/R≤3ms), Class : aBat, 550A, with Metric thread Flush Ends
