Overview
- Accommodates Class CC or midget fuses with 600VAC/DC rating and 30A max current
- Three internal O-rings per pole (blue/red for single/dual pole) for water-resistant sealing
- Captive securing nuts/screws for rapid installation without loose components
- Breakaway feature safely disconnects loads during pole knockdowns; fuses remain encapsulated
- Optional cone-shaped insulator boots provide watertight sealing (breakaway versions include boots standard)
Specifications
Application | Street lighting Parking lot lighting Traffic signaling Sports lighting Boats and marinas Humid/corrosive environments |
Brand Name | Ferraz Shawmut |
Connection Type | Screw Terminal |
Mounting | In-Line |
Poles | Single or Dual Pole |
Series | FSB2 |
Special Features | Breakaway version quickly disconnects line side during pole knockdown in compliance with state and federal highway commission standards 3 O-rings per pole for watertight applications Colored O-rings for quick detection Single and dual poles Accepts midget or class CC fuses Wide assortment of terminal variations High heat, impact resistant insulator Captive nut or screw for quick installations Polarized dual pole provides simultaneous disconnection Permanently installed neutral versions quickly identified by white nuts Environmentally friendly no-lead solder used Highly visible catalog number even with insulation boots installed Wire gauge size identified on insulation boots for quick, accurate trimming |
Type | In-line Fuse Holders |
Voltage Rating | 600 VAC |
Package Dimensions (L x W x H) | 3.772 IN x 1.084 IN x 1.084 IN |
Package Dimensions (L x W x H) | 9.5809 cm x 2.7534 cm x 2.7534 cm |
Package Weight (Imperial) | 0.600 L |
Package Weight (Metric) | 0.272 kg |
FSB1
Mersen's complete line of single and dual pole in-line fuseholders accommodate Class CC fuses. The fuseholders are designed for quick installation. Securing nuts or screws are captive thus speeding installation by reducing the need to locate and assemble loose components in the field. Three internal O-rings per pole seal the fuseholder providing a water-resistant compartment for the fuse. The captive O-rings are colored (blue for single pole and red for dual pole) for quick detection. Optional cone shaped insulator boots can be slipped on to provide a watertight seal (breakaway versions come with boots standard). Both single and dual pole versions have an optional breakaway feature which safely disconnects the load in case of a pole knockdown. Fuses remain safely encapsulated within the watertight fuse holder on the load side. Once the pole has been reinstalled the fuseholder can be easily reconnected. single terminal boot
FEXN-81-81

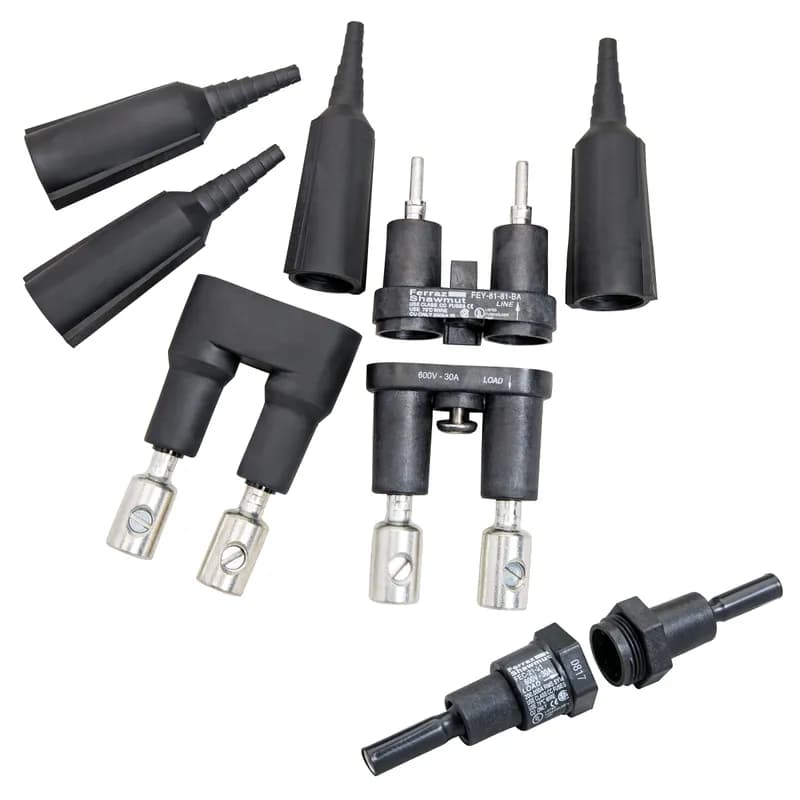

Mersen's complete line of single and dual pole in-line fuseholders with integral neutral link. The fuseholders are designed for quick installation. Securing nuts or screws are captive thus speeding installation by reducing the need to locate and assemble loose components in the field. Three internal O-rings per pole seal the fuseholder providing a water-resistant compartment for the fuse. The captive O-rings are colored (blue for single pole and red for dual pole) for quick detection. Optional cone shaped insulator boots can be slipped on to provide a watertight seal (breakaway versions come with boots standard). Both single and dual pole versions have an optional breakaway feature which safely disconnects the load in case of a pole knockdown. Fuses remain safely encapsulated within the watertight fuse holder on the load side. Once the pole has been reinstalled the fuseholder can be easily reconnected. 600 Volts 30 Amps 2 pole 81-81 series.
D097293
Mersen PS modular 1500V fuseholders offer the highest levels of safety and features for 20x127mm fuses. The PS range is available in 1, 2, 3 or 4-pole units, with or without blown-fuse indicating microswitches in each pole (striker fuse required) 2500 Volts 125 Amps 2 pole with microswitch.H097228
Mersen PS modular 1500V fuseholders offer the highest levels of safety and features for 20x127mm fuses. The PS range is available in 1, 2, 3 or 4-pole units, with or without blown-fuse indicating microswitches in each pole (striker fuse required) 2500 Volts 125 Amps 3 pole .
B1023432
NH-vertical fuse rail BSL Size NH3 690VAC 630A 3-Pole Bus bar system 185 mm With cable connection Screw - M12 insert nutX1023428
NH-vertical fuse rail BSL Size NH1 690VAC 250A 3-Pole Bus bar system 185 mm With cable connection Screw - M10 insert nutA1002294
NH-vertical fuse rail BSL Size NH2 690VAC 400A 3-Pole Bus bar system 185 mm With cable connection Screw - M12 bolts
P220077
Mersen PS modular fuseholders offer the highest levels of safety and features for 27x60mm fuses. The PS range is available in 1, 2, 3 or 4-pole units, with or without blown-fuse indicating microswitches in each pole (striker fuse required) 690 Volts 10 Amps 3 pole with microswitch.
E1002298

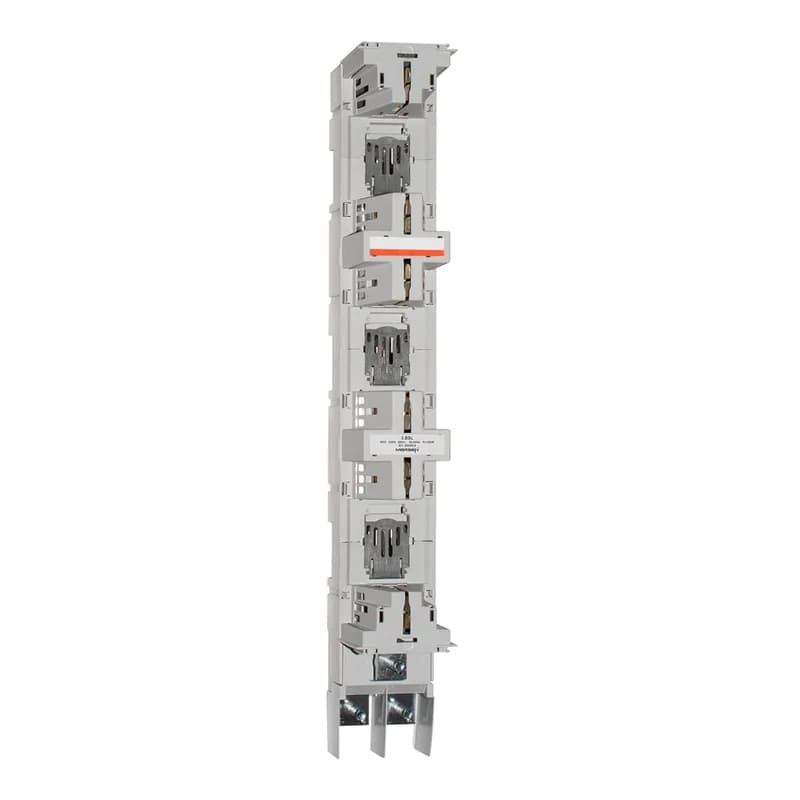

NH-vertical fuse rail BSL Size NH3 690VAC 630A 3-Pole Bus bar system 185 mm With cable connection Screw - M12 boltsZ1023430
NH-vertical fuse rail BSL Size NH2 690VAC 400A 3-Pole Bus bar system 185 mm With cable connection Screw - M12 insert nutE097294
Mersen PS modular 1500V fuseholders offer the highest levels of safety and features for 20x127mm fuses. The PS range is available in 1, 2, 3 or 4-pole units, with or without blown-fuse indicating microswitches in each pole (striker fuse required) 2500 Volts 125 Amps 3 pole with microswitch.Frequently Asked Questions about Mersen
