Contact for Pricing
Minimum Qty: 10
Multiplier: 10
*Contact for lower quantities*
Overview

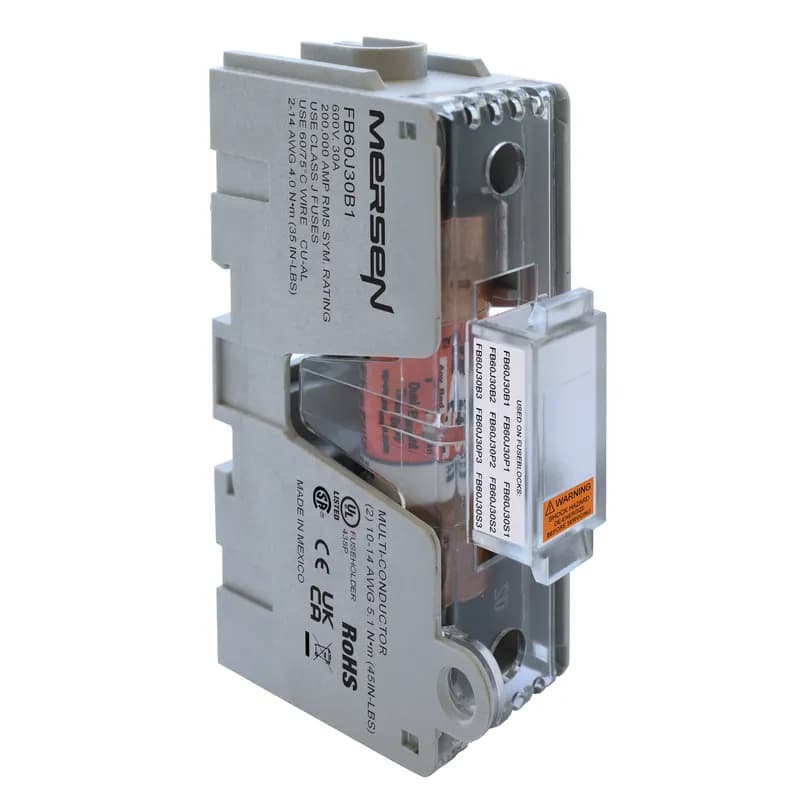

- Class J Fuse Block, 600VAC/VDC, 30A
- 1-Pole Configuration
- Box Connectors for Stranded/Solid Wire
- Generation 2, Compact, DIN-rail Mountable

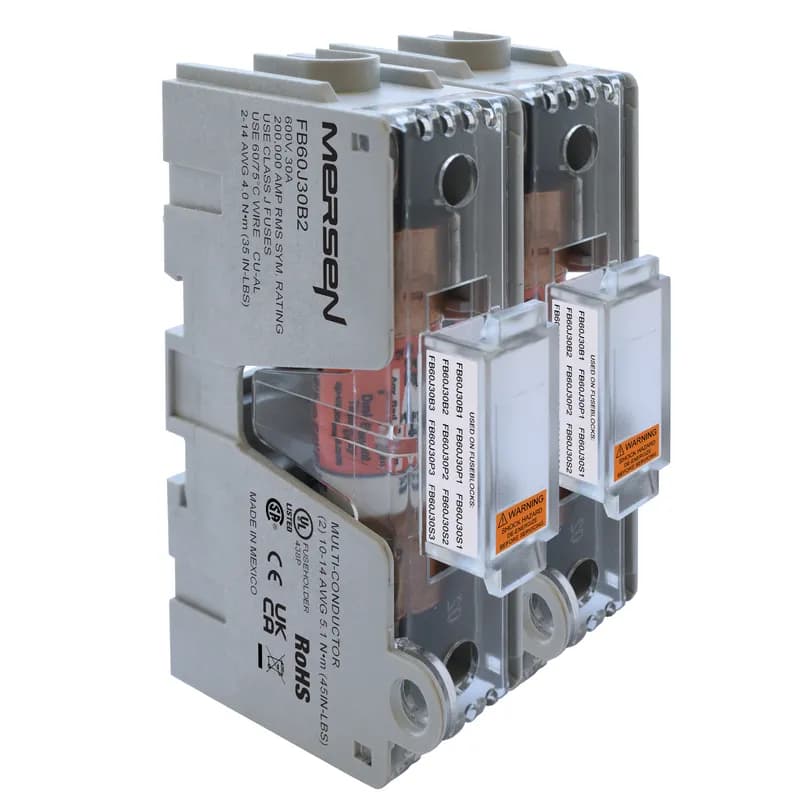

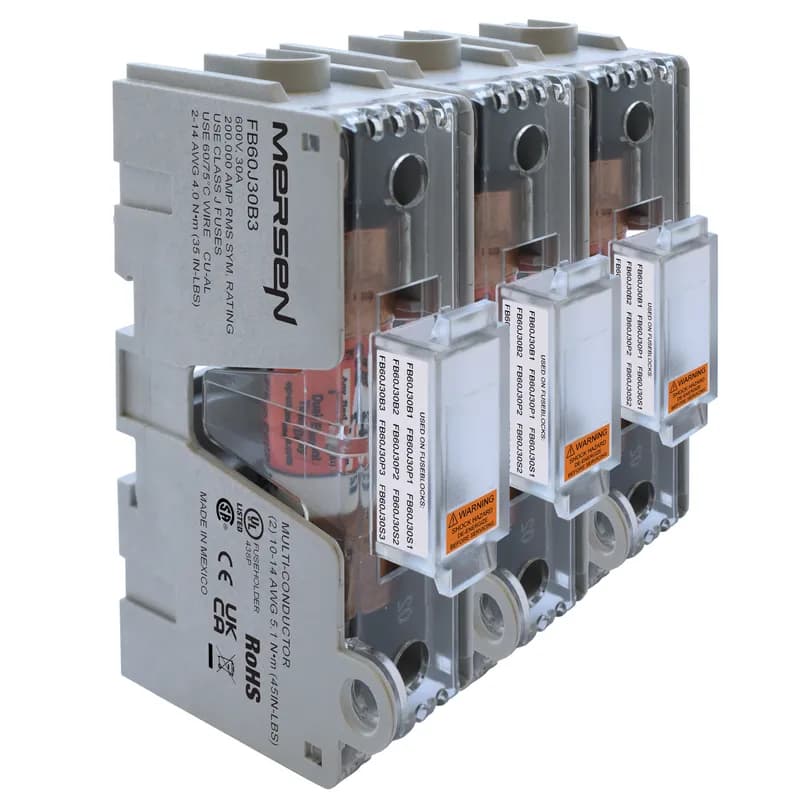

- Dovetail Nesting for Multi-Pole Assembly
Specifications
AC Voltage Rating | 600 V |
Amperage Rating | 30 A |
Application | Branch circuits Control panels Load centers Lighting, heating, & general loads |
Brand Name | Mersen |
Class | Class J |
Connection | Box |
Connection Type | Box Connector |
Connection Type | Screw, Pressure Plate, Box Connectors |
Current Rating | 30A |
DC Voltage Rating | 600 V |
IP Rating | IP20 |
Material | Glass Filled Polycarbonate |
Maximum Operating Temperature | 80 C |
Mounting | Direct Screw Mount |
Mounting Type | DIN-rail mountable |
Number Of Poles | 1 |
Poles | 1-pole |
Series | Generation 2 |
Size | 4.15 x 1.18 x 2.51 in |
Size | 105.41 x 29.972 x 63.754 mm |

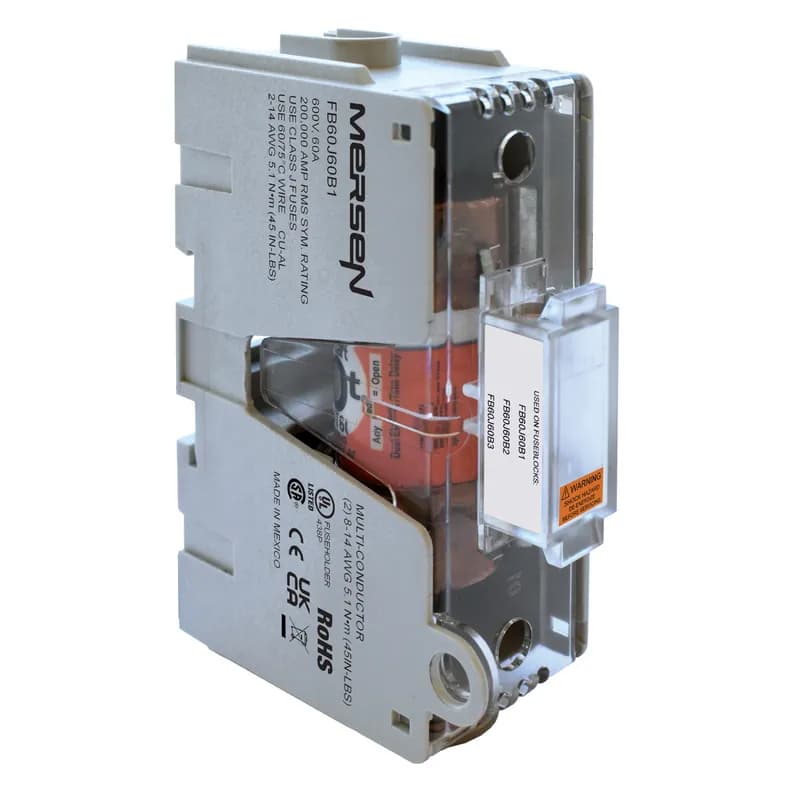

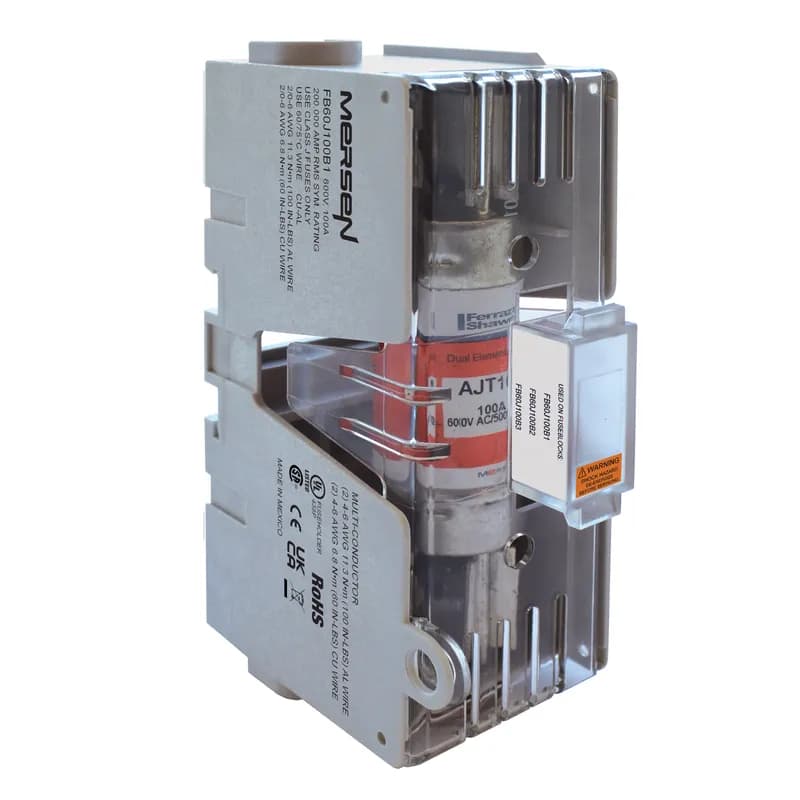

Special Features | DIN-rail mountable, 600V, 30-100A fuse bases 30A is available with box, screw, and pressure plate terminations 60A & 100A is available with box only Fresh new Mersen gray color for fuse base Dovetail design for interlocking configuration of 2-pole and 3-pole bases Unique molding around the termination to accommodate hinged cover and for increased safety Built-in lockout/tagout feature IP20 finger safe New clear covers with indicators for safety and visual inspections Multi-connector wiring options |
Standard | All class J fuse blocks meet the requirements of UL4248 (formerly UL512) UL listed Guide IZLT, File E52283 CSA certified class 6225, File 32169 |
Type | UL/CSA Fuse Bases |
Voltage Rating | 600VAC/600VDC |
Voltage Rating | 600VAC 600VDC |
Package Dimensions (L x W x H) | 4.15 in x 1.18 in x 2.51 in |
Package Dimensions (L x W x H) | 105.41 mm x 29.972 mm x 63.754 mm |
Package Weight (Imperial) | 0.180 lb |
Package Weight (Metric) | 0.082 kg |
