Contact for Pricing
Minimum Qty: 3
Multiplier: 3
*Contact for lower quantities*
Overview
- Rated for 600VAC/VDC and 100A continuous current
- Supports Class J fuses from 0-100A
- Box connectors for 4-6 AWG Cu-Al stranded or solid wire
- Torque specs: 11.3 N-m (Al), 6.8 N-m (Cu)
- Compact 3.8" A-dimension design for DIN-rail mounting
Specifications
AC Voltage Rating | 600 V |
Amperage Rating | 100 A |
Application | Branch circuits Control panels Load centers Lighting, heating, & general loads |
Brand Name | Mersen |
Class | Class J |
Connection | Box |
Connection Type | Screw, Pressure Plate, Box |
Connection Type | Screw, Pressure Plate, or Box Connectors |
Current Rating | 100A |
DC Voltage Rating | 600 V |
IP Rating | IP20 |
Material | Glass Filled Polycarbonate |
Maximum Operating Temperature | 80 C |
Mounting | Direct Screw Mount |
Mounting Type | Open-style Mounting, DIN-rail Mountable |
Mounting Type | DIN-Rail |
Number Of Poles | 2 |
Poles | 2 |
Series | FB60J |
Series | Generation 2 |
Size | 5.35 x 3.8 x 2.88 in |
Size | 135.89 x 96.52 x 73.152 mm |
Special Features | DIN-rail mountable, 600V, 30-100A fuse bases 30A is available with box, screw, and pressure plate terminations 60A & 100A is available with box only Fresh new Mersen gray color for fuse base Dovetail design for interlocking configuration of 2-pole and 3-pole bases Unique molding around the termination to accommodate hinged cover and for increased safety Built-in lockout/tagout feature IP20 finger safe New clear covers with indicators for safety and visual inspections Multi-connector wiring options |
Standard | All class J fuse blocks meet the requirements of UL4248 (formerly UL512) UL listed Guide IZLT, File E52283 CSA certified class 6225, File 32169 |
Type | UL/CSA Fuse Bases |
Voltage Rating | 600VAC/600VDC |
Package Dimensions (L x W x H) | 5.35 in x 3.8 in x 2.88 in |
Package Dimensions (L x W x H) | 135.89 mm x 96.52 mm x 73.152 mm |
Package Weight (Imperial) | 0.920 lb |
Package Weight (Metric) | 0.417 kg |
FBC60J60

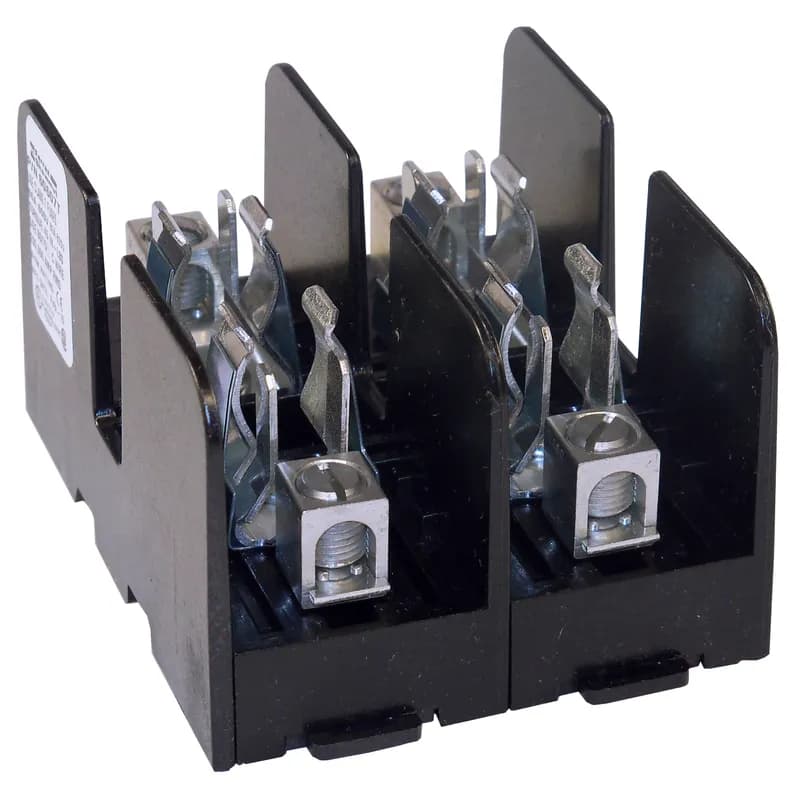

Mersen’s FBC60J60 is a Generation 2 open-style Class J fuse block designed for 0-100A, 600V fuses. It supports screw, pressure plate, and box connectors for stranded or solid wire. The compact DIN-rail mountable design features dovetail nesting for multipole field assembly. IP20 rated when paired with Mersen’s dead front covers. Ideal for industrial control panels, motor protection, and branch circuit applications.
FBC60J60I
The Mersen FBC60J60I is a Generation 2 open style Class J fuse block designed for 600V applications with fuse ratings from 0-100A. This compact unit offers versatile wiring options with screw, pressure plate, and box connectors, accommodating both stranded and solid wire. For efficient panel building, the FBC60J60I features DIN-rail mountability and dovetail nesting for easy multipole field assembly. When paired with Mersen's dead front covers, the fuse bases achieve an IP20 rating, ensuring enhanced safety. Manufactured in the USA, this fuse block provides reliable circuit protection for industrial equipment.
Frequently Asked Questions
What voltage ratings does this fuse block support?
The FB60J100B2 supports 600VAC and 600VDC applications.
What is the torque specification for aluminum wire?
The torque specification for aluminum wire is 11.3 N-m (100 in-lbs).
What is the A-dimension of this fuse block?
The A-dimension of the FB60J100B2 is 3.8 inches.
What wire sizes are compatible with this fuse block?
The box connectors accept 4-6 AWG copper or aluminum stranded or solid wire.
Does this fuse block support multipole field assembly?
Yes, the dovetail nesting design allows for easy multipole field assembly.
Can this fuse block be mounted on a DIN rail?
Yes, the FB60J100B2 features a compact design suitable for DIN-rail mounting.
What safety rating does this fuse block achieve with dead front covers?
When paired with Mersen dead front covers, the FB60J100B2 achieves an IP20 rating.
How to Install the Mersen FB60J100B2 Fuse Block
Step-by-step guide for mounting and wiring the FB60J100B2 Class J fuse block
Estimated time: 15m
Tools needed:
Screwdriver, Torque screwdriver
Supplies needed:
Mounting screws, Class J fuse (0-100A), Wire strippers
- Mount the fuse block
Secure the FB60J100B2 to a DIN rail or open-style mounting surface using the provided mounting points.
- Prepare the wires
Strip the ends of the 4-6 AWG copper or aluminum wires to the appropriate length for the box connectors.
- Connect the wires
Insert the wires into the box connectors and tighten to the specified torque: 11.3 N-m for aluminum, 6.8 N-m for copper.
- Install the fuse
Insert a Class J fuse rated 0-100A into the fuse block.
- Attach dead front cover (optional)
For enhanced safety, attach a Mersen dead front cover to achieve an IP20 rating.
