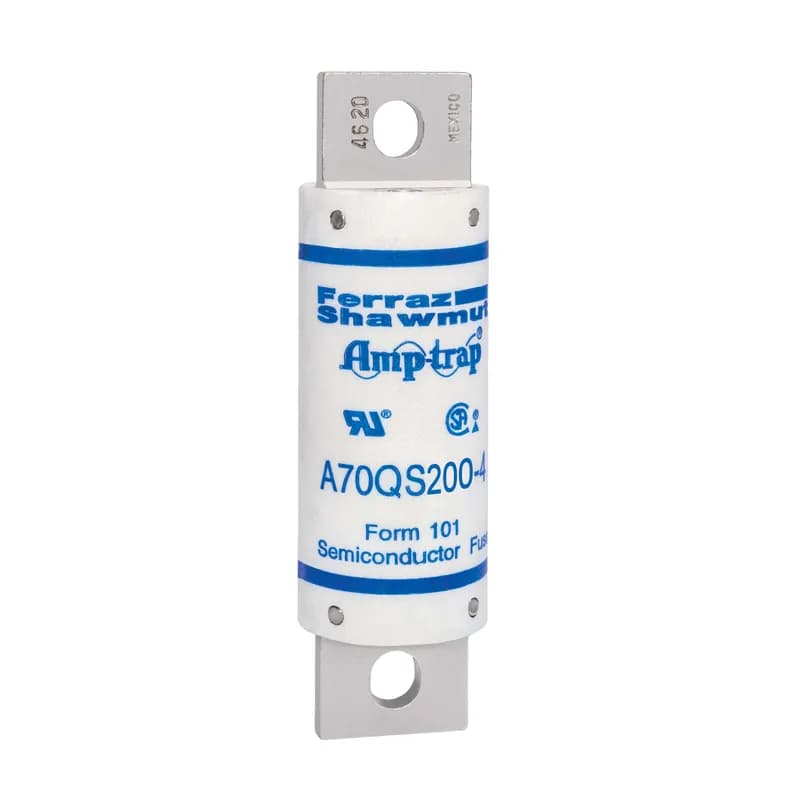

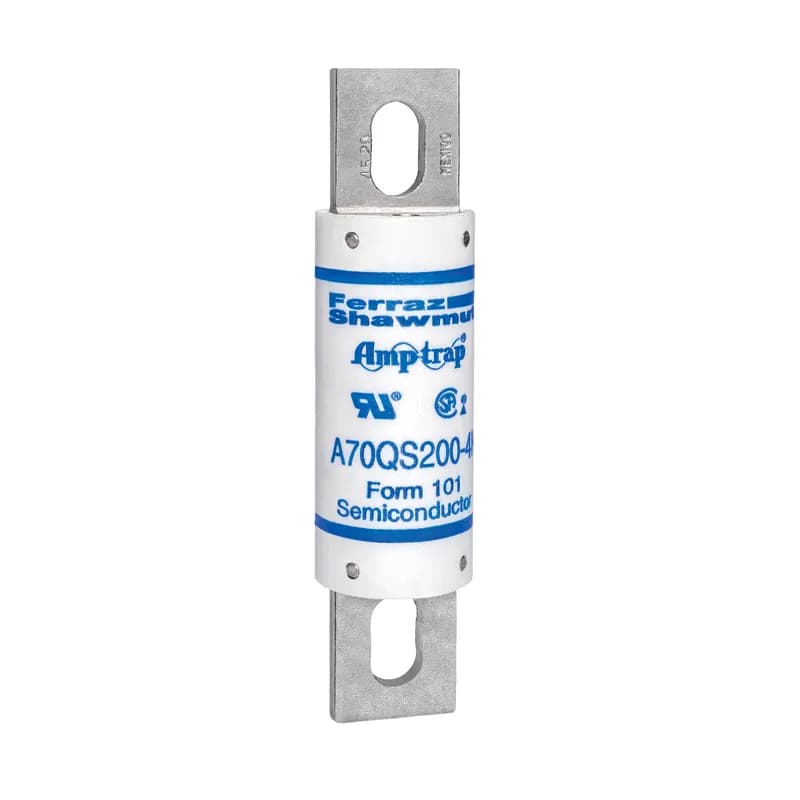

Overview
- 700VAC/700VDC voltage rating for versatile AC/DC applications
- 150A current rating with bolted blade connection for secure mounting
- 200kA (AC) and 100kA (DC) interrupting rating for high fault current protection
- Lower I²t for improved equipment protection and reduced thermal stress
- UL recognized (File E60314) and CSA certified for compliance and reliability
Specifications
AC Voltage Rating | 700 V |
Amperage Rating | 150 A |
Application | Protection of 700V or less motor drives, UPS, inverters, etc. |
Brand Name | Mersen |
Case | GMG |
Case Material | GMG |
Connection | Blade |
DC Voltage Rating | 700 V |
Mounting | Bolted |
Mounting | Bolt |
Size | 4.38 x 1.22;111.252 x 30.988 in;mm |
Size | 4.38 x 1.22 in |
Size | 111.252 x 30.988 mm |
Special Features | Very Low I2t for improved protection of equipment Superior cycling ability for long, reliable life on high cyclic loading Low watts loss for cooler operation 700V AC/DC rating gives greater design versatility Ultra compact sizes allow down-sizing of existing equipment |
Standard | UL recognized component, AC/DC UL file E60314 AC: guide no. JFHR2 DC: tested to UL standard 198L parameters (35-800A) CSA certified File LR 12636 |
Sub Brand | Amp-Trap® |
Type | Round Body High-Speed Fuse-Links AC Protection |
Voltage Rating | 700 V |
Voltage Rating | 700 V V |
Package Dimensions (L x W x H) | 4.38 in x 1.22 in x 1.22 in |
Package Dimensions (L x W x H) | 111.252 mm x 30.988 mm x 30.988 mm |
Package Weight (Imperial) | 0.510 lb |
Package Weight (Metric) | 0.231 kg |
