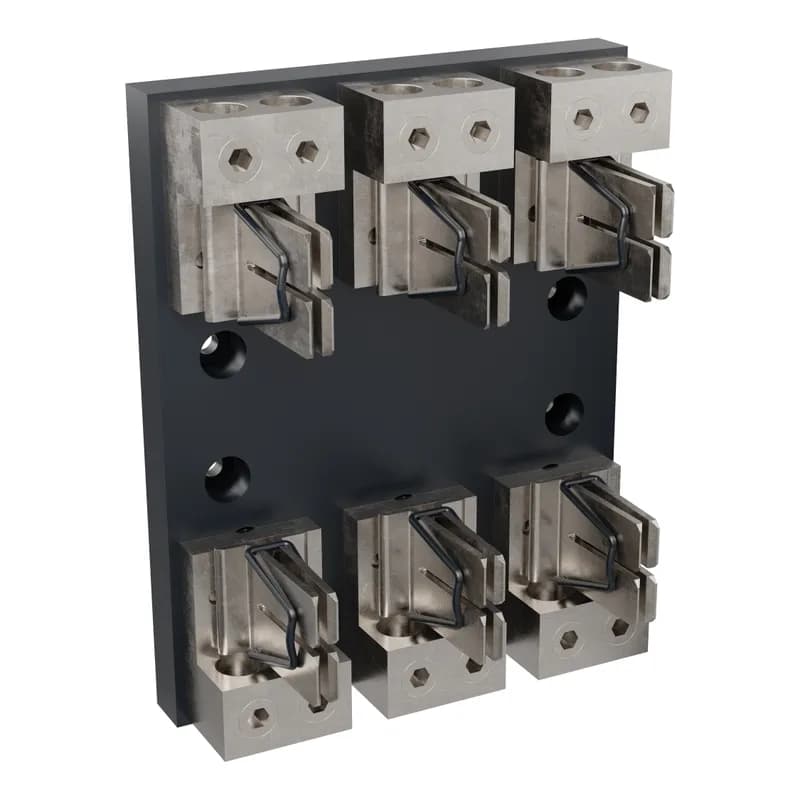

Mersen 64063J - Fuse Block 600VAC 600VDC Class J 400A 3-Pole Copper Box In-Line Clip
More images

Mersen 64063J Fuse Block 600VAC 600VDC Class J 400A 3-Pole Copper Box In-Line Clip

Alternate Item Number: 64063J

UPC: 782001751999


Documents & Media
Line Drawing3D CAD Model (STEP)3D CAD Model (STEP)Specification Sheet

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The Mersen 64063J is a 400A Class J fuse block designed for 600VAC/600VDC applications. This 3-pole fuse block features copper box in-line clips for stranded or solid copper conductors ranging from 350kcmil to #6. Engineered for compatibility with Class J fuses (AJT, A4J, HSJ), the 64063J meets UL4248 (formerly UL512) and CSA Class 6225 standards, with a Short Circuit Current Rating (SCCR) of 200kA. The tin-plated copper fuse clips provide high conductivity, while the spring-reinforced design enhances contact stability. With a torque rating of 275 in-lb, this fuse block is ideal for industrial and commercial power distribution systems requiring reliable overcurrent protection and high dielectric performance.
  • 400A current rating for high-power applications
  • 600VAC/600VDC voltage rating with 200kA SCCR
  • Copper box in-line clips for stranded or solid copper conductors (350kcmil to #6)
  • Molded phenolic insulator with dielectric strength >2500V
  • Spring-reinforced tin-plated copper fuse clips for stable contact

Specifications

AC Voltage Rating
600 V
Amperage Rating
400 A
Brand Name
Mersen
Class
Class J
Connection
Box In-Line Clip
DC Voltage Rating
600 V
Material
Phenolic
Maximum Operating Temperature
80 °C
Maximum Operating Temperature
80 C
Mounting
Direct Screw Mount
Number Of Poles
3-pole
Phase
3
Size
10 x 10.5 x 3.62 in
Size
254 x 266.7 x 91.948 mm
Special Features
Class J Blocks (600V) use with AJT, A4J, HSJ
Standard
All class J fuse blocks meet the requirements of UL4248 (formerly UL512) UL listed Guide IZLT, File E52283 CSA certified class 6225, File 32169
Type
UL/CSA Fuse Bases
Voltage Rating
600 VAC
Package Dimensions (L x W x H)
10 in x 10.5 in x 3.62 in
Package Dimensions (L x W x H)
254 mm x 266.7 mm x 91.948 mm
Package Weight (Imperial)
16.450 lb
Package Weight (Metric)
7.462 kg
Fuse Block 600VAC 600VDC Class R 400A 3-Pole Box Side-Clip

64003R

Fuse Block 600VAC 600VDC Class R 400A 3-Pole Box Side-Clip
POWER DISTRIBUTION BLOCK COVER

LCH133-1

POWER DISTRIBUTION BLOCK COVER
DR4/8 SF DIN2

1SNA110368R1200

DR4/8 SF DIN2
Fuse Block 250VAC 250VDC Class R 60A 2-Pole Copper Box

20657R

Fuse Block 250VAC 250VDC Class R 60A 2-Pole Copper Box
Fuse Block 600VAC 600VDC Class H/K 30A Adder Pressure Plate with Reinforced Clip

60325

Fuse Block 600VAC 600VDC Class H/K 30A Adder Pressure Plate with Reinforced Clip
Fuse Block 750VAC 750VDC 30A 2-Pole Copper Box

70357

Fuse Block 750VAC 750VDC 30A 2-Pole Copper Box
Fuse Block 250VAC 250VDC Class R 400A 3-Pole Box Side-Clip

24003R

Fuse Block 250VAC 250VDC Class R 400A 3-Pole Box Side-Clip
Fuse Block 600VAC 600VDC Class H/K 60A Adder Box

60600

Fuse Block 600VAC 600VDC Class H/K 60A Adder Box

Frequently Asked Questions

What voltage ratings does the 64063J support?

The 64063J supports 600VAC and 600VDC voltage ratings.

What fuse types are compatible with the 64063J?

The 64063J is compatible with Class J fuses including AJT, A4J, and HSJ.

What conductor sizes can the 64063J accommodate?

The 64063J accommodates stranded or solid copper conductors from 350kcmil to #6.

What is the torque rating for the 64063J?

The torque rating for the 64063J is 275 in-lb.

What is the Short Circuit Current Rating (SCCR) of the 64063J?

The 64063J has a Short Circuit Current Rating (SCCR) of 200kA.

What standards does the 64063J meet?

The 64063J meets UL4248 (formerly UL512) and CSA Class 6225 standards.

What is the dielectric strength of the 64063J insulator?

The insulator has a dielectric strength exceeding 2500V.

How many poles does the 64063J have?

The 64063J is a 3-pole fuse block.
