Contact for Pricing
Minimum Qty: 10
Multiplier: 10
*Contact for lower quantities*

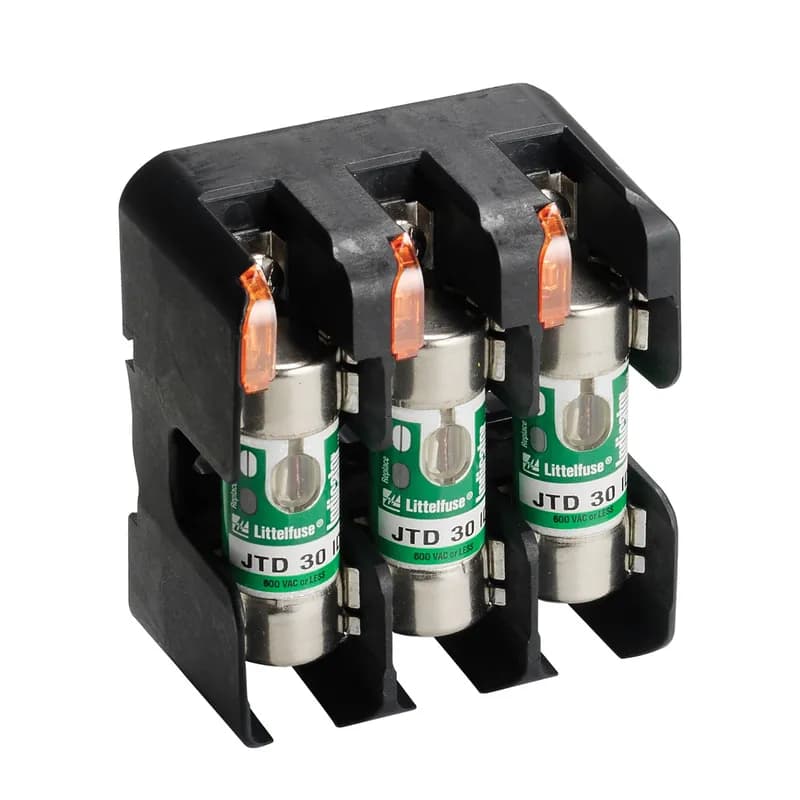

Overview
- 600VAC/DC Voltage Rating
- 30 Ampere Current Rating
- Class J Fuse Block
- Adder Box for Modular Expansion
- GFPC Insulator
- Compatible with Copper and Aluminum Conductors (#2 - #14 AWG)
- UL Listed (File E52283)
- CSA Certified (File 32169)
- High Conductivity Tin-Plated Copper Fuse Clips
Specifications
AC Voltage Rating | 600 V |
Amperage Rating | 30 A |
Brand Name | Mersen |
Class | Class J |
Connection | Box |
Connection Type | Screw, pressure plate, box, or stud connectors |
Current Rating | 30A |
DC Voltage Rating | 600 V |
Material | Glass-filled polycarbonate (GFPC) or phenolic |
Material | Glass Filled Polycarbonate |
Maximum Operating Temperature | 80 C |
Mounting | Direct Screw Mount |
Number Of Poles | 1 |
Phase | 1 |
Poles | 1-, 2-, or 3-pole |
Series | Class J |
Size | 4 x 1.5 x 2.12 in |
Size | 101.6 x 38.1 x 53.848 mm |
Special Features | Class J Blocks (600V) use with AJT, A4J, HSJ |
Standard | All class J fuse blocks meet the requirements of UL4248 (formerly UL512) UL listed Guide IZLT, File E52283 CSA certified class 6225, File 32169 |
Type | UL/CSA Fuse Bases |
Voltage Rating | 600 VAC |
Package Dimensions (L x W x H) | 4 in x 1.5 in x 2.12 in |
Package Dimensions (L x W x H) | 101.6 mm x 38.1 mm x 53.848 mm |
Package Weight (Imperial) | 0.200 lb |
Package Weight (Metric) | 0.091 kg |
Frequently Asked Questions
What is the voltage rating for the Mersen 60300J fuse block?
The Mersen 60300J fuse block is rated for 600VAC/DC.
What is the amperage rating of this Class J fuse block?
This Mersen Class J fuse block has an amperage rating of 30 Amperes.
What type of conductors can be used with the 60300J adder box?
The 60300J adder box is compatible with copper and aluminum conductors ranging from #2 to #14 AWG.
What standards does the Mersen 60300J fuse block meet?
The Mersen 60300J fuse block is designed to meet UL4248 (formerly UL512) standards.
Is the Mersen 60300J fuse block UL listed and CSA certified?
Yes, the Mersen 60300J fuse block is UL listed under File E52283 and CSA certified under File 32169.
What is the purpose of an 'adder box' fuse block?
An 'adder box' fuse block, like the Mersen 60300J, allows for modular expansion of multi-pole fuse block configurations.
