Overview

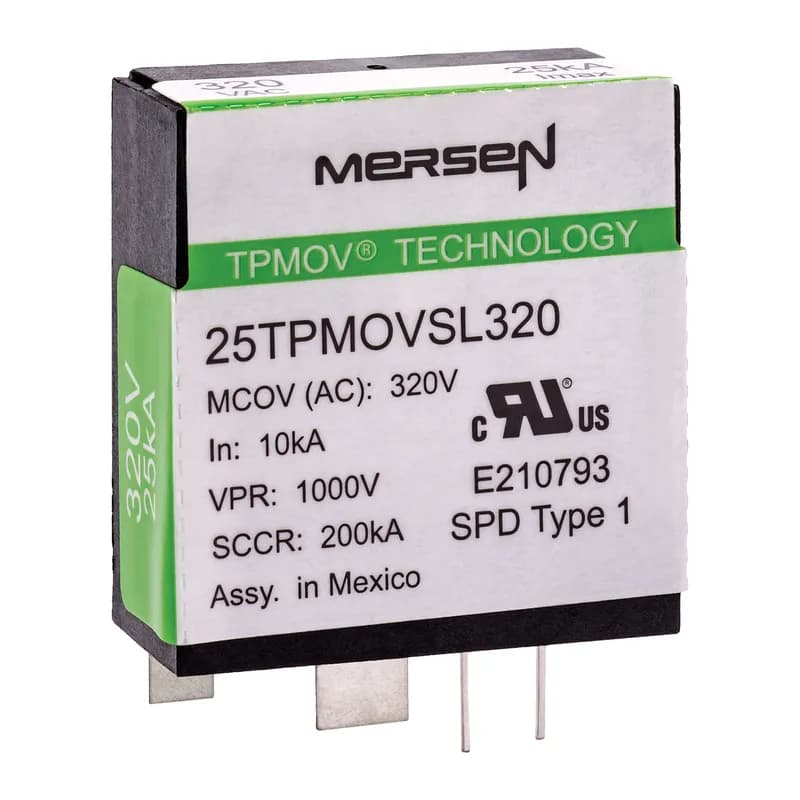

- Patented TPMOV® (Thermally Protected Metal Oxide Varistor) technology
- Eliminates common destructive failure modes of standard MOVs
- Integrated voltage clamping device and status monitoring disconnect
- Arc shield ensures secure disconnection during overvoltage events
- Visual pin indicator and normally open microswitch for remote indication
Specifications
Application | Surge protective devices and systems AC / DC distribution systems High voltage power supplies Telecommunications equipment Motor control systems Computer related products PLC applications Power transfer switches |
Application | For OEM design and build |
Brand Name | Mersen |
Connection | Solder |
Connection Type | Short Leads |
Frequency Rating | 50/60 HZ |
Material | Metal Oxide Varistor with Thermally Protected Mechanism |
Material | PET (Polyethelene Terphthalate) |
Mounting | PCB Mount |
Operating Temperature, Maximum | 185 F |
Operating Temperature, Maximum | 85 C |
Operating Temperature, Minimum | -40 F |
Operating Temperature, Minimum | -40 C |
Series | TPMOV7 |
Short Circuit Rating | 200 kA |
Short-Circuit Rating | 200 kA |
Size | 2.35 x 1.69 x 0.63;59.69 x 42.926 x 16.002 in;mm |
Special Features | Industry-leading TPMOV technology available in 50kA and 75kA surge capacities Consistent footprint with 25–40mm MOVs Built-in visual/remote indication optional No additional overcurrent protective device (fuses) required |
Standard | ANSI/UL 1449 5th Edition, Type 1 Component Assembly SPD, File E210793 RoHS Compliant |
Type | Thermally Protected MOV (TPMOV) |
Type | TPMOV (Thermally Protected MOV) |
Type Of Indicators | Microswitch |
UL SPD Type | Type 1 Component Assembly |
Voltage Rating | 550 VAC |
Package Dimensions (L x W x H) | 2.35 IN x 1.69 IN x 0.63 IN |
Package Dimensions (L x W x H) | 5.969 cm x 4.2926 cm x 16.002 mm |
Package Weight (Imperial) | 0.120 L |
Package Weight (Metric) | 0.054 kg |
